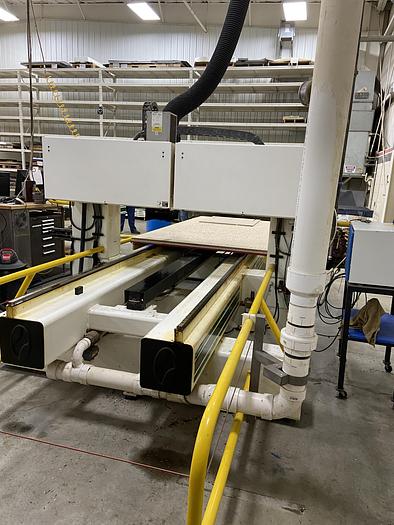

2009 C.R. Onsrud 122S25 CNC Router

2009 C.R. Onsrud 122S25 CNC Router

Contact us for price

Grand Rapids, MI

orCall 616-308-9800

Description

C.R. ONSRUD MODEL 122S18 “Single Table” CNC ROUTER

(122"X74” axis travel) - with: Thick Cast-Iron Fixed Bridge & Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Single Moving Table Design with 3600" per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 8' x 24' footprint, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, 4-Pole, 13.5Kw, 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, 12 TOOL – AUTOMATIC TOOL CHANGER with two (2) HSK tool holders included, SINGLE ALUMINUM TABLE, with full table coverage, functions as a single 122" x 61" table, with 2 independently controlled 60” x 60” vacuum zones. Each zone has low vacuum sensing safety shut-off with override capability. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems. All tables include pressure sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable.

HSK-63 Spindle Taper & Tool Changer Adapter Upgrade - This Upgrade from ISO-30 Taper Spindle & Tool Changers Provides up to 5 Times the clamping force, & allows the use of Router Tooling Weighing up to 2-1/2 Times the weight & measuring up to 2-1/2 Times the diameter

Four Pole Spindle Upgrade - (Doubles the spindle’s internal electrical poles which can up to double the available rotational torque at given horsepower & increases usable horsepower throughout the curve. Spindle does not need to work as hard to do the same work resulting in increased spindle life.

Continuous Production High Speed – High Accuracy Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy

12 Tool – Dynamic Automatic Rotary Tool Changer Upgrade – Upgrade to Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. You may require C-Axis or Aggregate Tool Changer option to hold some larger or non-standard aggregates – (w/2 free HSK-63 tool holders)

Pneumatic Controlled Vacuum Switches – (One for each table or zone). Controlled via pull switches on AMCB&R equipped machines. Controlled via either touch screen or M-code on OSAI machines.

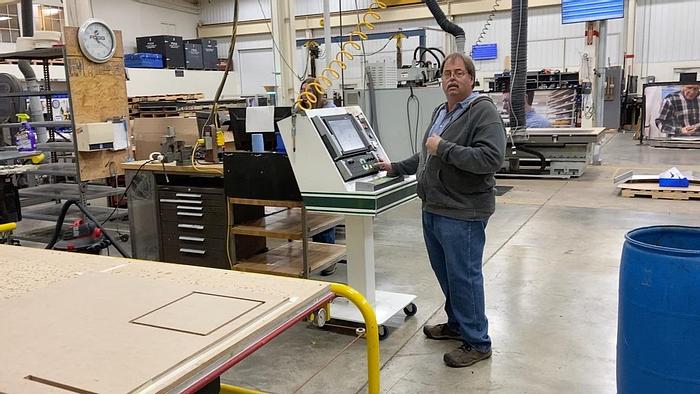

Vortex Dust Transition System – Uniquely Designed Integrated Dust Extraction hood pulls chips away from the spindle’s nose & up a separate chamber & hood that is fully integrated & working with spindle by-pass cooling air to create a venturi-type effect that more effectively removes chips from the machining process. (Appropriately sized dust transition also provided for connecting to your dropped-in flex hose) 8” transition for router head only, standard machines. 12” if drilling block, boring block, retrofit kit, or c-axis is added Onsrud AMC-B&R Handheld with VNC PC Front Link - Automatic Handheld Machine Control System, 4 port Ethernet Connection, USB connectivity, Serial connectivity, & Onsrud’s Unique VNC-PC Front Link. The Integrated VNC-PC Front software & interface is onboard and included to allow a user provided PC to be easily & seamlessly connected without compromising reliability, functionality, or safety. Selection of the optional OSAI Controller System Upgrade Replaces this standard controller system.

Specifications

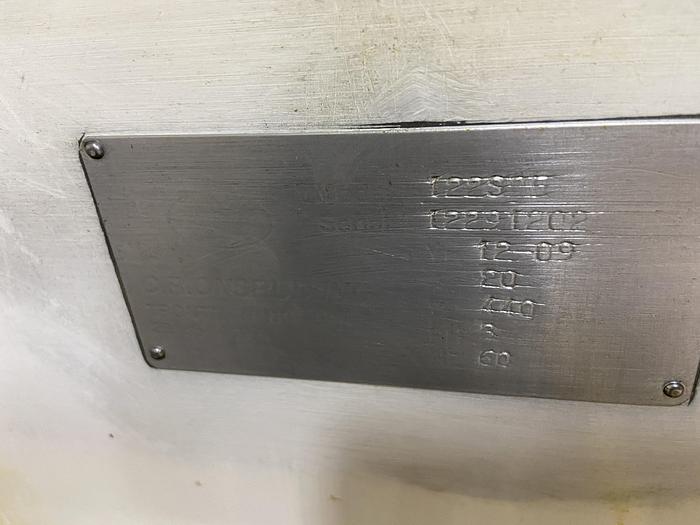

ManufacturerC.R. Onsrud
Model122S25 CNC Router
Year2009
ConditionUsed
