Thermwood C40 CNC Router

Thermwood C40 CNC Router

$8,000 (USD)

Grand Rapids, MI

orCall 616-308-9800

Description

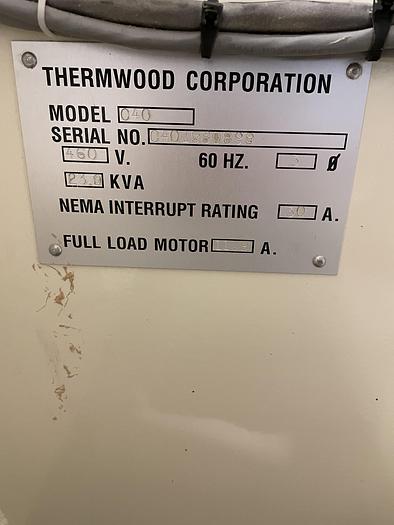

  • 460 Volt
  • 3 phase

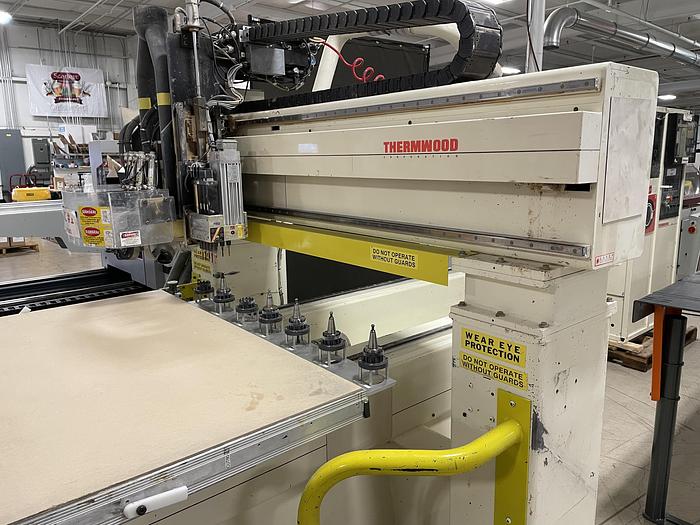

5′ x 8′ Moving table machine in a front-to-back configuration with a single zone vacuum plenum, and manual material stops around the table perimeter.

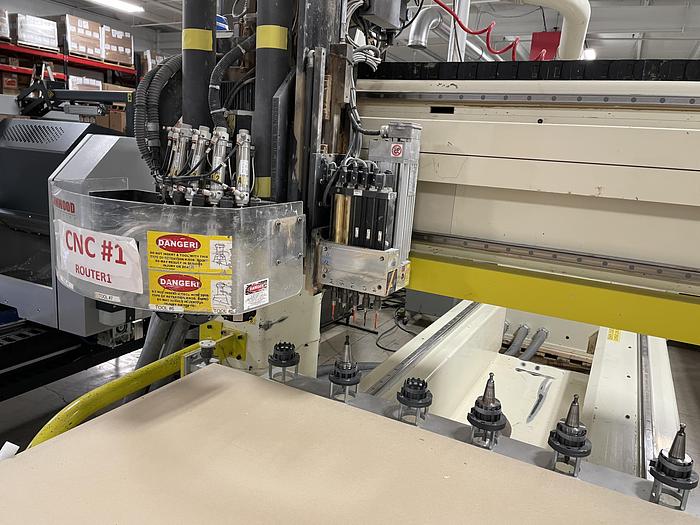

Equipped with: (1) 10 HP HSD BT-30 Type, push button (see below upgrade), quick change routing spindle, variable spindle speed from 3,000 – 24,000 RPM.

· Features: High performance closed loop SEIMENS AC Servo motors driving precision ball screws on all axes with feed speeds up to 1,200 IPM on the X- & Y-axis and 600 IPM on the Z-axis; way & ball screw bearings serviced by an automatic lubrication system.

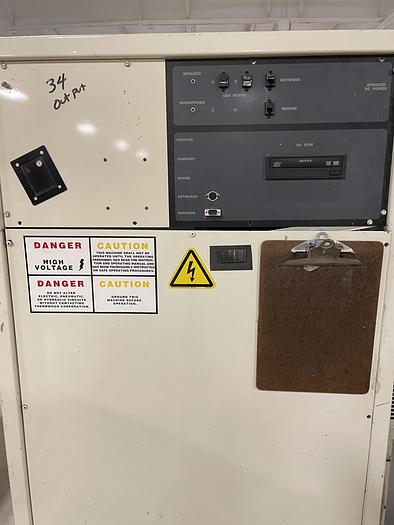

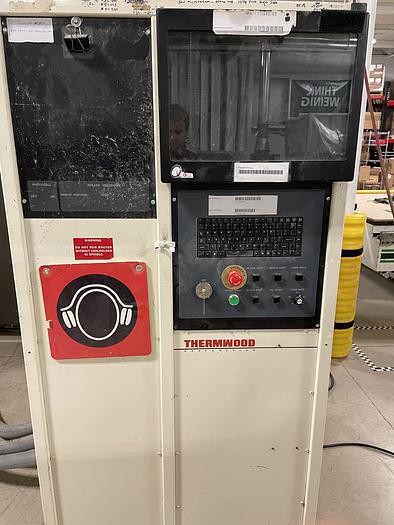

· Controller: THERMWOOD “91000” PC Based, OS2 Control, 3-axis simultaneous motion, hand held programmer with pulse generator, 14″ color monitor, 20.4 GB hard drive, CD ROM drive, 3-1/2″ floppy disk drive, 85-key/101-emulation Qwerty keyboard for data entry, network card, and RS-232 port for PC communications, feed rate & spindle speed override; mounted in an air conditioned Nema rated control cabinet.

$ Call for Pricing


Specifications

ManufacturerThermwood
ModelC40 CNC Router
ConditionUsed
