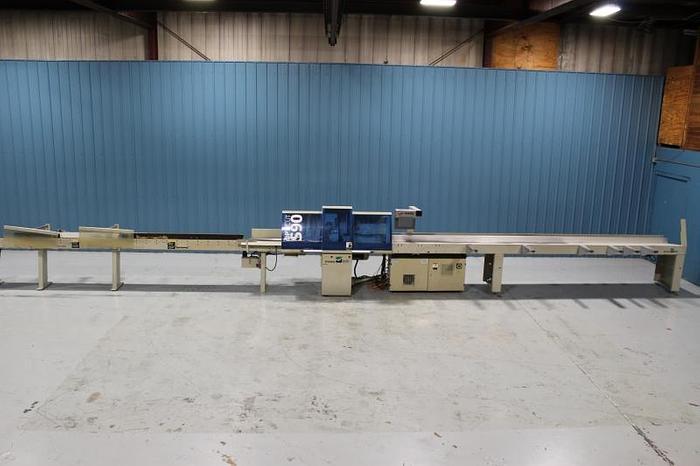

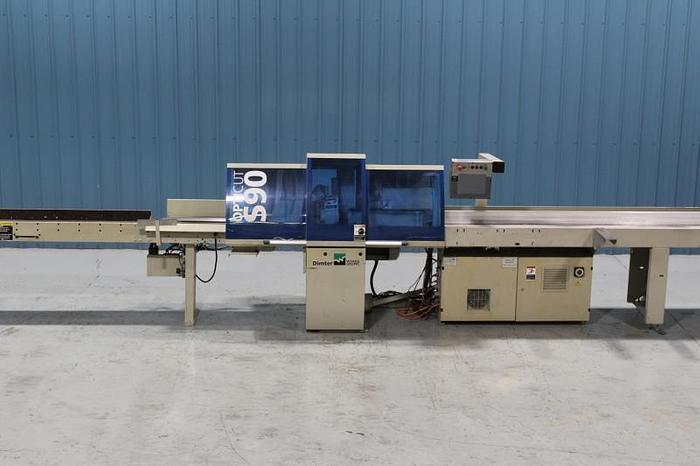

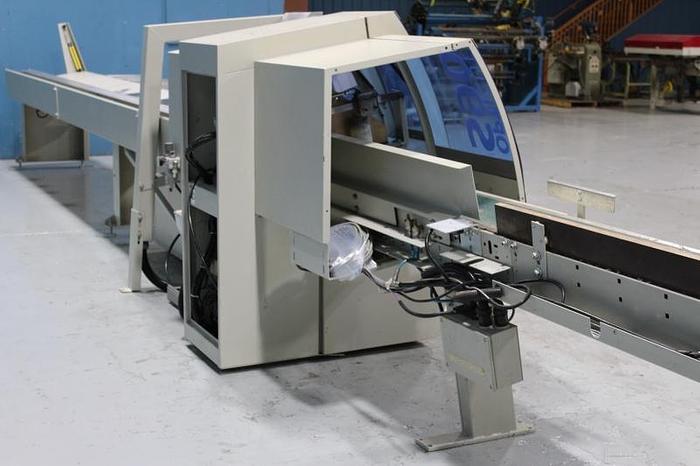

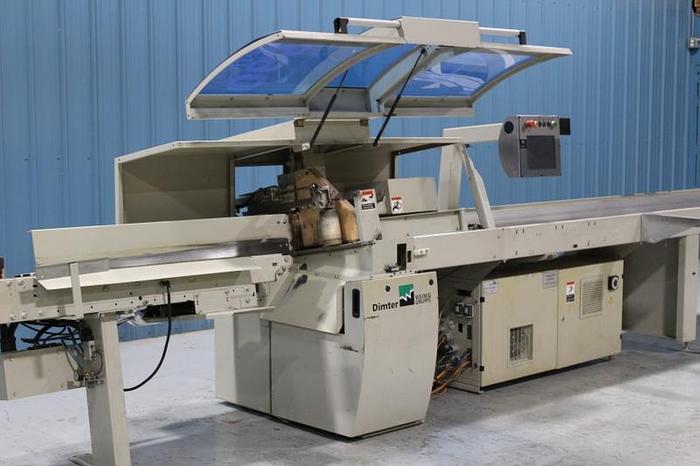

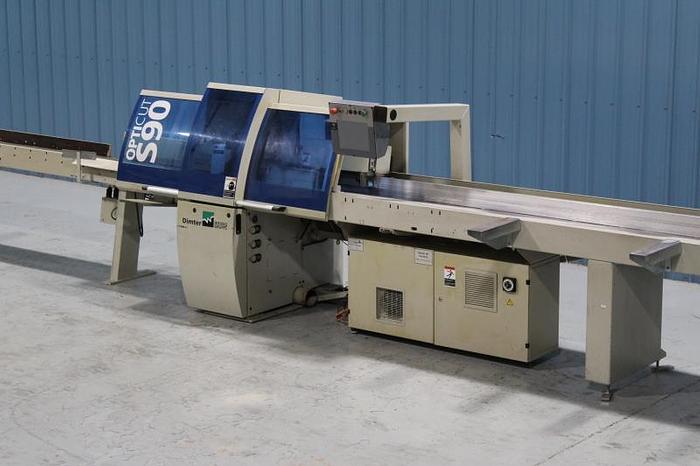

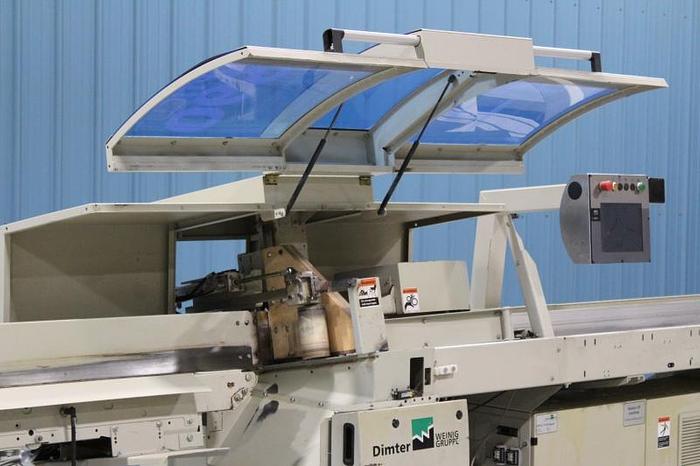

Dimter Model Opticut S90 Speed Optimizing Cross-Cut Saw

Dimter Model Opticut S90 Speed Optimizing Cross-Cut Saw

$85,000 (USD)

Grand Rapids, MI

orCall 616-308-9800

Description

  • Dimter Optimizing Cross-Cut Saw OPTICUT S 90 Speed
  • Incoming Lengths up to 14'-9 1/3"
  • Widths 4/5" Min to 8" Max
  • Thickness 2/5" Min to 3.5" Max
  • Automatic Length Cutting: 800 Lengths Distributed onto 16 Cutting Lists can be Stored. Input up to 200 Lengths per Cutting List is Possible
  • Saw Motor 10HP

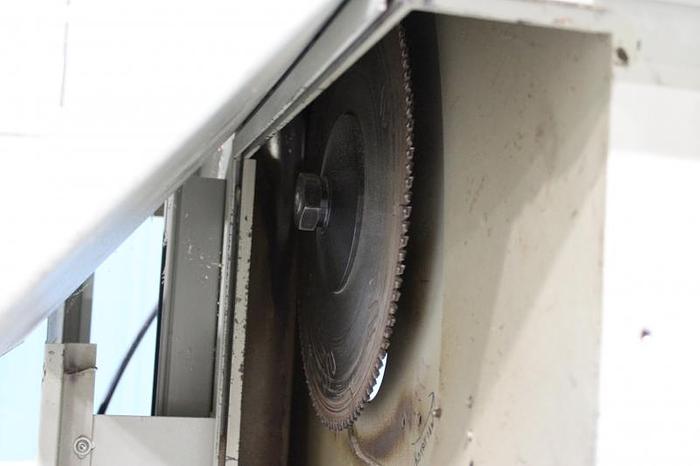

  • Saw Blade Diameter 16"

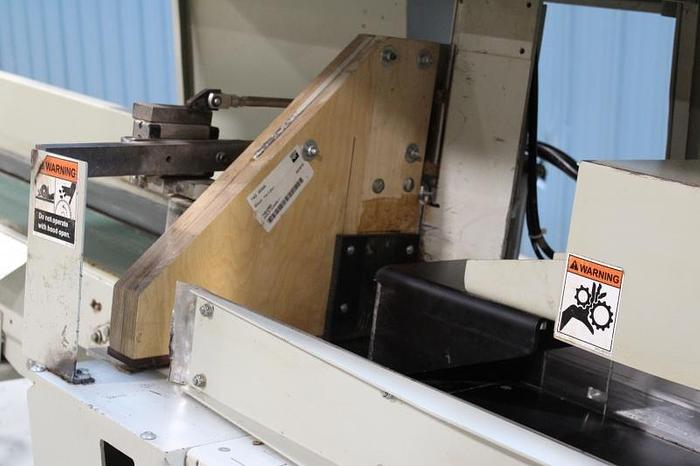

  • Swiveling Positioning Pusher Including Laser Photo-eye for Automatic Length Detection

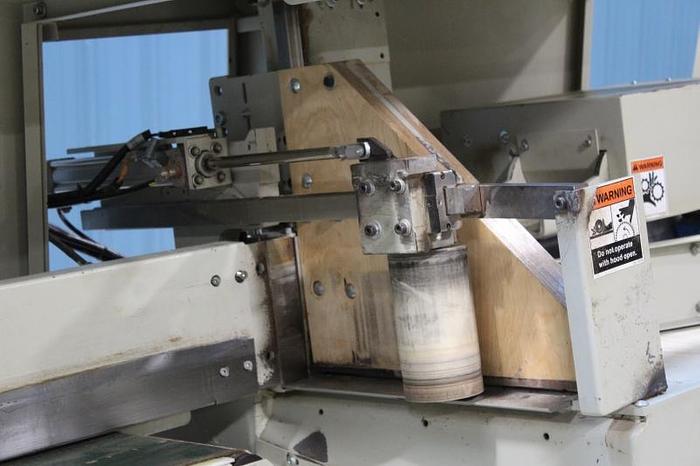

  • Lateral Pressure Unit for More Dynamic Positioning and Rectangular Cut


  • Advance Speed up to 394' /min.
  • Speed at Return Stroke up to 590'/min.
  • Accuracy Package for Positioning of Pusher +/- 0.1mm
  • Automatic Start After Workpieces have been Inserted
  • Wide Infeed Table
  • Integrated Waste Gate Electro-pneumatically Actuated
  • Max. Waste Length Approx 4-3/4"

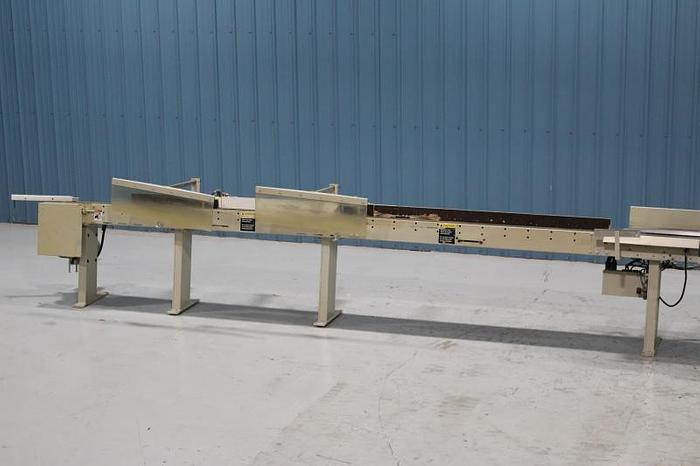

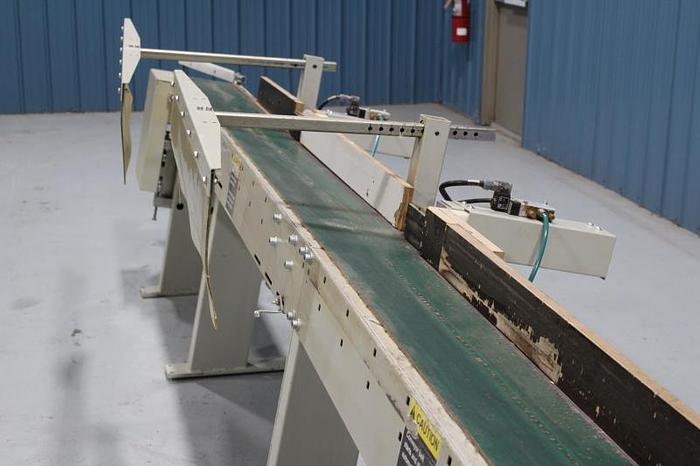

  • Outfeed Conveyor Belt / Sorting Station with Drive Unit 32' 10"
  • Two (2) Pneumatic Kickers
  • New in 2006


Specifications

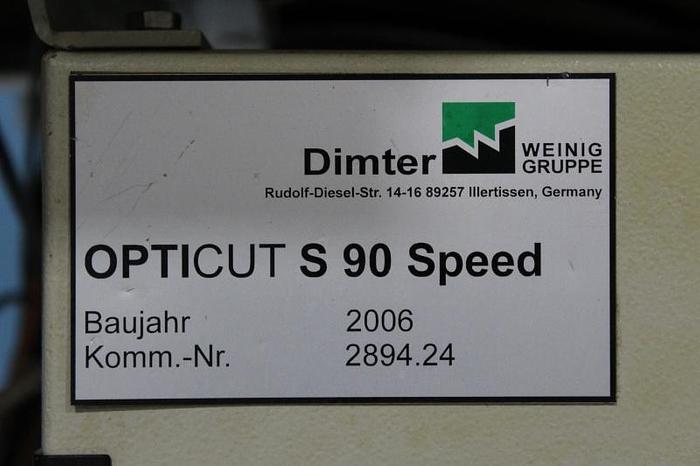

ManufacturerWeinig
ModelOpticut S-90 Speed Chop Saw
Year2006
ConditionUsed
