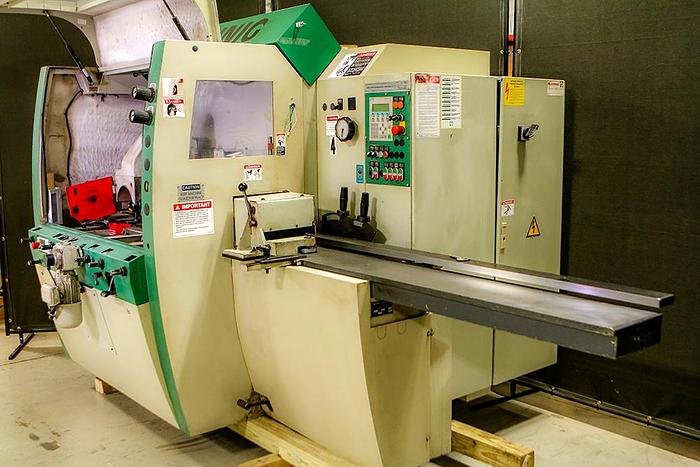

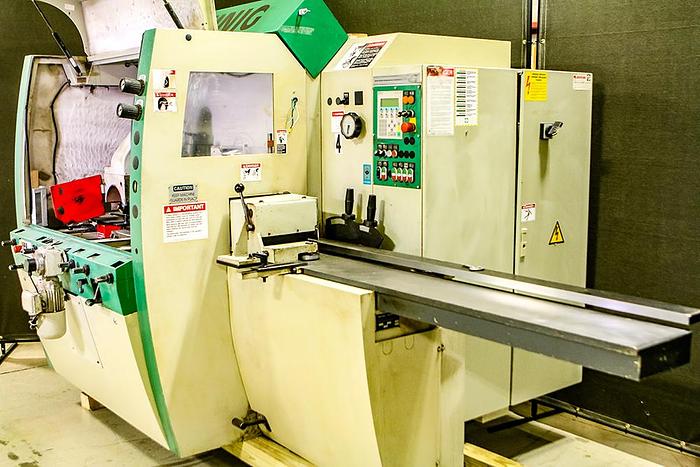

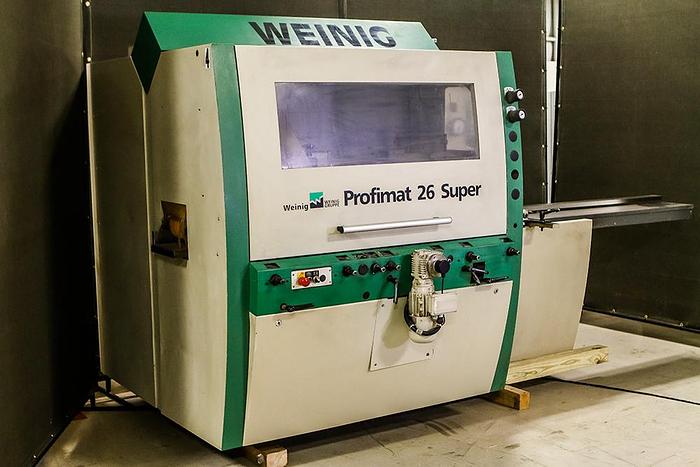

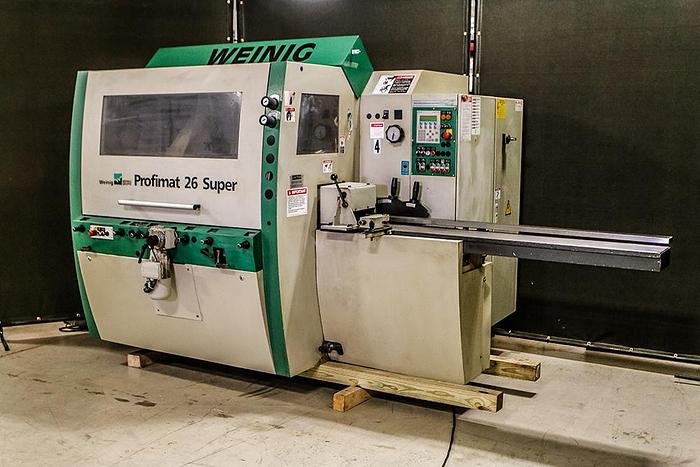

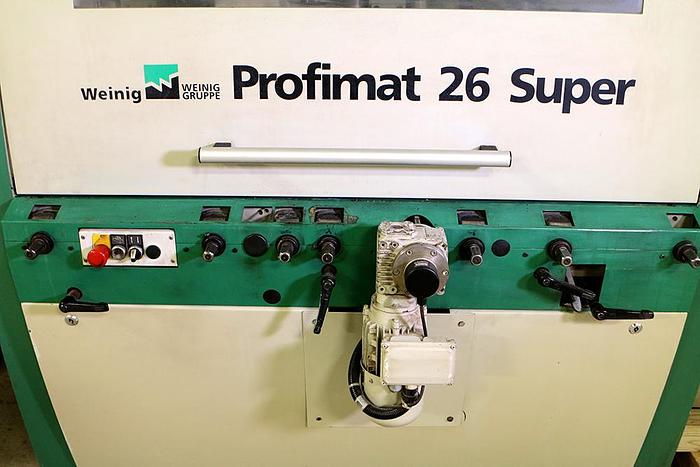

2001 Weinig Profimat 26 Super

WEINIG PROFIMAT 26 Super

- max. Workpiece width 260mm

- max height of workpiece 130mm

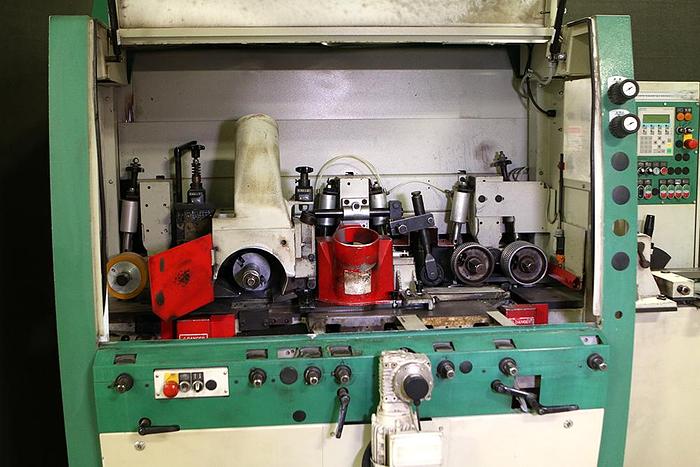

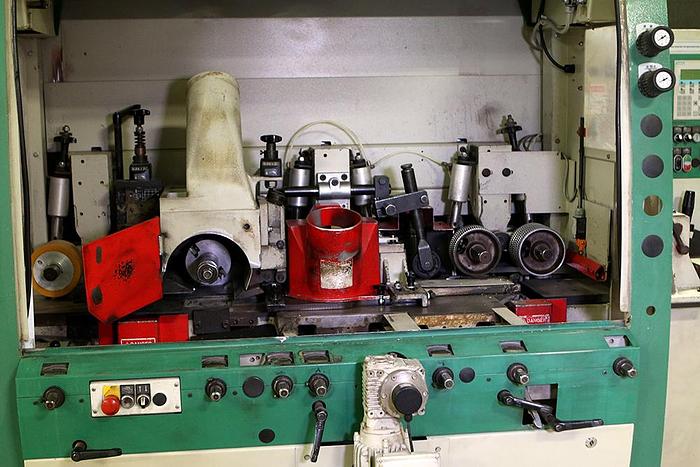

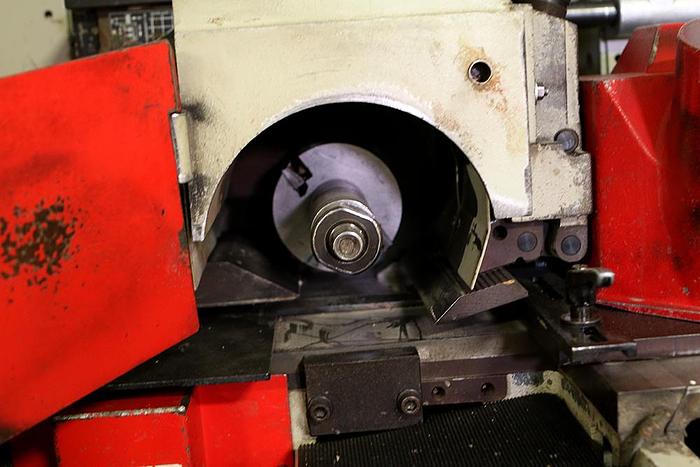

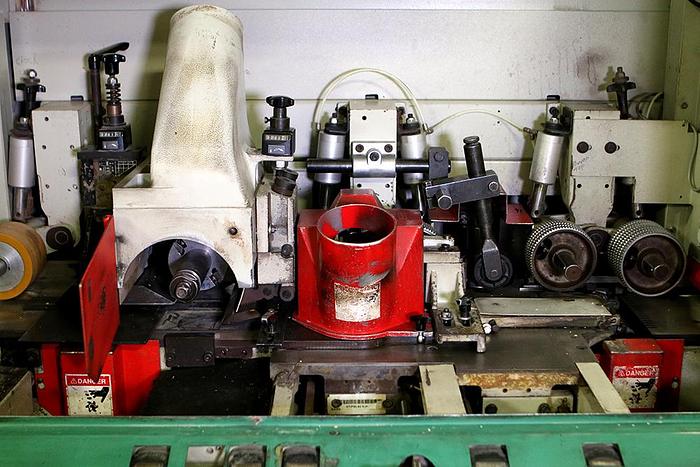

5 spindles:

1) Horizontal bottom 260mm 5.5kW

2) vertical right 130mm

3) vertical left 130mm (2i3) 5.5kW

4) horizontal upper 260mm 5.5kW

5) horizontal lower 260mm 5.5kW

- All heads are adjustable up / down, right / left

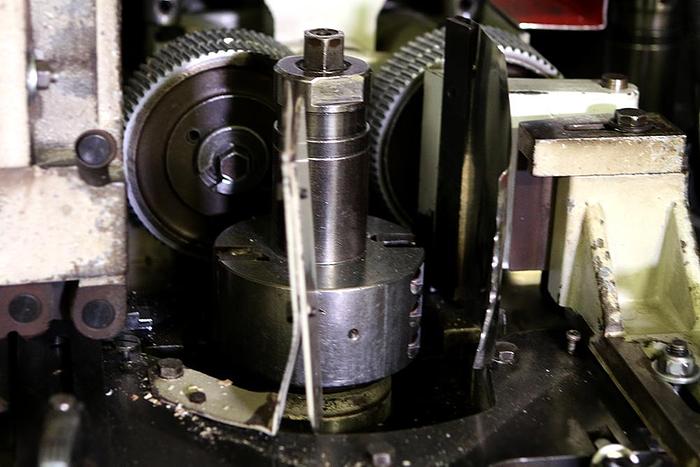

- diameter of spindles 40mm

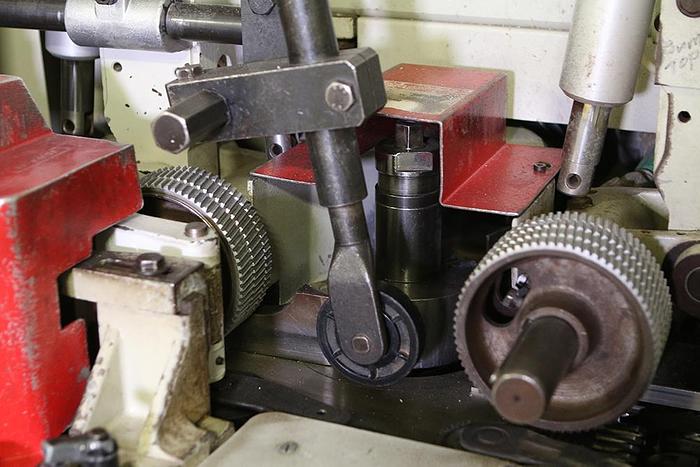

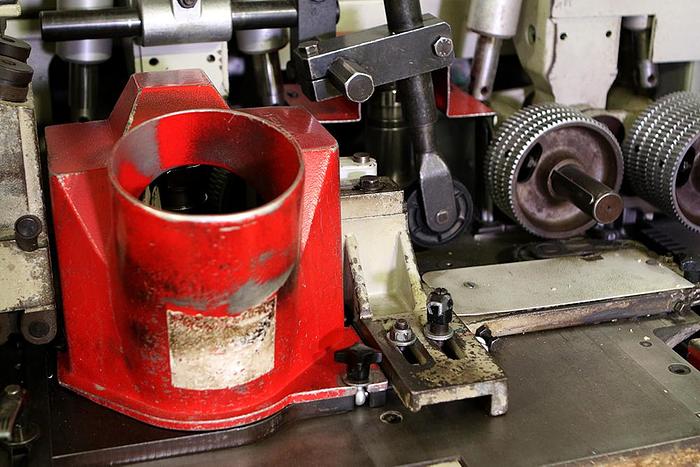

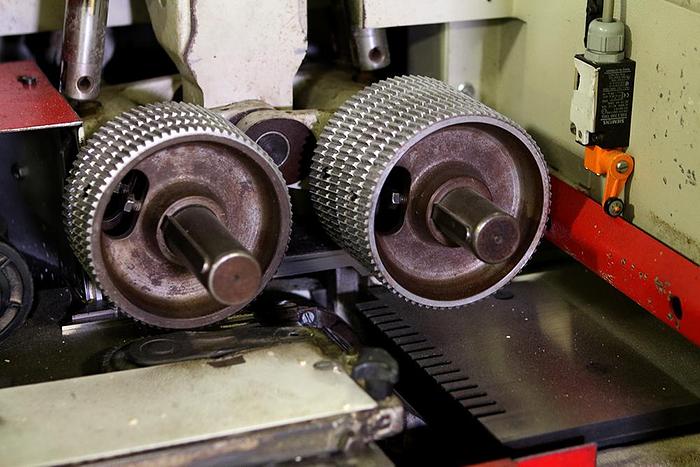

- 4 in. Rollers, pulling, toothed, including 2 double

- from the top pulling shaft pulling, rubber double

- bottom pulling rubber pulling roller

- feed on cardan shafts

- smooth feedrate adjustment 5-24m / min

- 2.2kW feed motor

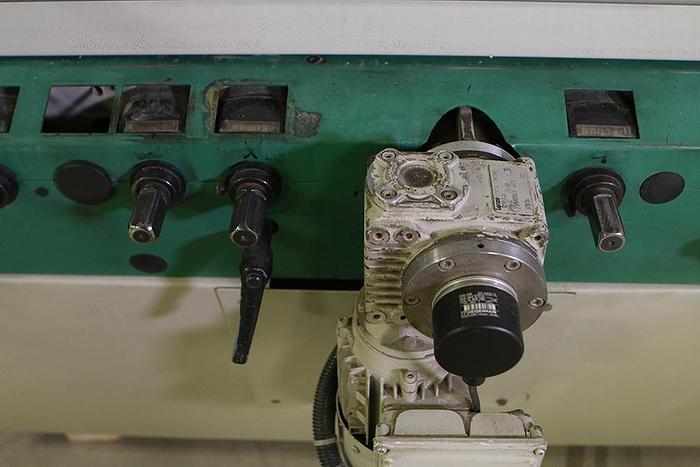

- electrical adjustment of the planing thickness

- central lubrication

- length of the top of the 2480mm

- top / bottom adjustable top

- the diameter of the exhaust pipe

- Dimensions Width / Height / Height 4000x1820x1900mm

- weight of about 3000kg
