2008 C.R. ONSRUD 145G18

2008 C.R. ONSRUD 145G18

$88,000 (USD)

Grand Rapids, MI

orCall 616-308-9800

Description

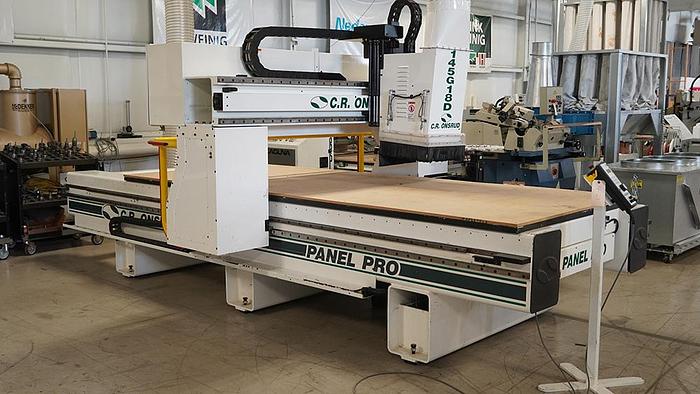

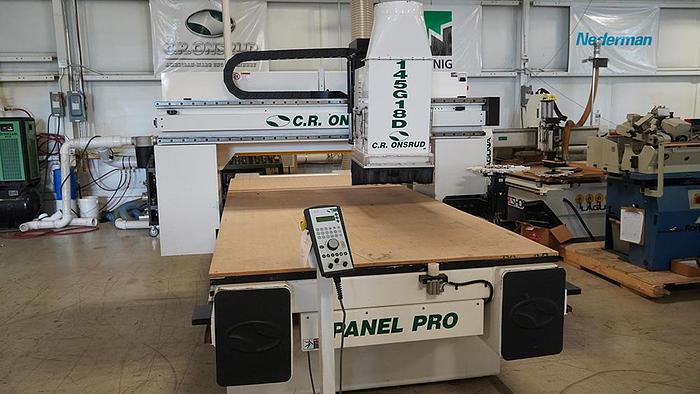

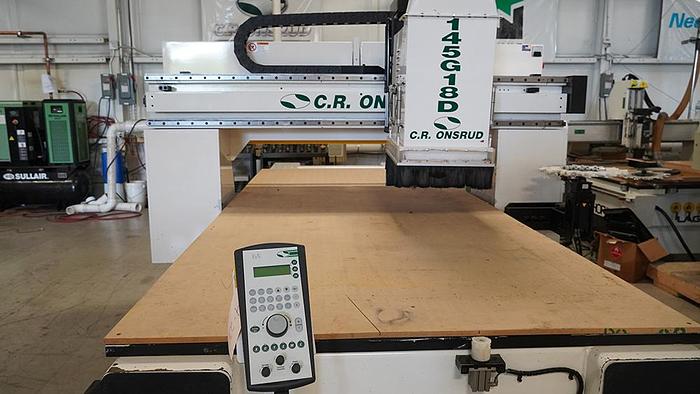

C.R. Onsrud 145G18 CNC Router (5x12) 2008 MACHINE OPTIONS INCLUDED –*

HSK-63 Spindle Taper & Tool Changer Adapter

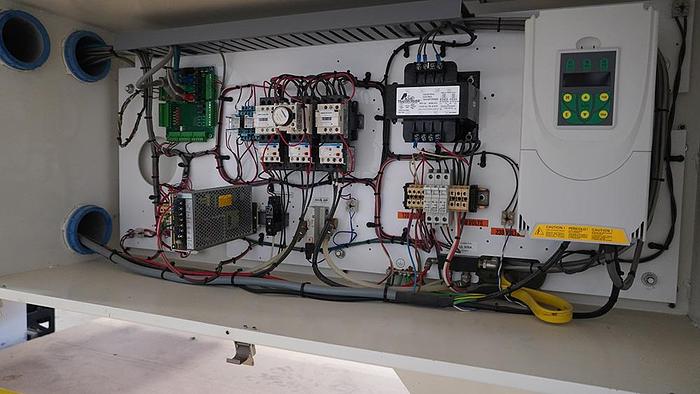

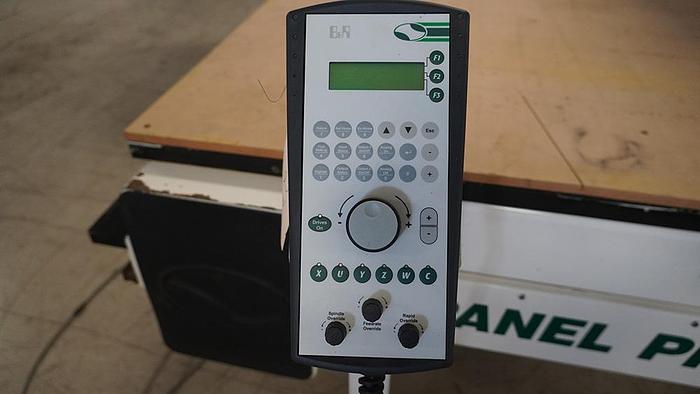

B and R Controller

Centralized manual grease system

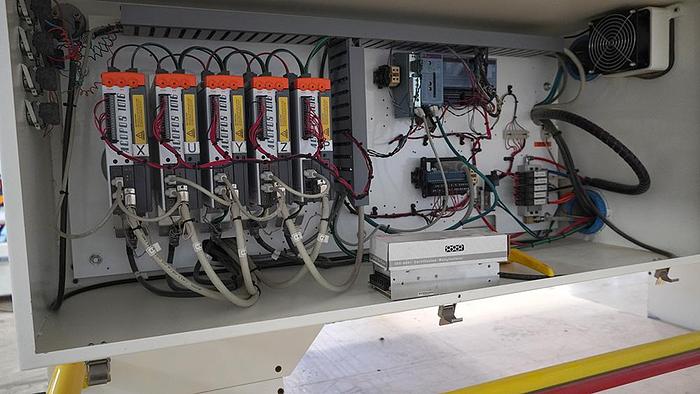

High Speed – High Production – Encoder-Based Digital Brushless AC Servos Larger servos, drives, amps for faster feed rates, heavier cutting, & increased accuracy*

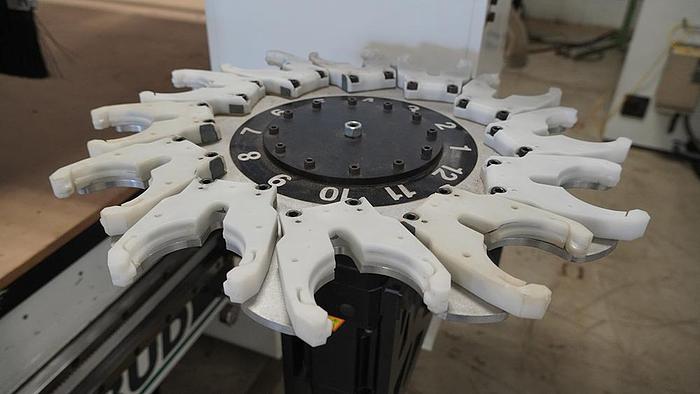

12 Tool – Dynamic Automatic Rotary Tool Changer

Fully Servo controlled instead of Stepper controlled.


The design eliminates misfires & more quickly changes between 12 different tools – (w/2 free HSK-63 tool holders) AND MORE…There will be an additional cost for freight and installation.


Note: There may be some variances in the above features machine


OPTIONS INCLUDED –

* HSK-63F Spindle Taper & Tool Changer Adapter

* High Speed – High Production – Encoder Based Digital Brushless AC Servos Larger servos, drives, amps for faster feed rates, heavier cutting, & increased accuracy

* 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled. Design eliminates misfires & more quickly changes between 12 different tools – (w/2 free HSK-63 tool holders) AND MORE… There will be an additional cost for freight and installation. Note:


There may be some variances in the above features.

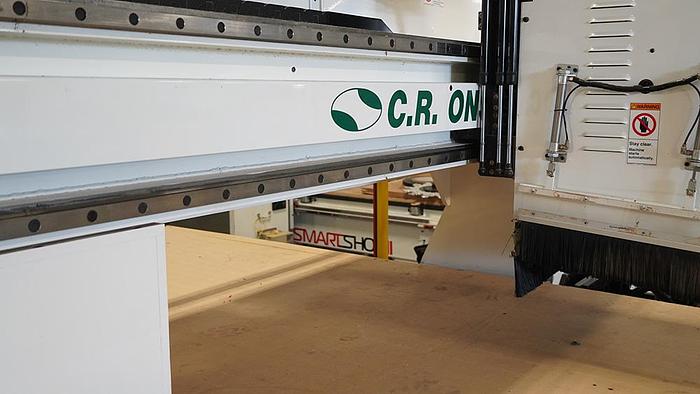

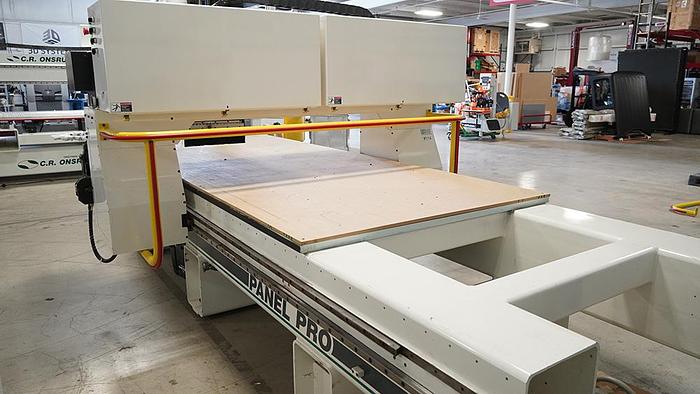

(145” X 61” axis travel) – with: Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base, & Thermal Heat Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,000” per minute machining speed, full 3-D capability, 14” under-bridge clearance & 11” Z axis stroke, 16’X8’ footprint, oversized precision ball screw drives for Z & Y axis, case-hardened, oversized, precision ground, helical rack & pinion drives for X axis, THK precision linear profile guideways, variable speed, quick-change, cartridge-style spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, SINGLE FIXED 144” x 60” TABLE, w/3 independently controlled vacuum zones & full table coverage. Each zone has low vacuum sensing safety shut-off with override capability.


Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, & is easily modified for the use of pod systems.

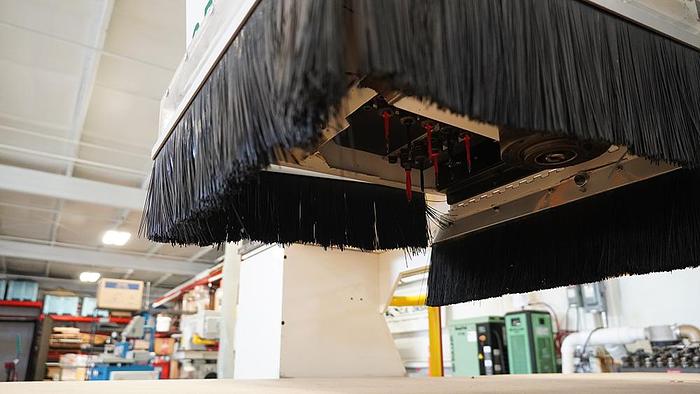

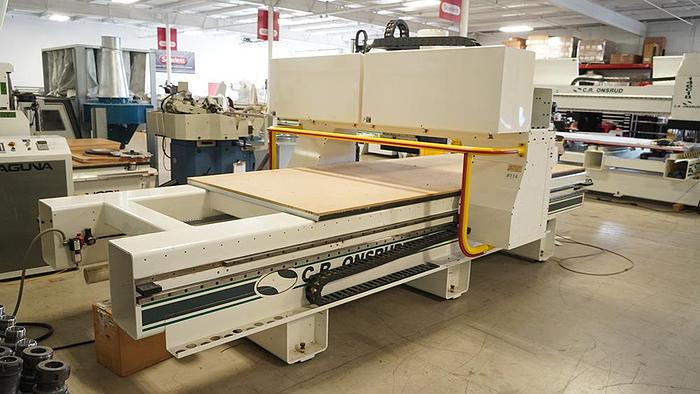

The moving gantry is surrounded by a pressure-sensitive safety-stop / emergency-stop bar.




Specifications

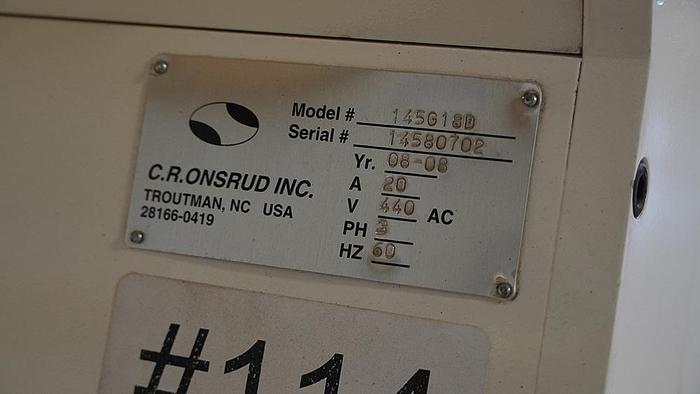

ManufacturerC.R. ONSRUD
Model145G18
Year2008
ConditionUsed
