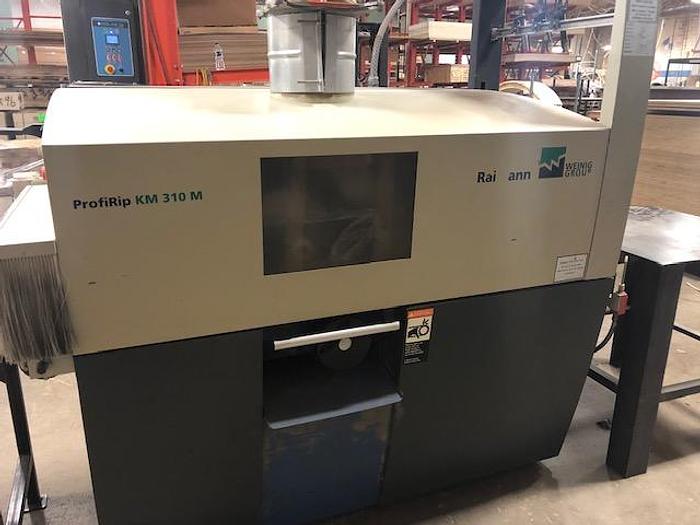

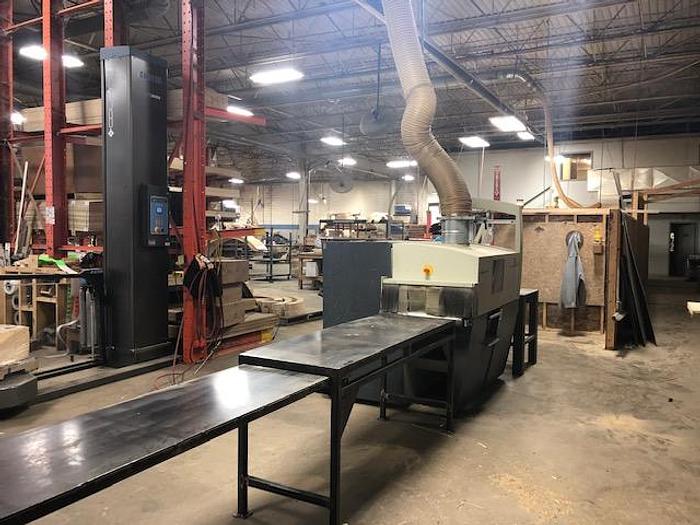

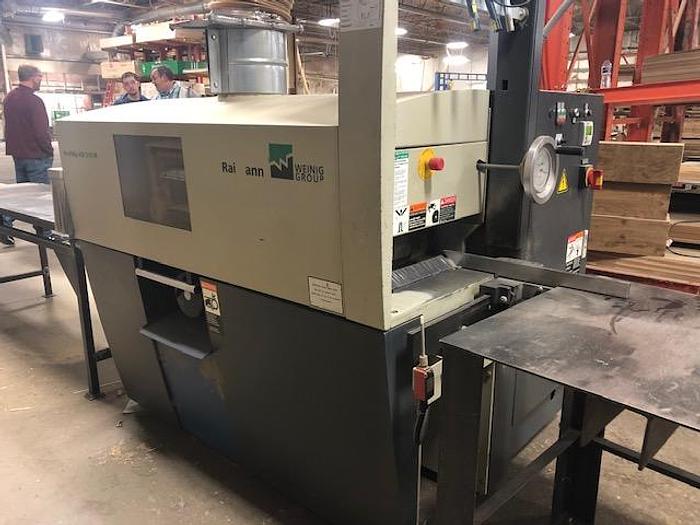

2006 Raimann KM 310

RAIMANN KM 310 (1) Fixed - 12-1/4" Max. width cap. working dimensions. Maximum board width 25" feed width, 13-1/2" chain width, 50 HP - 4,200 RPM V-belt drive arbor with (1) fixed blade; shifting blades positioned from operator controls. Cutting capacity: 12" Dia. saw blades, 65 mm (2-1/2" dia.) arbor, 4-1/4" max. depth of cut, 17-3/4" centers between upper holddown rollers (phenolic pressure holddown shoe plate included), 3/4" min. strip width, 19-1/2" min. stock length. Feed works: Variable feed speed from 13 - 115 FPM, 2.

Standard Equipment:

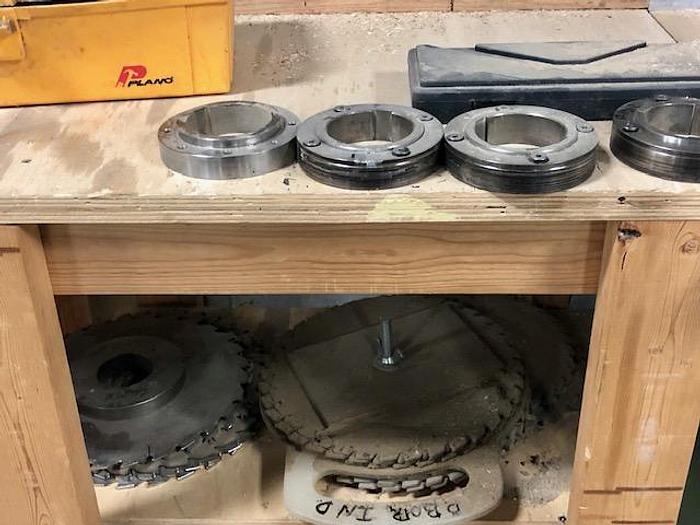

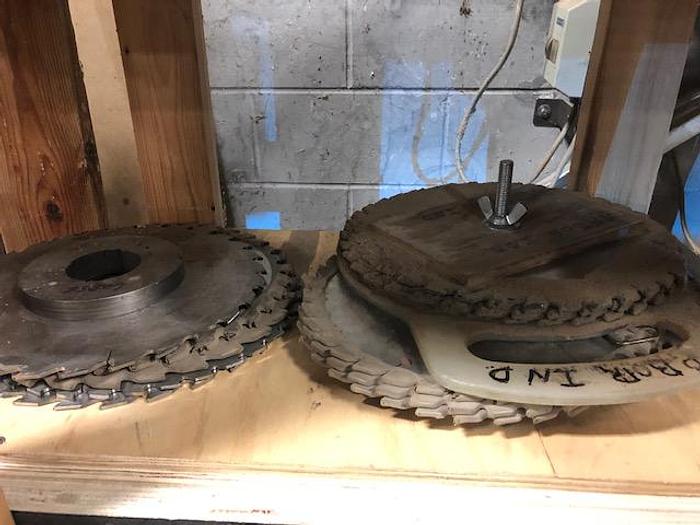

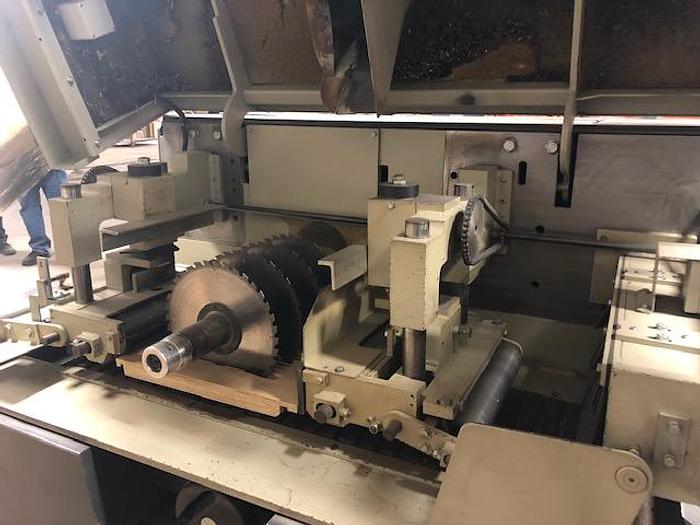

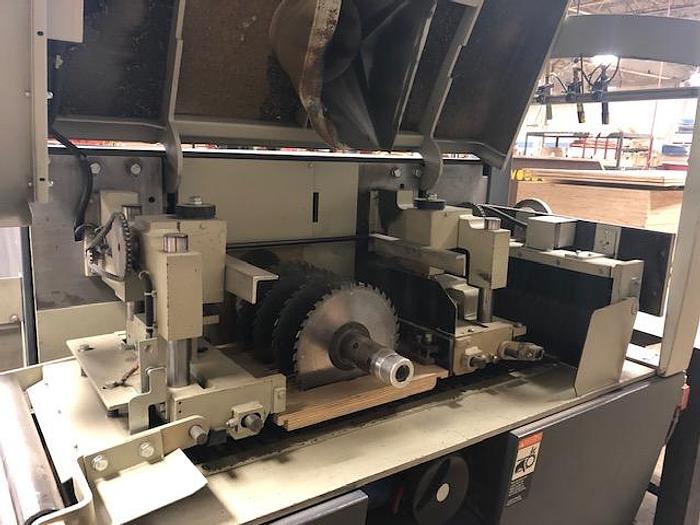

• Quickfix arbor with 4 clamping flanges, 4 blades and set-up templates
• easy-access safety hood, fully noise protected, with window
• 2 pressure boards with pressure-board clamping device
• arbor height adjustment via pull-out hand wheel
• fence positioning via easy cam-lock lever
• v-belt driven saw arbor, incl. protection cover, easily accessible

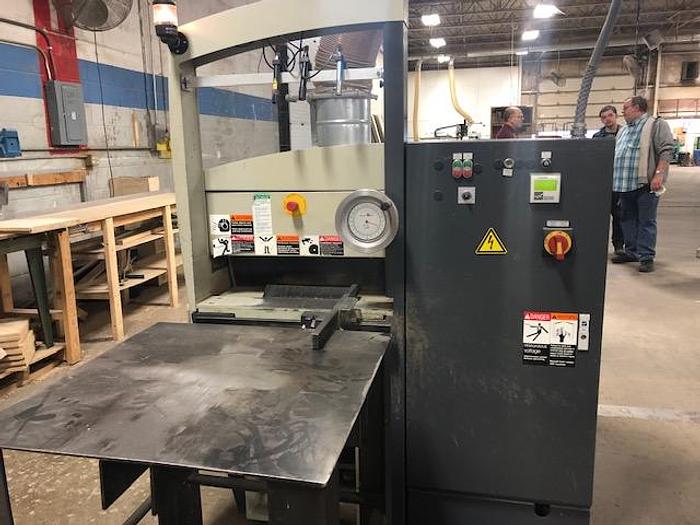

• centrally arranged machine controls
• frequency controlled feed speed, infinitely variable up to 115 fpm
• infeed limit switch for automatic machine STOP in case of oversized boards
• extended machine frame and transport chain for effortless feeding
• automatic star-delta with thermal over current relays for soft-start

EMERGENCY STOP switches at both the infeed and outfeed side

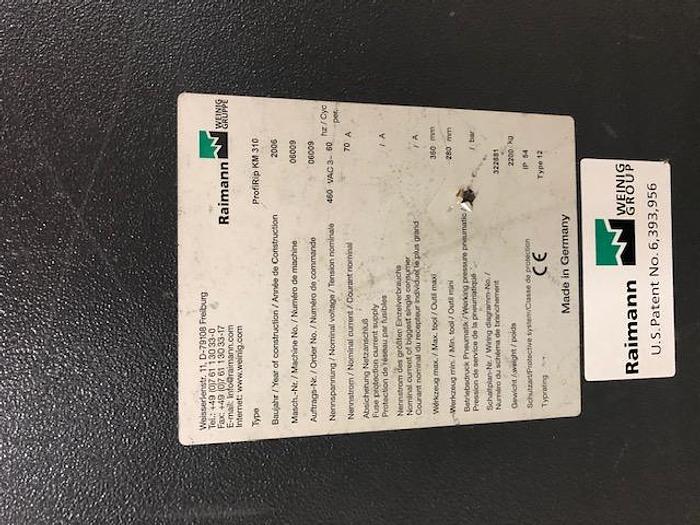

440 V*, 3 phase / 60 Hz electrics manufactured by Moeller, with 37 kW (50 HP) arbor motor.

Electrical cabinet integrated in machine frame.  All components conform to UL regulations.

* Note: allowable voltage fluctuation: +10%/ -5%

operator manual, parts list, schematics, set of tools
