C.R. ONSRUD MODEL F145G15W10 "5-Axis Pro Series" CNC ROUTER"

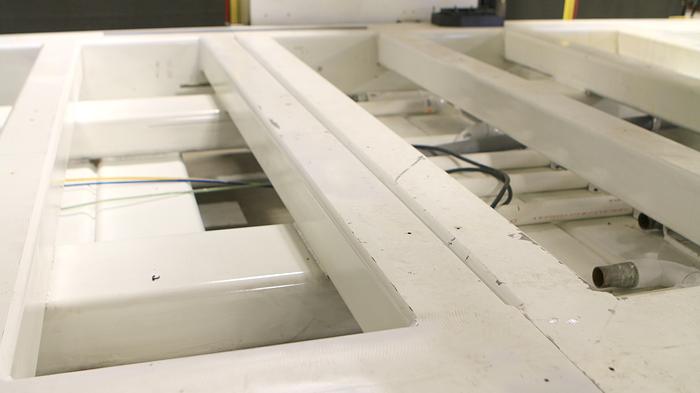

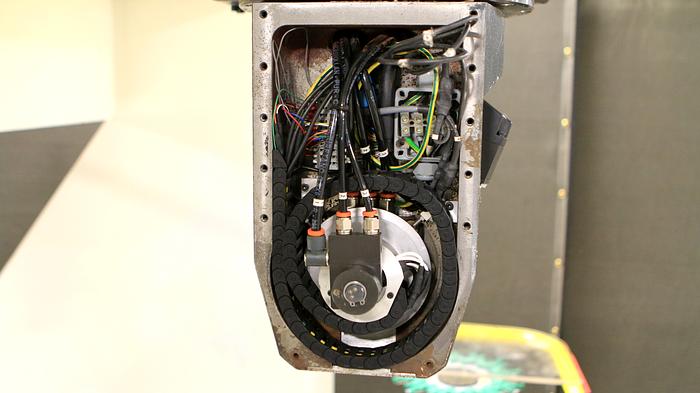

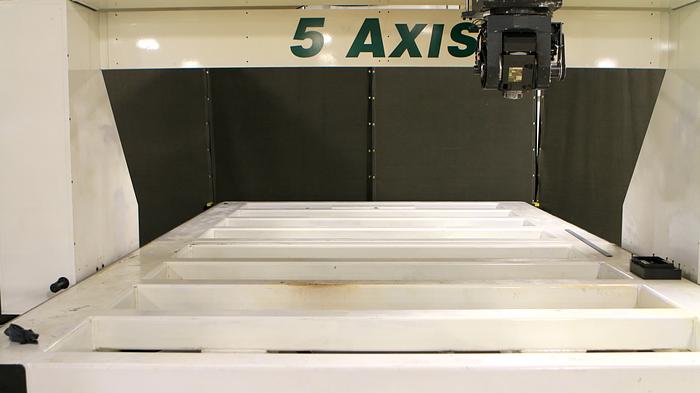

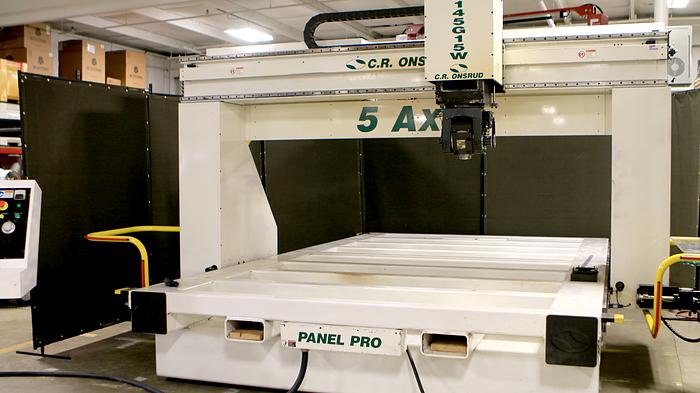

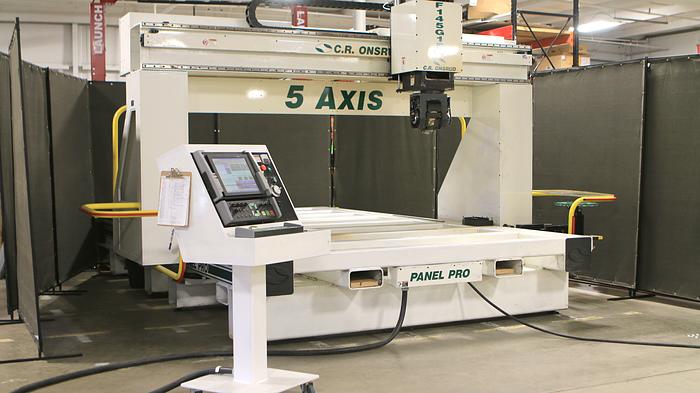

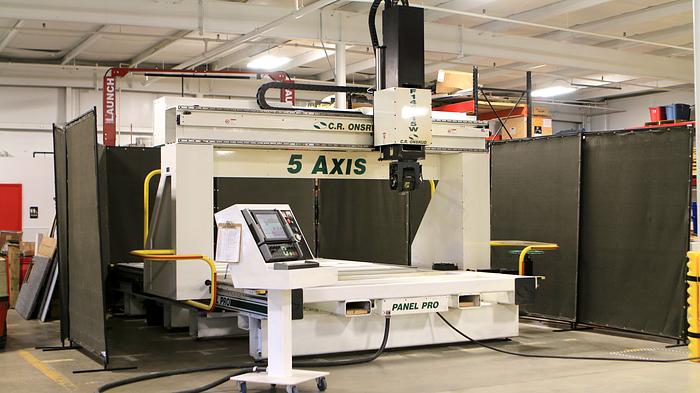

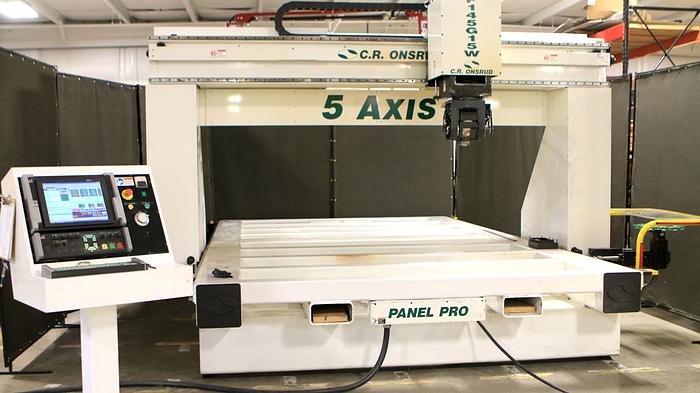

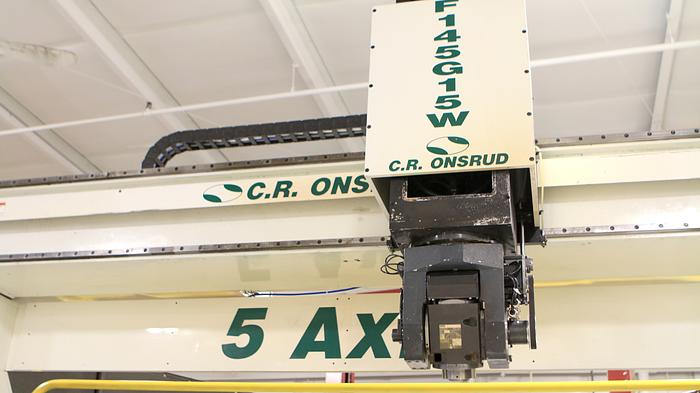

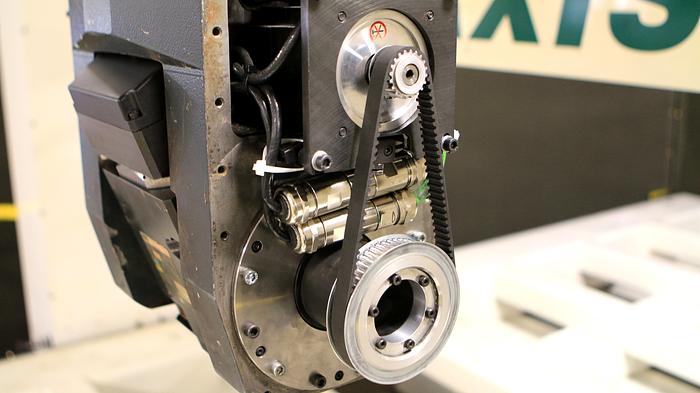

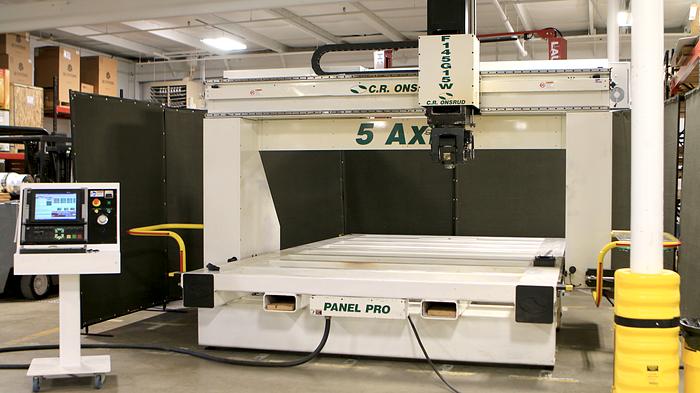

C.R. ONSRUD MODEL F145G15W10 "5-Axis Pro Series" CNC ROUTER 2008 CR Onsrud makes the highest quality machines with this speed, accuracy, and volume available in North America. All frames are Thermal Heat Treated, Stress Relieved, & Normalized. This machine has Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,000” per minute machining speed, full 5 axis 3-D capability, precision ball screw drives for Z & Y axis. Z clearance on this machine is 41-inches of Z, X envelope is 12' Y envelope is 10' 5-Axis 15 HP Short-nose Spindle - 4-Pole, 15HP – 24,000 RPM Double-Armature 5-Axis Spindle w/HSK-63F Spindle Taper. Fully programmable, variable speed, quick-change spindle, capable of routing & drilling, programmable feed rates with override capability. A-Axis Rotation +/- 120 degrees, C-Axis Rotation + 300 / - 115 degrees.

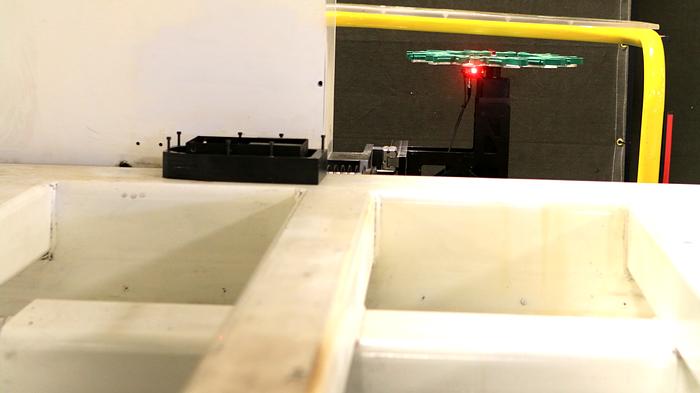

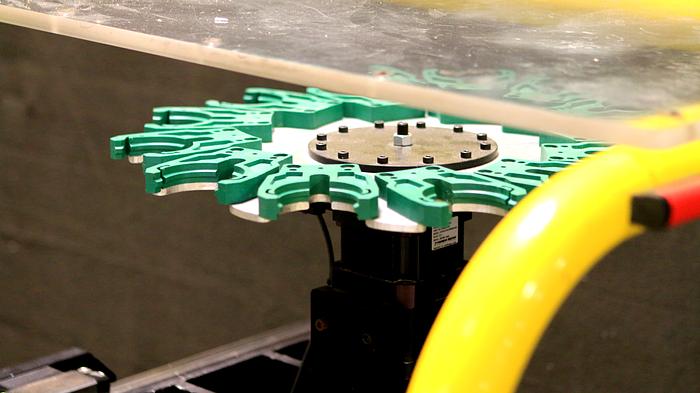

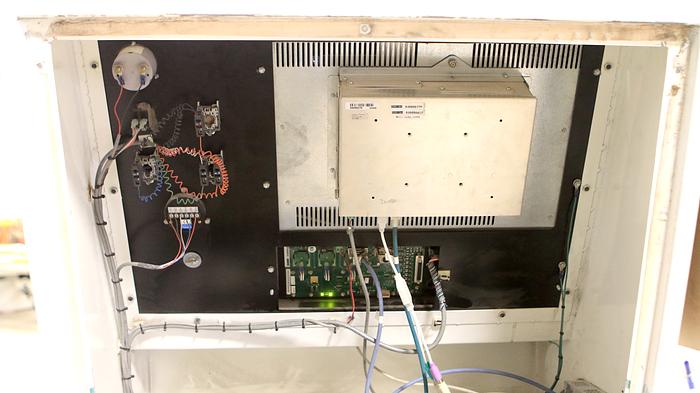

Chiller for Liquid Cooled Spindle Option - Adds a liquid cooling system & chiller in place of the standard fan & compressed air spindle cooling system. 12 Tool - Dynamic Automatic Rotary Tool Changer - Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools Air Conditioned Electronics Cabinets - Recommended for extreme environments & some non-temperature controlled workplaces. Option replaces the standard heat exchanger system. REPLACEMENT COST $378,348.00 SALE PRICE $149,000.00
