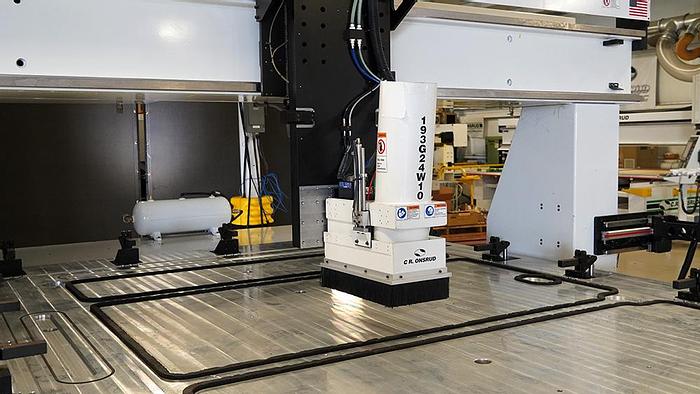

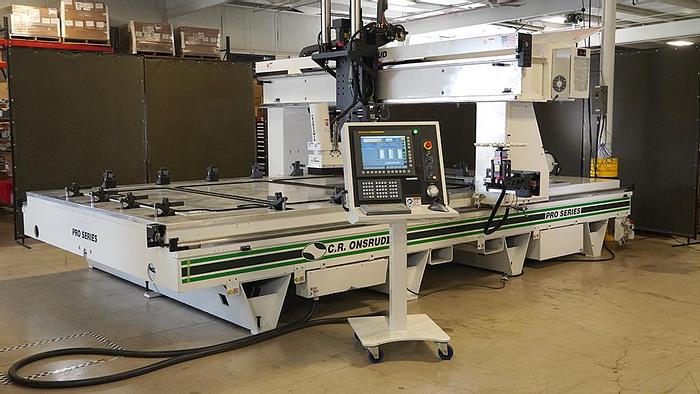

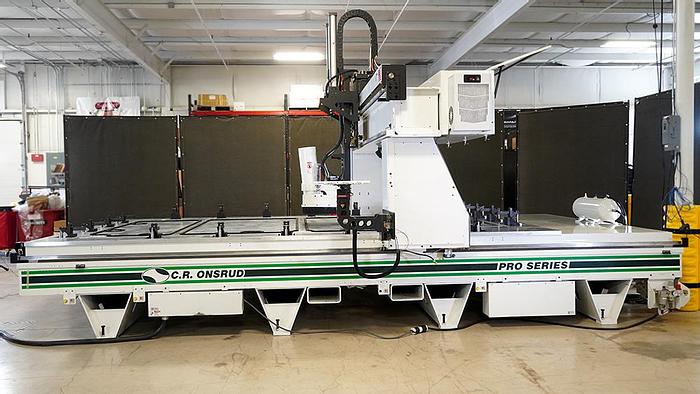

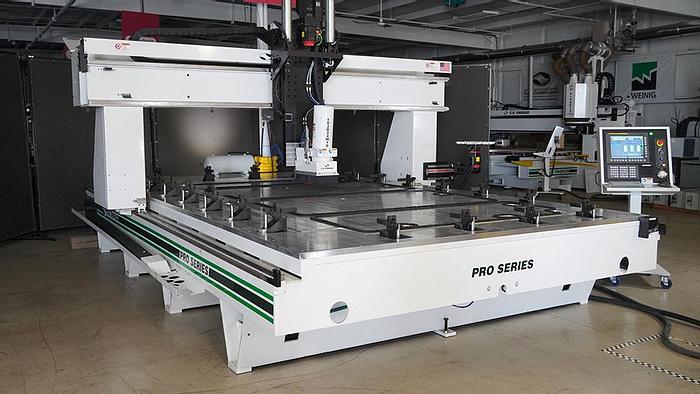

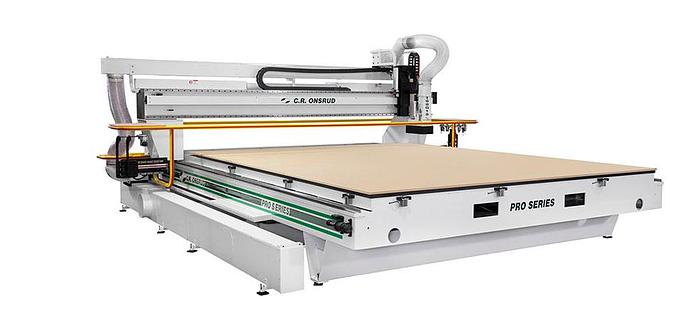

2020 C.R.ONSRUD 193G24W10

Make:

C.R. Onsrud

Model:

193G24W10 G-SERIES

Year:

2020

Brand New 0 Hours on this machine.

*Safety Features not shown in pictures (bump bars, etc.)

SPECIFICATIONS

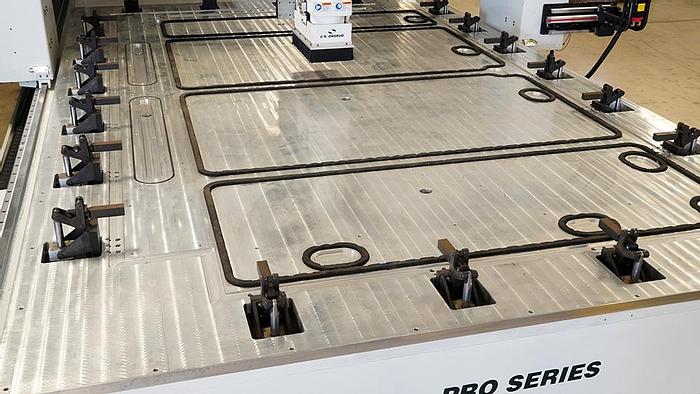

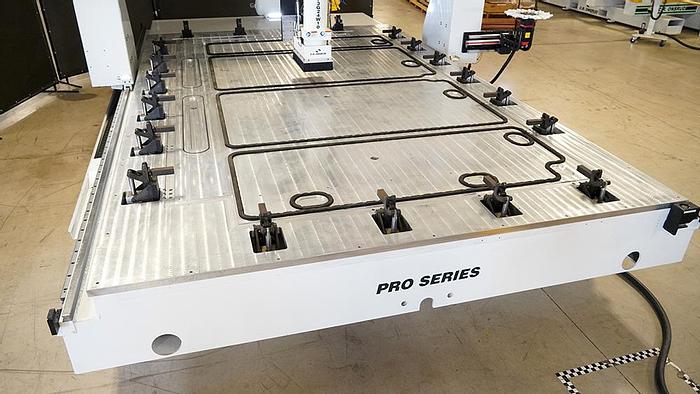

Working Table Length: 193"

Working Table Width: 120"

Distance Between Columns: 123.75"

Spindle Longitudinal Travel (x Axis): 206"

Spindle Cross Travel (y Axis): 141.25"

Spindle Vertical Travel: 17.593"

Spindle To Table Top: 3.771" - 21.364"

Spindle Speeds: 24,000 Rpm

Spindle Motor: 24 Hp

Power: 460v/3p/60hz/30a

Oad (approximate): 286" X 204" X 153" High

Equipped With:

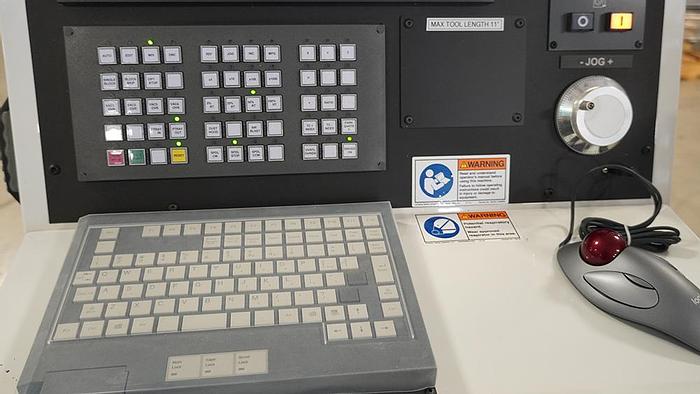

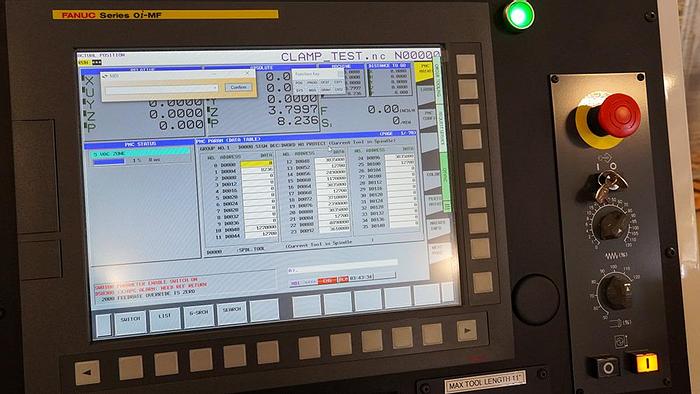

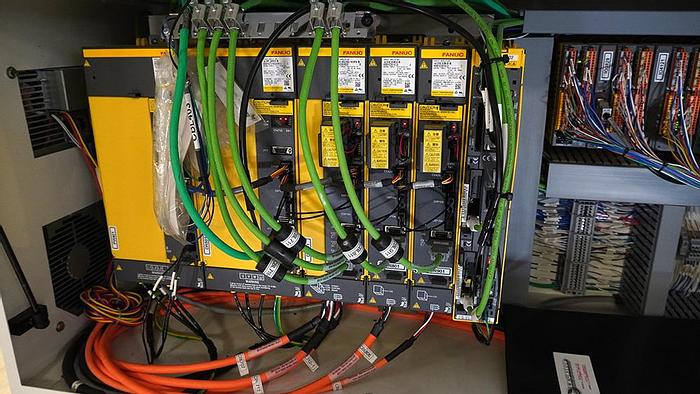

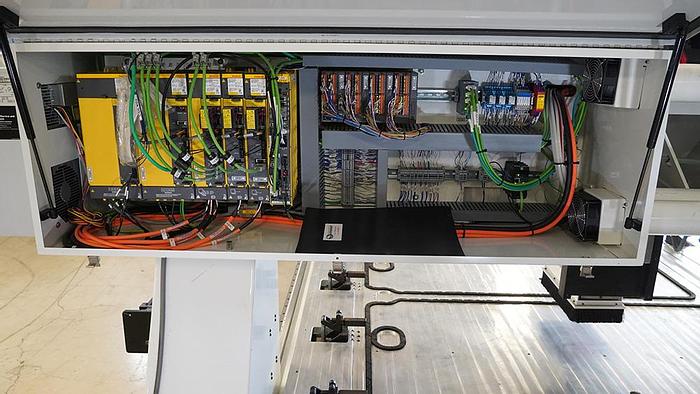

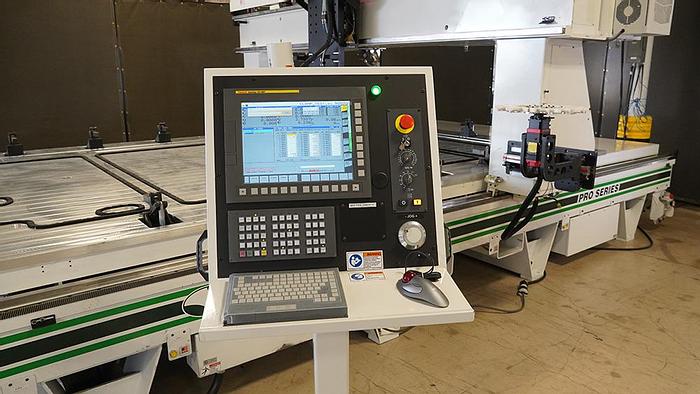

Fanuc 0i Cnc Control

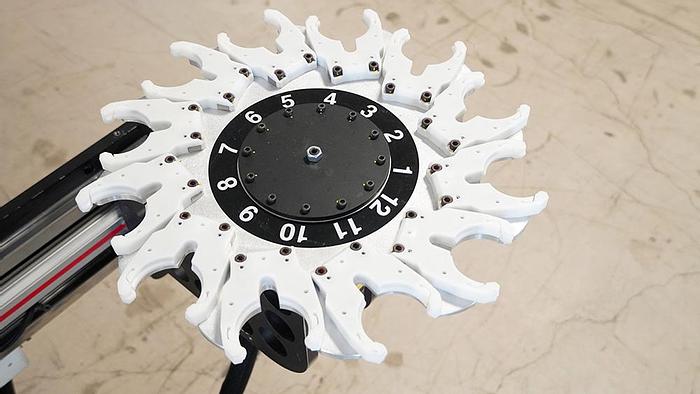

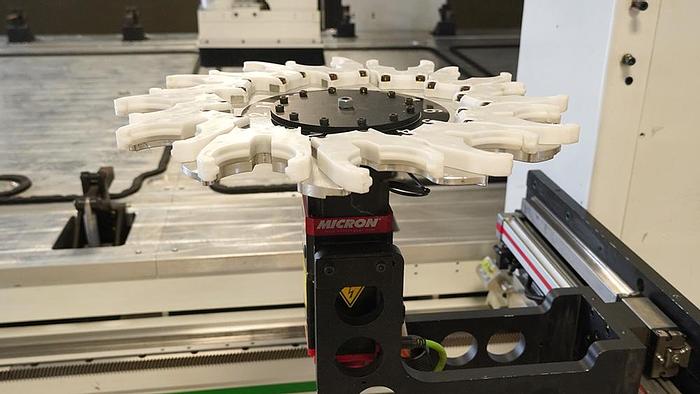

Tool Storage: 12 Position Rotary

**loaded With Options**

• Note: Machine Run At Factory For Final Inspection, Packed And Shipped To Customer. Never Installed. 0 Hours. Currently set up at Scarlett Machinery in Grand Rapids, MI.
