2007 C.R. ONSRUD 146C18CD

Sold

2007 C.R. ONSRUD 146C18CD

$87,500 (USD)

Location:Grand Rapids, MI

Description

This machine is physically located at Scarlett Inc’s showroom in Grand Rapids, MI. Please call to arrange a visit. We are 3.5 minutes from the airport and would be happy to pick you up. Please note that the below description is from the original manufacturer's spec.


For a more detailed description, please call James to discuss if this machine will fit your needs. 616.308.9800

18HP Main Router Spindle 24,000RPM

Twin Tables or Locked for a Single 5’ x 12’

HSK63 Spindle Taper

9 Spindle Boring Block

12  Position Automatic Tool Changer

OSAI Controller

40HP Dekker Vacuum Pump

14”  Z Axis

C-Axis Ability  for Aggregates

Pods

Collets Included

Tool Holders Included

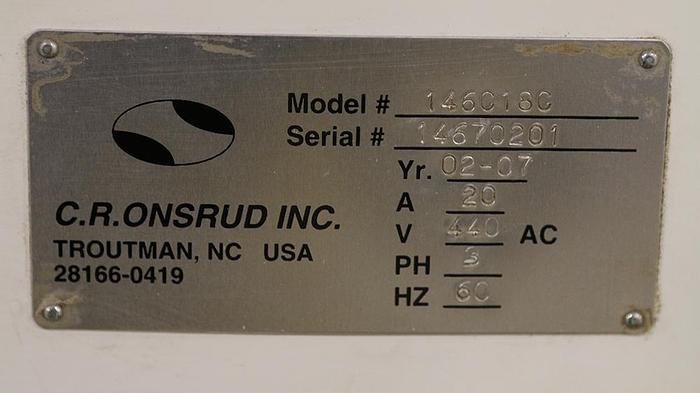

Voltage 440/3PH

Year: 2007

 Machine NEW was  $251,000.00

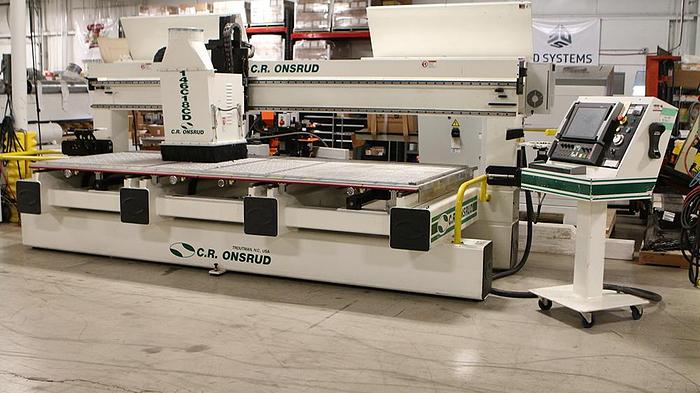

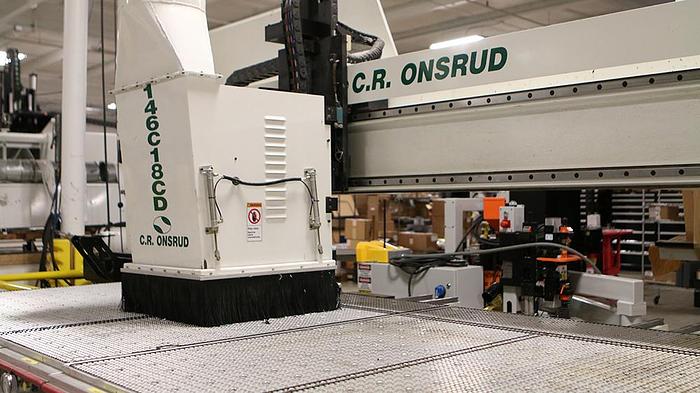

2007 C.R. ONSRUD MODEL 146C18CD “Super Duty” CNC ROUTER – 5’ x 12’ Table

(61″X146” axis travel) – with: Thick Cast-Iron Fixed Bridge & Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 3600″ per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 10′ x 17′ footprint, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, 4-Pole 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, 12 TOOL – AUTOMATIC TOOL CHANGER.  TWIN ALUMINUM TABLES function as an independent 61″ x 97” & an independent 61” x 49″ table. Each table has low vacuum sensing safety shut-off with override capability. Twin Tables can also operate in tandem as a single 61″ x 146″ table, with full table coverage. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems.


All tables include pressure-sensitive safety-stop / emergency-stop bars along the front & rear, & the machine is surrounded by a 360-degree emergency-stop cable.

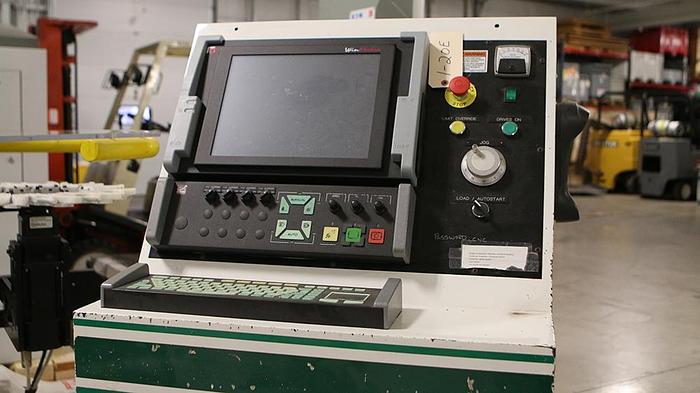

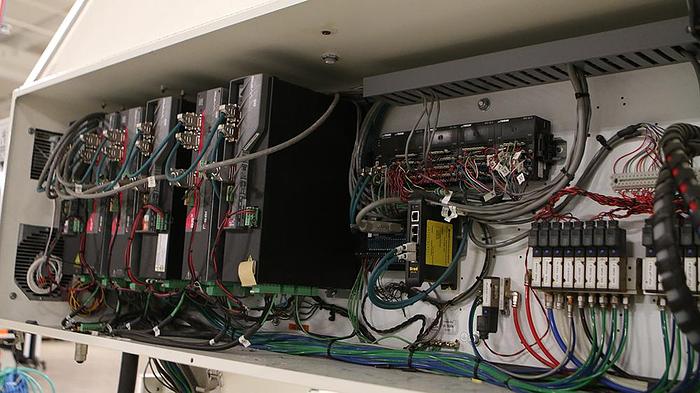

OSAI 10/510i Machine Controller System Upgrade With Integrated PC Interface – OSAI Numerical Control with OSAI “Win-NBI” PC Interface, High-Res touch screen, network capability, plus adds OSAI Digital Drives & Servos. Provided with 4-port network hub (requires 460V out isolation transformer)

HSK-63 Spindle Taper & Tool Changer Adapter


High Speed – High Production – Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy

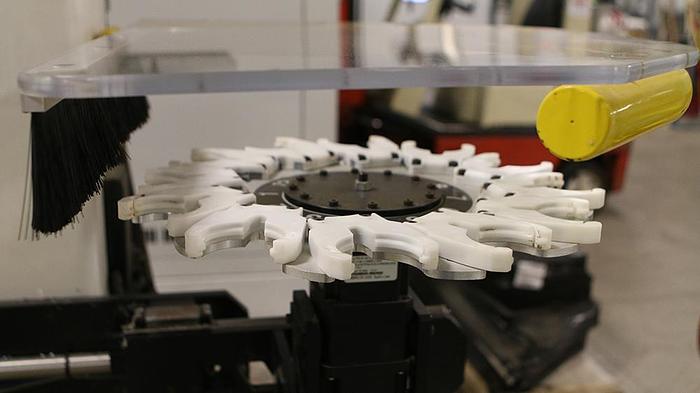

12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled. Design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates.


C-Axis Ability for Use With Aggregates – Adds a continuous rotation, rotational C-axis to Aggregate Tool Changer & Capability  (Price Includes Aggregate Anti-Rotation Spindle Adapter Ring Option)


Automatic Aggregate Tool Changer & Aggregate Capability – stand-alone, single pocket, 13th position tool changer with aggregate anti-rotation spindle adapter ring to make machine fully aggregate capable – (for use with or without C-axis Ability below) N/A on machines w/2-12 pos ATC’s

9 Spindle Drilling Block Package – (Multi-Spindle Line Drills) Includes 9 independent or simultaneous firing vertical spindles arranged to drill up to 5 holes at a time in the X axis or 5 holes at a time in Y axis

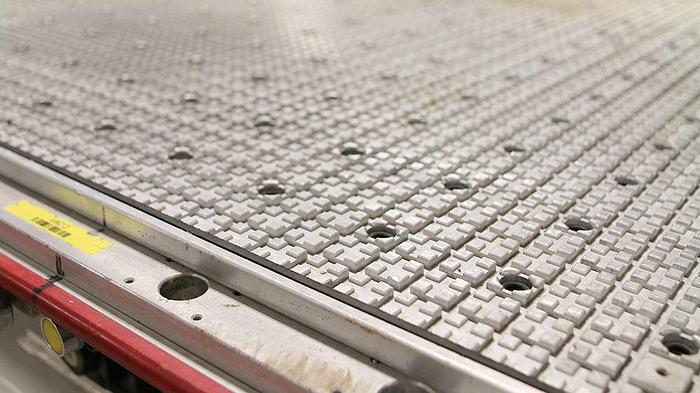

Onsrud / NEMI High-Precision Vacuum Grid Table – Aluminum NEMI Grid table

Pneumatic Controlled Vacuum Switches – (One for each table or zone).  Controlled via either touch screen or M-code on OSAI machines. Dust Transition Kit – (appropriately sized dust transition provided for connecting to your dropped-in flex hose)


CR ONSRUD High-Flow Universal Vacuum Table System – Includes: oversized 4” intake manifold, high- capacity vacuum plumbing, high-flow 1” grid waffle patterns, & equipped with choice of suck-thru or dedicated spoil boards.


Specifications

ManufacturerC.R. ONSRUD
Model146C18CD
Year2007
ConditionUsed
