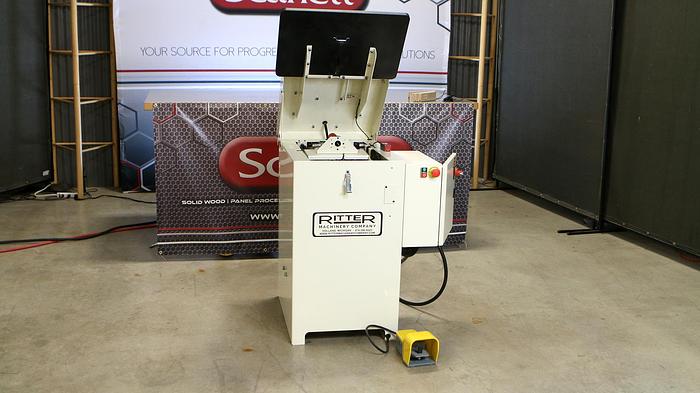

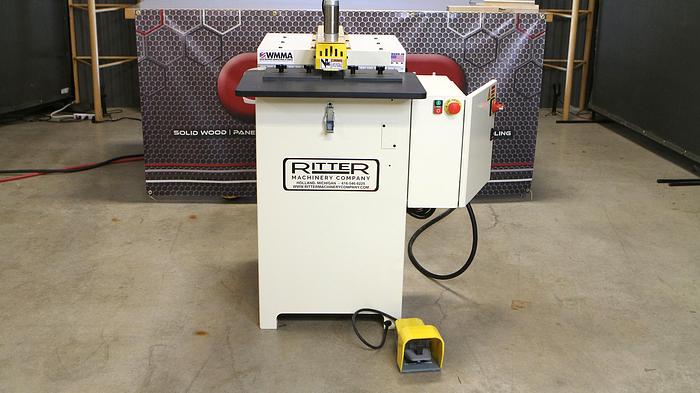

2021 Ritter R2063 6° LOW ANGLE POCKET CUTTER

This is a new machine located at Scarlett Headquarters.

Standard Features:

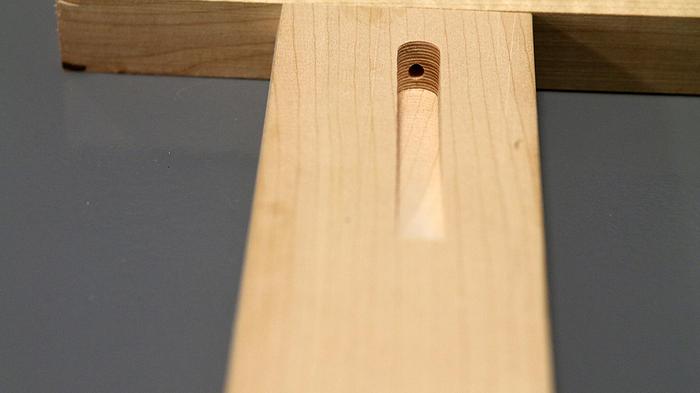

R2063 6° LOW ANGLE POCKET CUTTER

● 6° Low angle

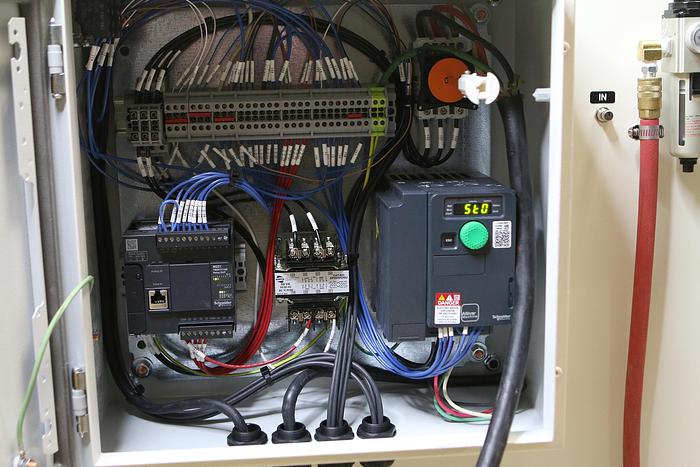

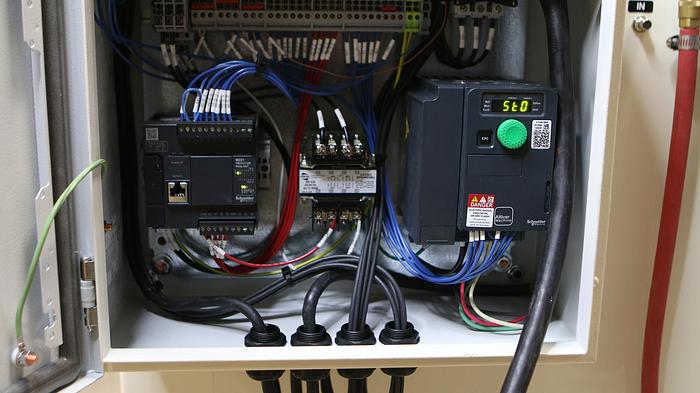

● PLC controlled cycle

● Foot pedal operated

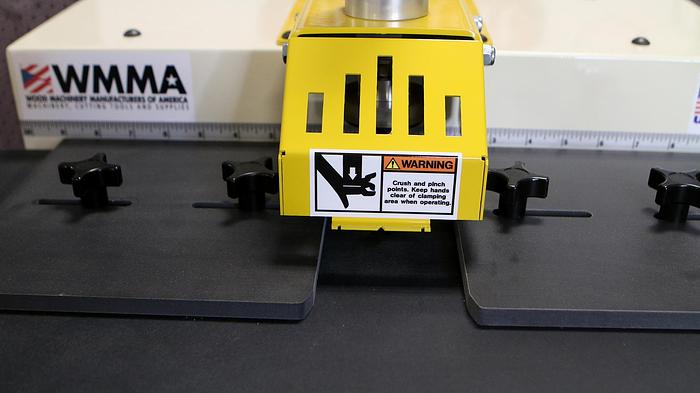

● Adjustable Material Stops

● Up to 2′′ thick material

● Cycle Time: 1.75 – 2 Sec

● Tooling Included

Technical Data and Specifications:

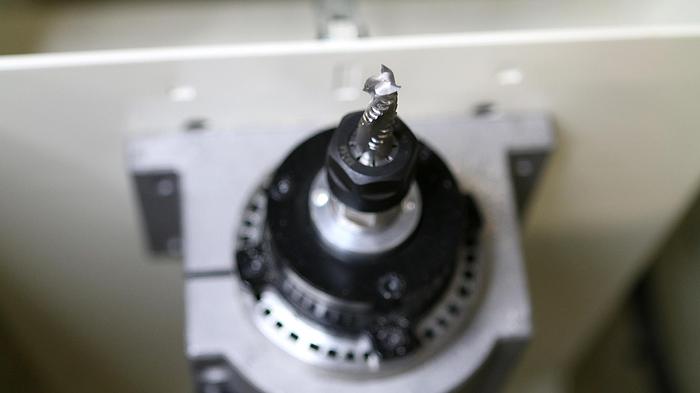

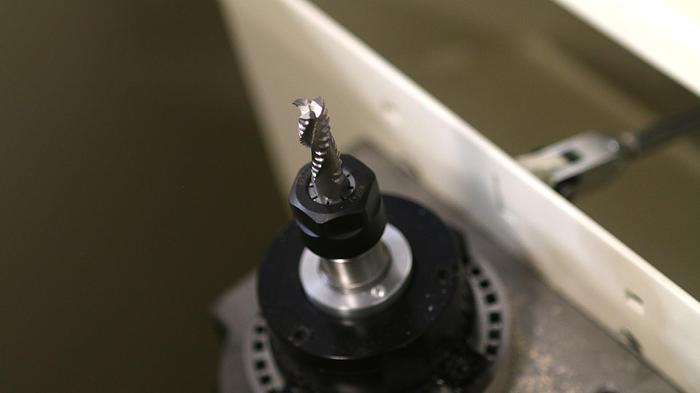

● Dust Port: 4′′Router Bit: 3/8” Solid Carbide, Rough Mill

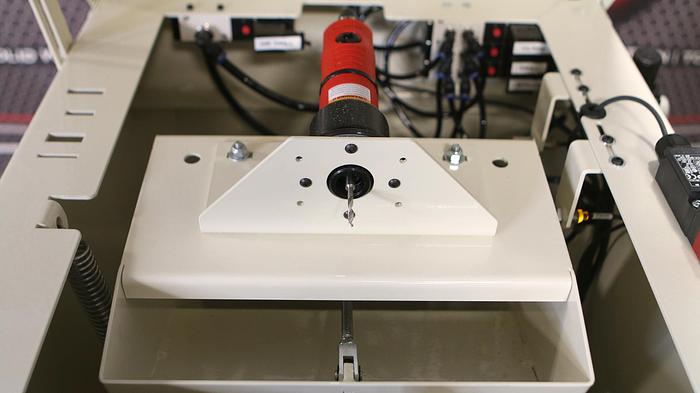

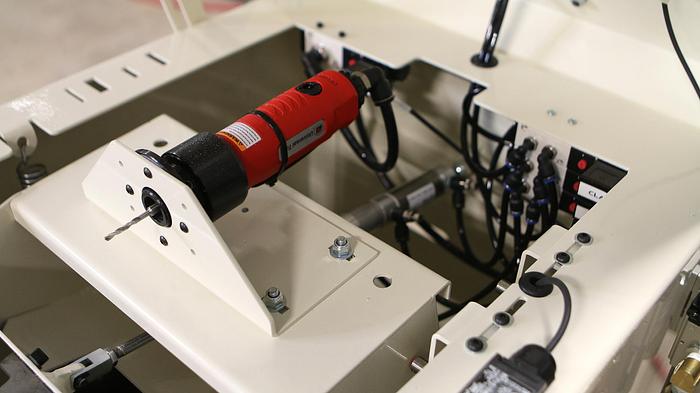

● Drill Bit: 9/64” Brad and Spur TiN-Coated Bit

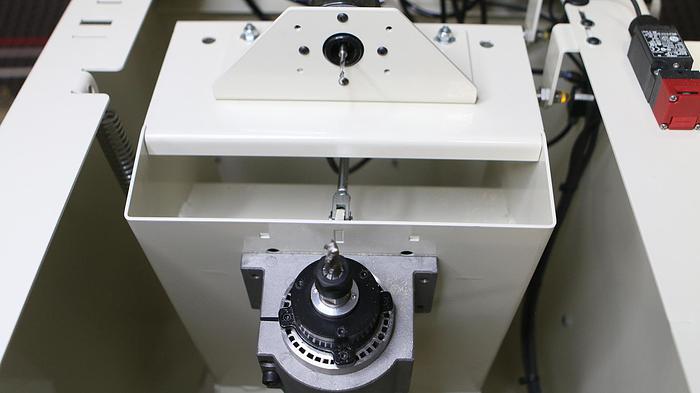

● Router: 24,000 RPM, 8 A, 2 HP

● Drill: 22,000 RPM, 0.9 HP, 5.5 CFM

(Intermittent)

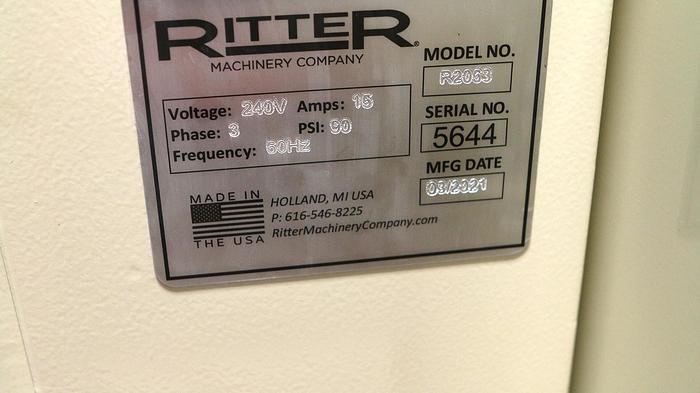

● Electrical: 230V, 3Ø, 10A

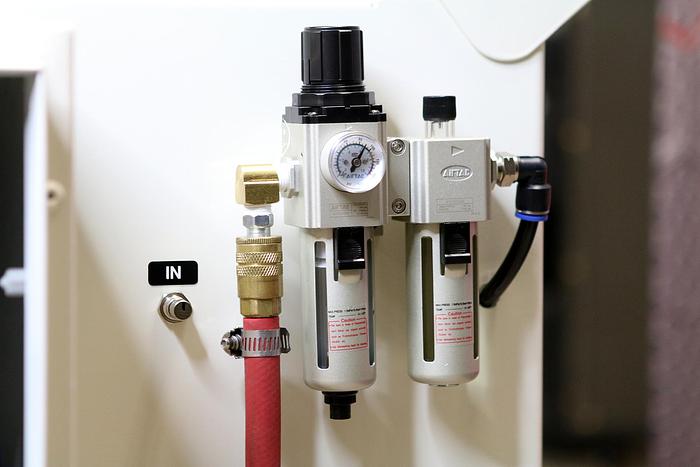

● Air:5.5CFMat80–100PSI

● Work height: 36′′

● Footprint: 27.75′′ x 20.5′′

● Table Area: 15.75′′ x 23.75′′

Shipping Weight: 300 LBS Shipping Dimensions: 38′′ x 25′′

PRICE .........................................................................$7,395.00

This machine is physically located at Scarlett Inc’s showroom in Grand Rapids, MI. Please call to arrange a visit. We are 3.5 minutes from the airport and would be happy to pick you up. Please note that the below description is from the original manufacturer's spec.

For a more detailed description, please call James to discuss if this machine will fit your needs. 616.308.9800
