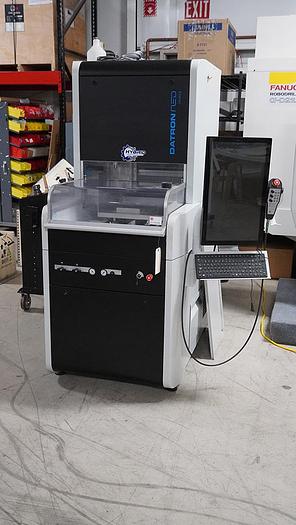

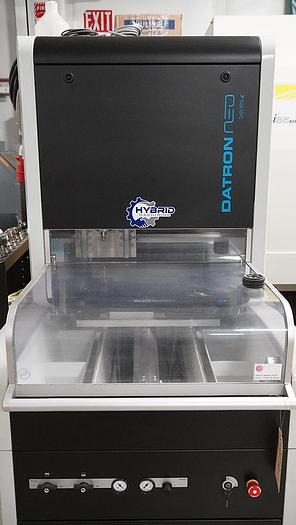

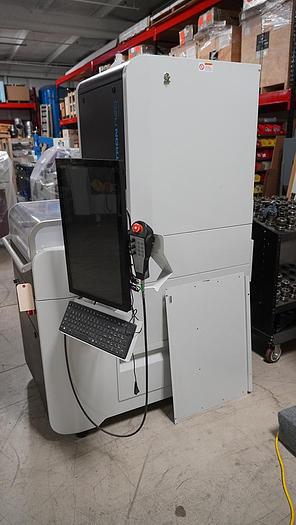

2020 Datron neo+ Series 2 CNC machine

No longer available

2020 Datron neo+ Series 2 CNC machine

Grand Rapids, MI


DATRON neo will make it easier to enter the field of high-speed milling. Thanks to the Plug & Play principle, with this 3-axis milling CNC machine and the newly developed DATRON next software, you can be very productive right from the start, even without previous knowledge of operating machine tools. Ergonomic, frontal access to the working space of the machine enables simple and safe replacement and setting of workpieces, and thus their faster and more accurate machining. In addition, the fully equipped machine can be placed at the installation site through a standard door and, thanks to the minimum installation area, saves space in your workshop.

Obvious at a glance!

  • tiled user interface design with easy-to-understand icons realistic 3D graphics the current machining progress displayed on the status display
  • is visible even from a greater distance

Simple operation

  • intuitive touch control like smartphone camera-supported setting of workpieces with touch gestures functions based on applications

Ideas implemented faster!

  • process speed and simplicity four steps to the finished product compatibility with leading suppliers of CAM systems

Series 2 upgrade

  • more powerful processor workpiece probe with higher accuracy improved spindle cooling unit improved operator terminal holder optional: vacuum pressure monitoring optional: level sensor for the Microjet tank

Technical specificationDATRON neo Series 2

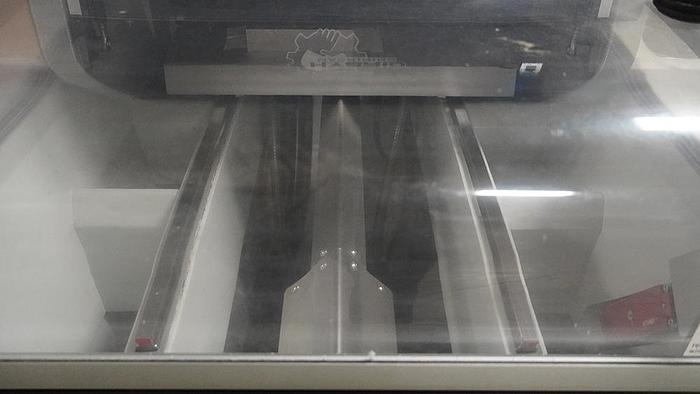

Machine construction portal structure, machine bed made of artificial stone, work table made of aluminum, steel baseTravels (X x Y), travel in the Z axis = 220 mm520 mm x 420 mmPortal light175 mm Built-in dimensions (W, D, H)805 mm x 1,290 mm x 1,880 mm

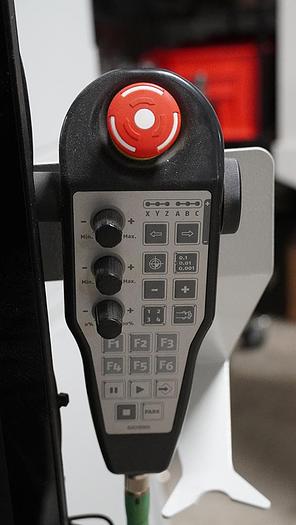

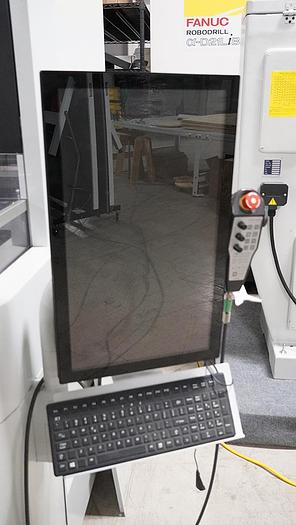

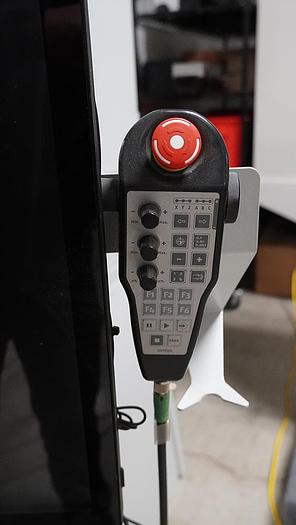

Integrated conical bushings in the tableYesDrive system brushless digital servo drives, direct drive of ball screws in all axesSpindle2.0kW up to 40,000 rpm.Toolbox24 positions, with direct clamping of the tool by the shankMinimum cooling/lubrication systemYesControl, terminal24" Multi-Touch displayComfortable remote controlYesControl system/softwareDATRON nextWorkpiece 3D probeYesPower supply3 x 400 VAC / 16AInput3.5kWCompressed air connection7-10 bar, dry, clean, free of oilFeed in sectionup to 28 m/min fast forward up to 28 m/minWeightapprox. 700 kg


Modelneo+ Series 2 CNC machine
