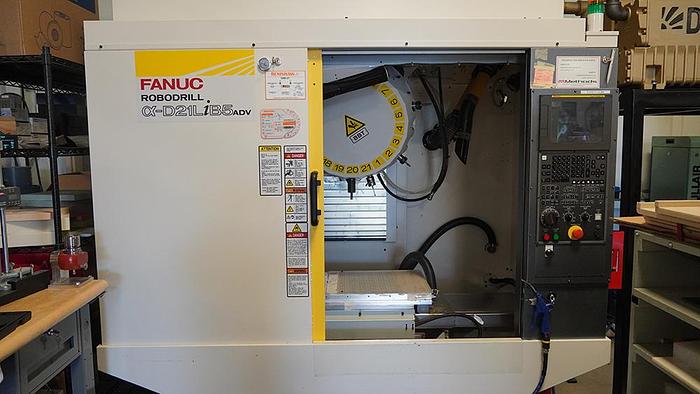

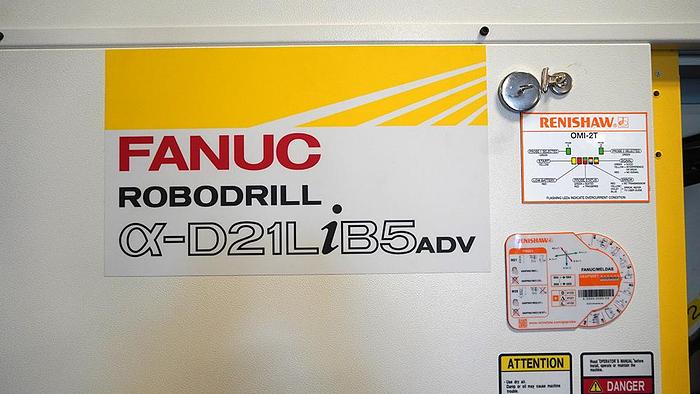

2020 Fanuc ROBODRILL ALPHA D21LiB5 ADV

Distance from Spindle Nose to Table….   7.08” – 22.83”

Fanuc 31i-B5 CNC Control

4th Axis with Rotary Union AVAILABLE, prewired with Drive

Right Side Shutter Door

*** 2,000 Cutting Hours ***

Fanuc D21LibB5-24K_ADV-F001 CNC Vertical Machining Center

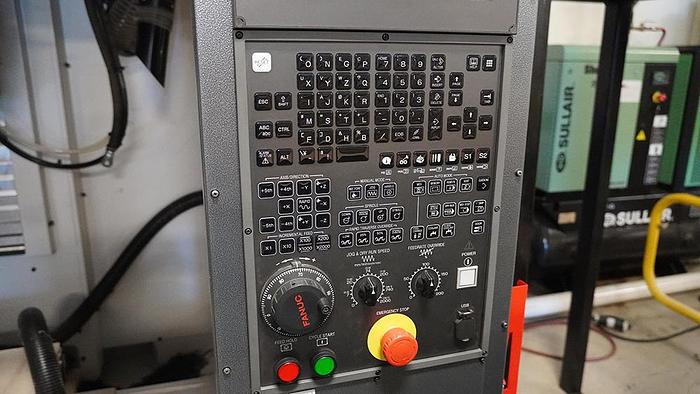

Fanuc 31i-B5 CNC Control, with High Speed CPU & Touch Screen Panel

Axis Travel of 27.55” X 15.74” Y and Extended 15.74” Z

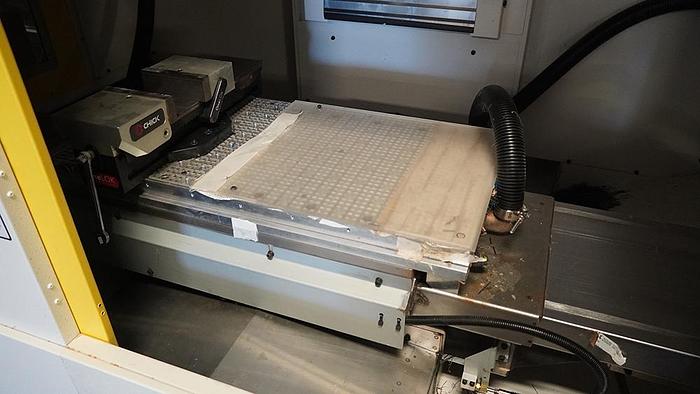

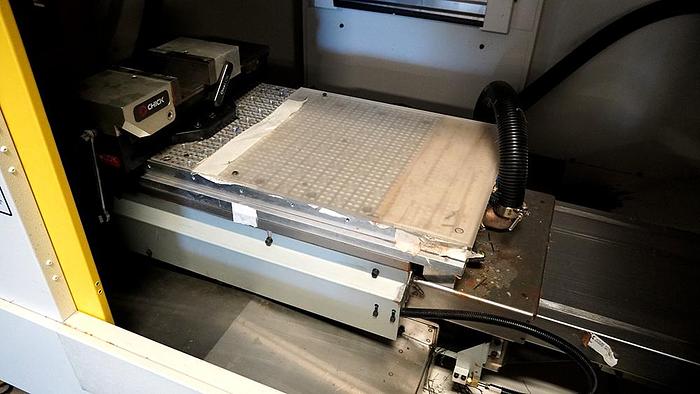

33.46” x 16.14” Table Area, with a 660lbs Load Capacity

24,000 rpm Direct Drive High Power/ Torque Advanced Spindle

BT-30 Spindle Taper with “Big Plus” Dual Contact Spindle

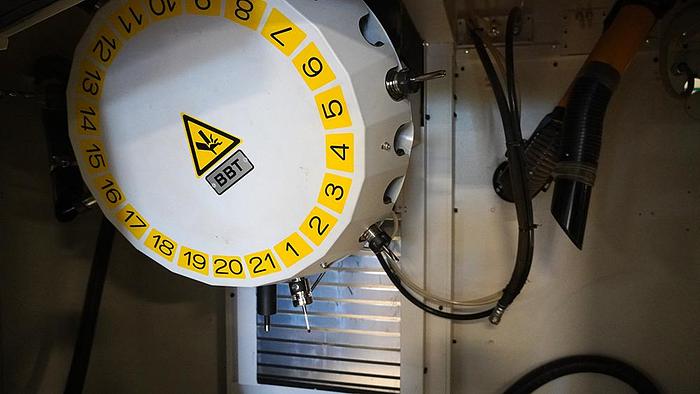

Servo Driven 21-Postition, Bi Directional Tool Changer

200L Coolant Tank and Spindle Coolant Nozzle

1,000 psi Coolant thru Spindle Ready

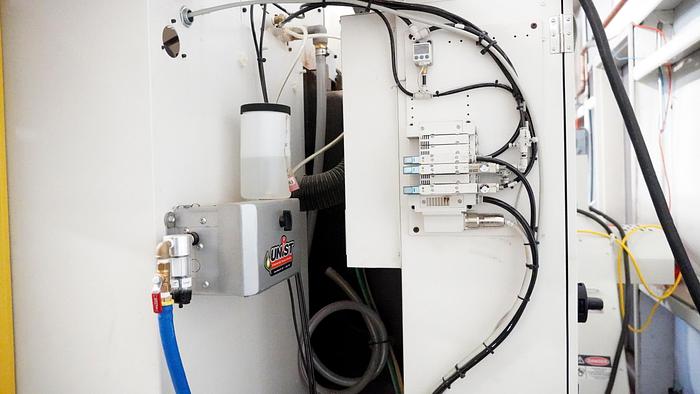

Auto Lube, Advanced

AI Tool Monitor

Basic Metal Top Cover

Mist Buster 850 Mist Collection Unit (#MMT-27792)

OTHER ADDED ACCESSORIES

Renishaw Quick Set-up Package (OMP-40 & OTS) Includes Macro Programs, M code, skip function, Optical Probe, tool Holder, broken tool detection, auto tool length/diameter with Optical Transmission

Air Thru Spindle

Spindle Air Blow for Chips-manifold mounted behind spindle

Lube USA Grease pack option

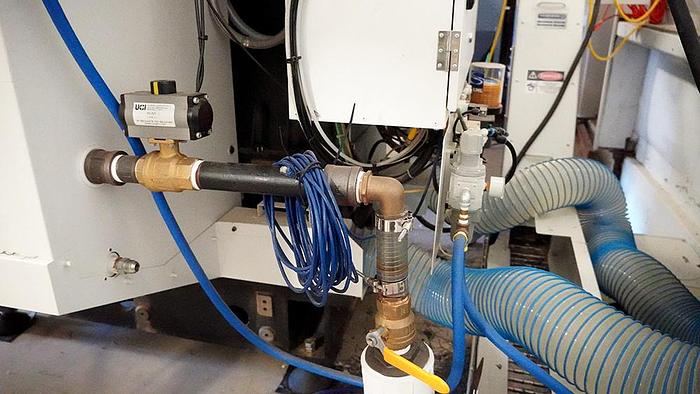

Turret to table Piping Vacuum Arm Assembley

Trodemaster Top roof Plenum for Vacuum Arms

Triple Alarm Lamp LED

Automatic Door, Front Opening, Pneumatic- Long Bed

Clamp/unclamp for Fixture, Pneumatic, M-code activated

Henning Chip Conveyor-Standard Hinge BELT Style for course steel chips, 227 liter  /60 gal tank, Left Hand Discharge

Bed Flush system- mounted to 227 liter tank including additional coolant pump, hoses, flush bars wiring and wash down gun, Long bed.

Robodrilll Tool Holder Program$5000 value.

$42,600 in Extras
