2023 Atech CRATER-06 AP AUTOMATIC 20” STRAIGHT UPCUT SAW WITH AUTO FEEDING (SERVO SYSTEM)
No longer available
2023 Atech CRATER-06 AP AUTOMATIC 20” STRAIGHT UPCUT SAW WITH AUTO FEEDING (SERVO SYSTEM)
$41,250 (USD)
Location:Grand Rapids, MI
Description

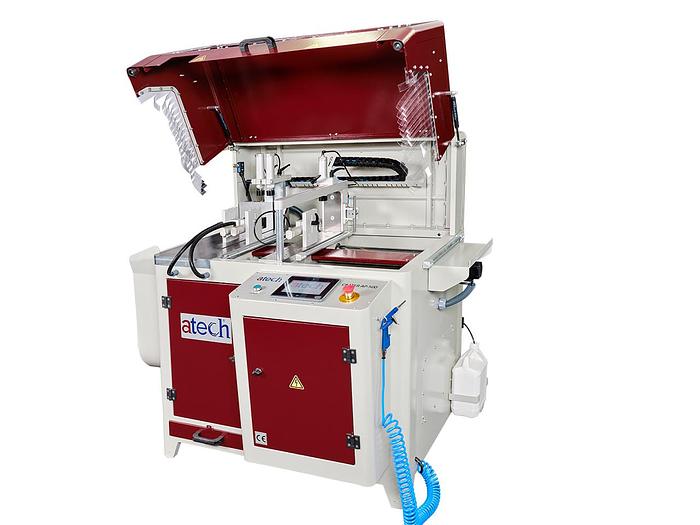

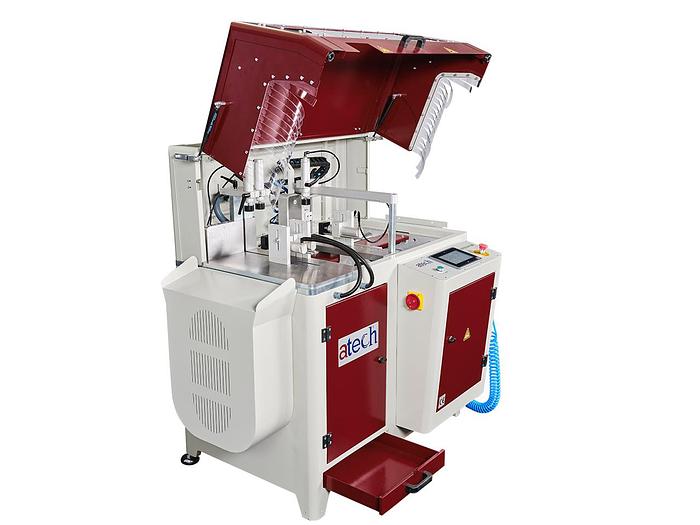

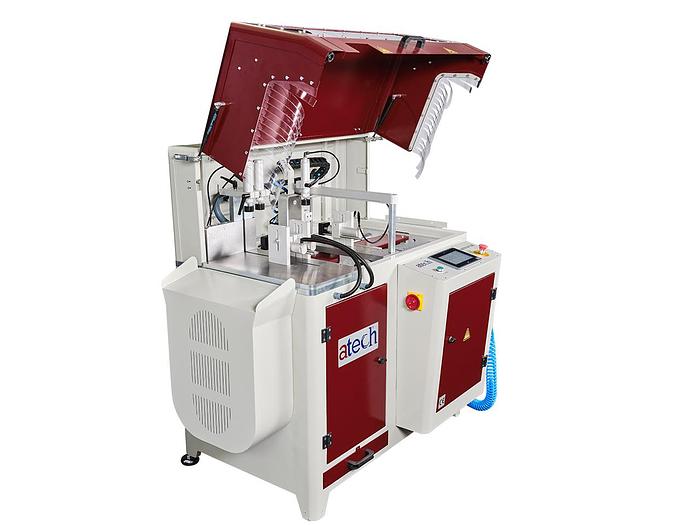

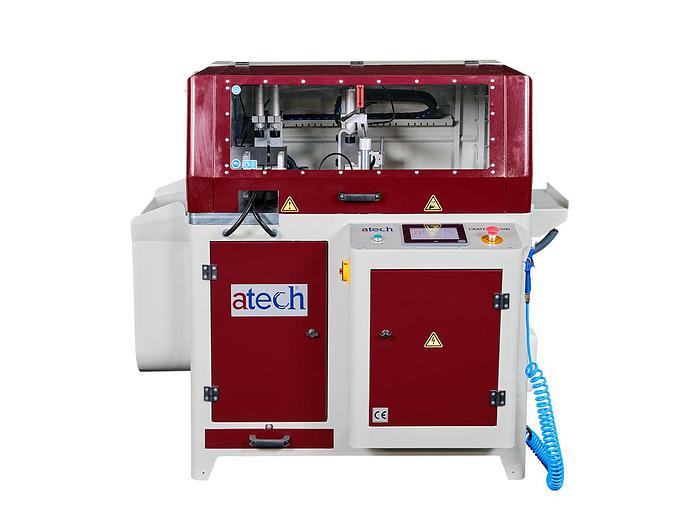

CRATER-06 AP has been designed for straight cut operations of large size of aluminum and vinyl profiles. It is equipped with a 20” (500 mm) carbide tipped saw blade.
It is ideal for serial and precise slicing operations.
- Ideal for high-volume slicing of aluminum profiles for window manufacturing and other industrial applications like storefront and curtainwall.
- High precision servo motors and internationally recognized top brand components
- Saving of time thanks to servo controlled profile infeed speed and saw blade stroke

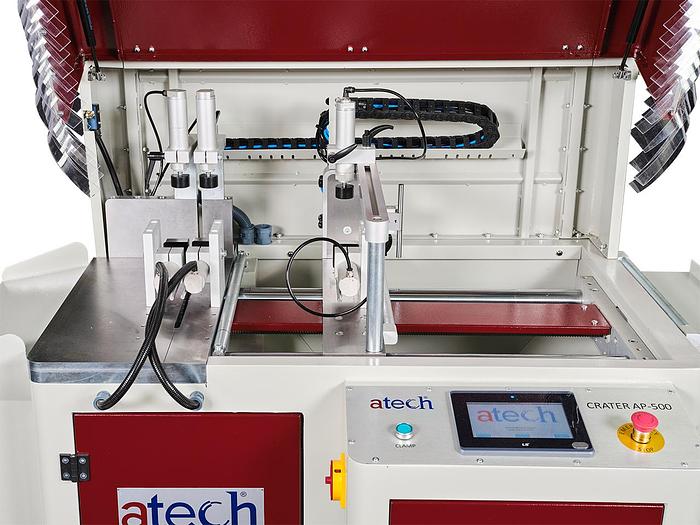

- Horizontal and vertical clamping of the profile during the sawing operation
- Automatic table retraction feature that moves the cut material a small amount after cutting and before the blade comes back down to prevent the re-cut & scratches
- High cutting accuracy by means of robust mechanical structure
- Programmable spray mist lubrication system via control panel
- Large memory capacity for cutting programs
- The machine shuts down automatically after reaching the input cutting quantity

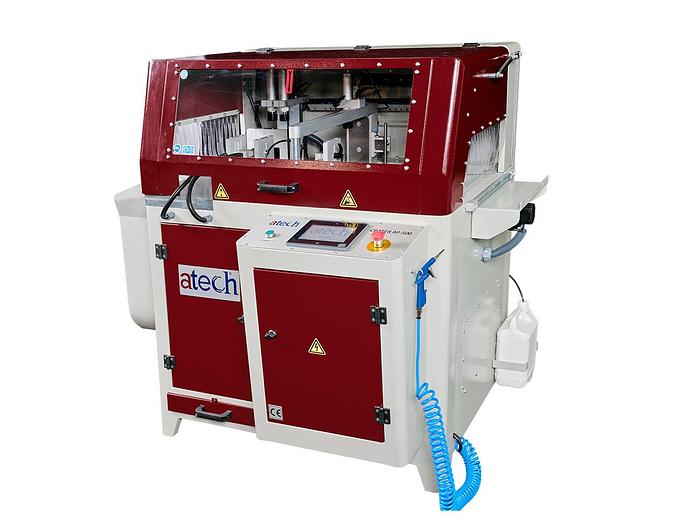

- Operator safety guard equipped with lock on switch
- Feeding distance per cycle ( 5 – 600 mm). No limit for max. dimension.
- Minimum cutting length : 5 mm and unlimited for the maximum cutting length

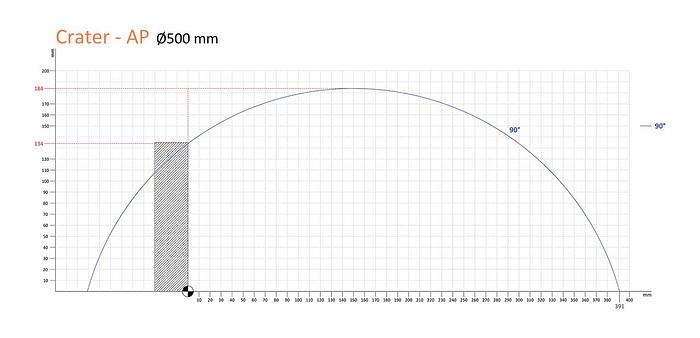

- and max. clamping capacity: Height 5 mm , 170mm (6.7”) / Depth 5 mm, 270 mm (10.6”)
- Interior LED lighting
- Idle Material Infeed Speed: 10,000 mm/min.
STANDARD EQUIPMENT
- Roller conveyor
- 500 mm (20”) carbide tipped saw blade
- Pneumatic spray mist lubrication system
- Ball screw lubrication system
- Air gun
- 3xhorizontal clamps
- 3xvertical clamps
OPTIONAL EQUIPMENT
- Additional 500 mm (20”) carbide tipped saw blade
- VCE 1570 chip collector
- Bundle cutting kit
Specifications
Manufacturer | Atech |
Model | CRATER-06 AP AUTOMATIC 20” STRAIGHT UPCUT SAW WITH AUTO FEEDING (SERVO SYSTEM) |
Year | 2023 |
Condition | Used |
