The Pro provides the most options in the Index series of CNC dowel insertion machines which makes it an excellent choice for dowel insertion, machining for RTA fittings, drawer parts, frames, confirmats and all production requiring multiple boring patterns and hole sizes. The Index Pro also provides routing and grooving options.

The Pro has the added advantage of incorporating horizontal and vertical drilling units with three to seven individually programmable boring spindles each. This provides your production the most flexibility in a CNC dowel insertion machine.


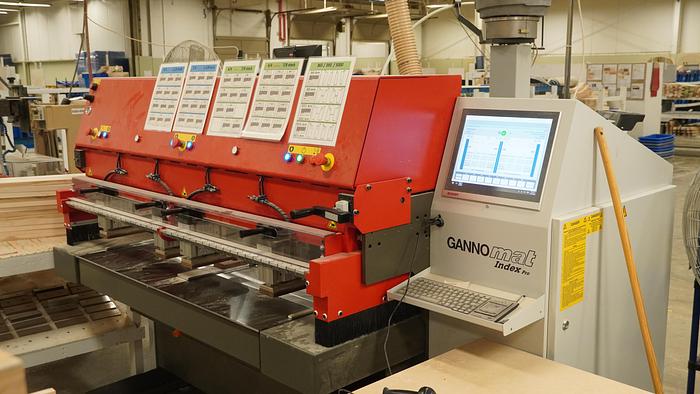

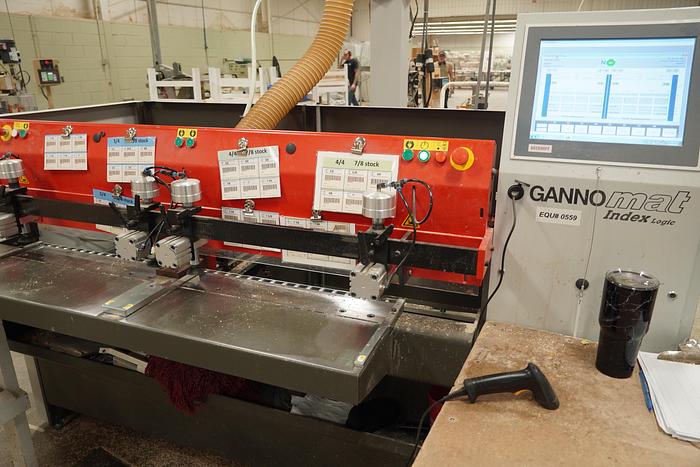

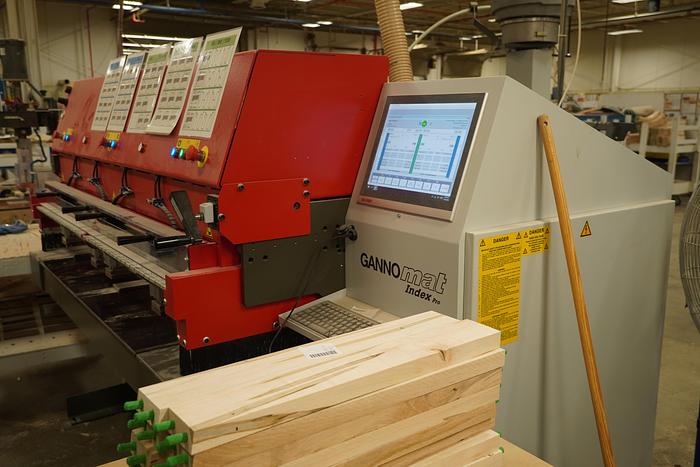

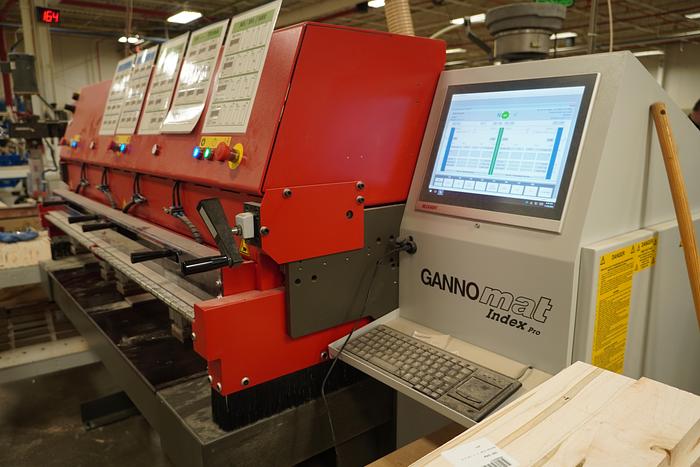

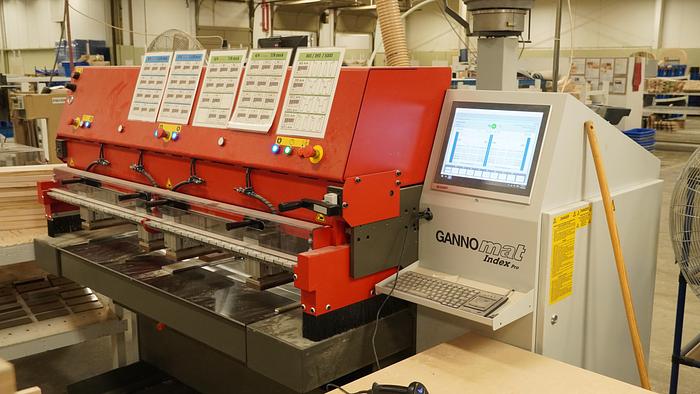

Gannomat Index 130 PRO

Standard Machine Equipped:

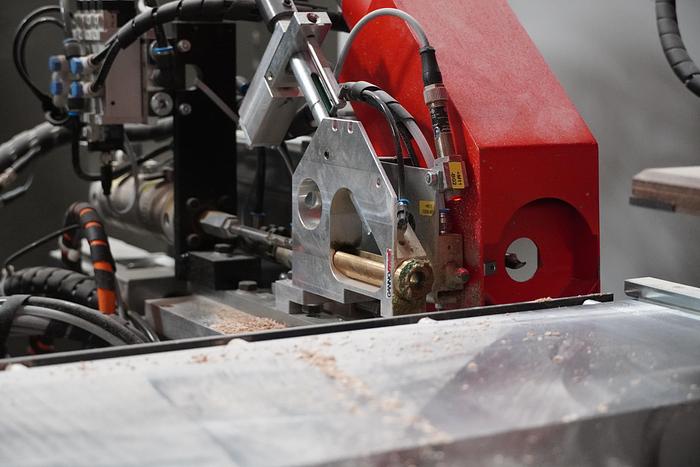

Boring/Inserting aggregate travel on profile bearing guides

• 1 Single spindle boring unit, motor 1.1 kw, spindle speed selectable through software (3000/5000/8000 rpm)

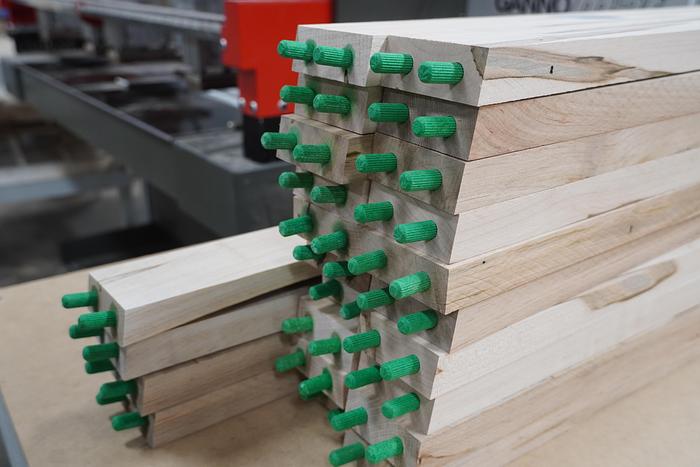

• 1 Blowing, gluing, dowel inserting unit for a single selected dowel 6 - 12mm diameter, 25 - 60 mm length

• Fully automatic electronically controlled central lubrication

• X-axis NC controlled, maximum working width 1300mm, travel speed 78m/minute

• Z-axis manual setting by digital counter, position from 5 - 40mm

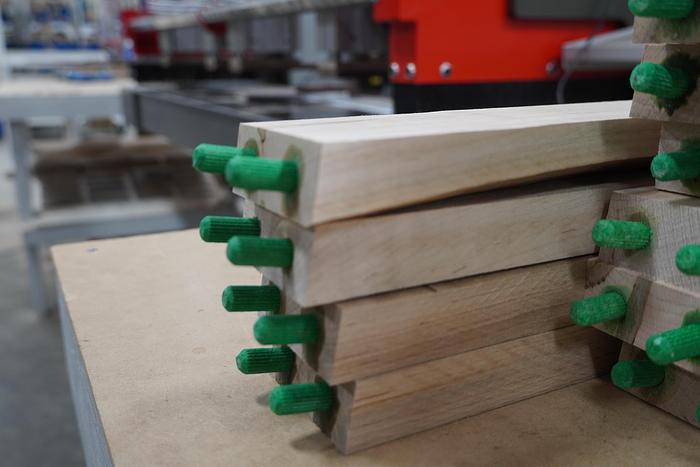

• Outstanding dowel length, 7-20mm (or 17-30mm), setting by digital counter, boring depth 0-35mm (by drill bit length TL 70mm) automatically calibrated to outstanding dowel length

• Closed gluing system with 6 bar glue pressure

• Variable setting of glue amount by computer control

• Selector switch GLUE/WATER for quick rinsing of entire system

• 1 Stainless steel container for 1½ gallon glue and 1 Stainless steel container for 1½ gallon water

• Glue control warning light indicating low volume in the glue container

• Stopping system (side fences) consisting of:

• 1 Right-hand stop, 1 left-hand stop, and 1 center stop, all removable

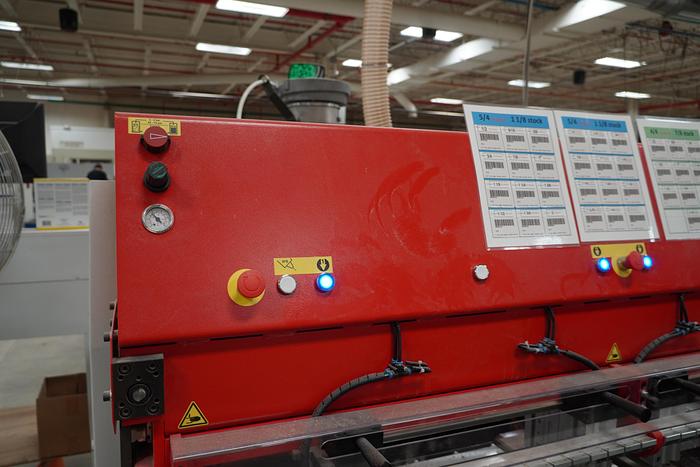

• 4 Starting buttons for individual processing of 1-4 work pieces

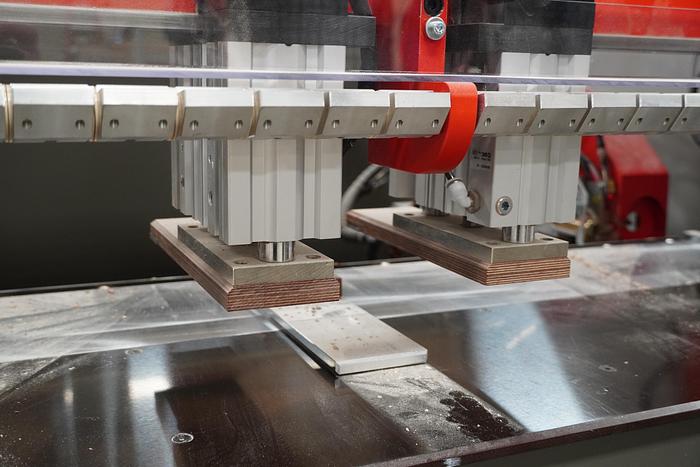

• 8 Pneumatic clamping cylinders for work piece thickness max 80mm, work piece length minimum 70mm

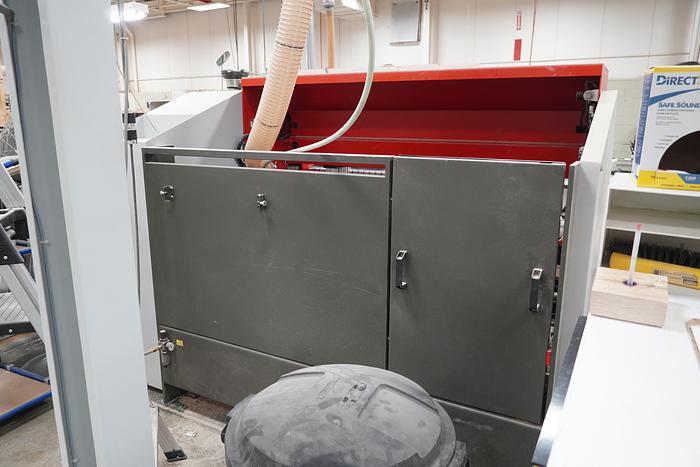

• 1 Exhaust ducting, with connection diameter 80mm (Additional depending upon options.)

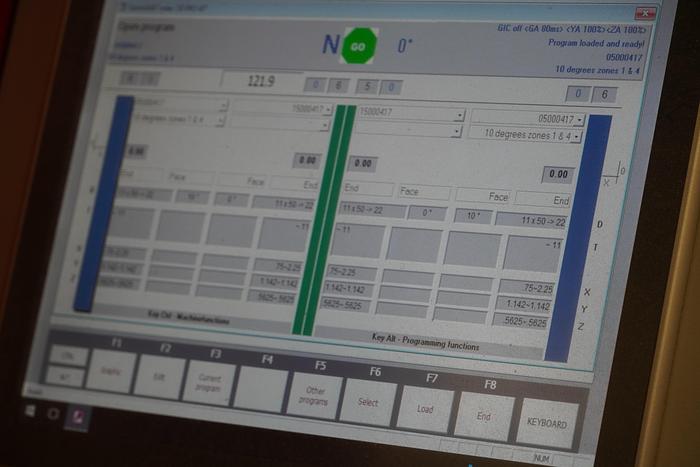

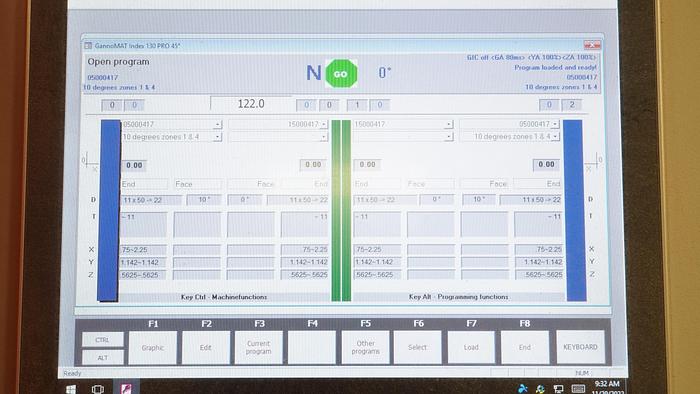

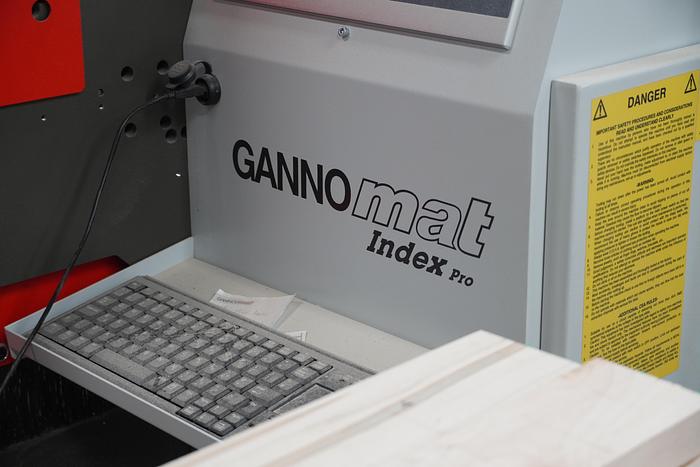

• Programming by menu-based software; boring patterns variably programmable by Absolute-Relative-Pitch; automatic mirror image programming, work piece optimization; 4 working zones can be operated with different programs; graphical work piece image; parametric programming; programmable job list

• Clear text on-screen identification of program errors and supporting photo documentation

• Industrial PC, soft PLC type Beckhoff TWINCAT; temperature range 0 - 50˚C; TFT display 15” touchscreen resistive; resolution 1024 x 768; CPU 2 GHz, 256 MB RAM; 2x network-interface adapter,

• IDE- harddrive; 1x USB on the front, 4x USB on the back.


Operating system: WINDOWS 10

• Video documentation as supplement to operating instructions

• Network software and barcode software


Included Options:

• Transformer 5KVA (FEOC580) for special voltages (e.g. 210/230/440/480/575 V/3 Ph/60 c.p.s.)

• Electronic inductive glue insert control system (G.I.C.) for monitoring glue injection

• Z-axis NC controlled, with ball screw and dynamic positioning, travel speed maximum 150mm/sec. through software, for horizontal boring unit position from working table 5-50mm.

• Existing dowel inserting unit for dowel Ø 11, 11 x 45 mm ( instead of standard dowel Ø 8 x 35 mm)

• Existing dowel inserting unit for outstanding dowel length 15- 28mm ( instead of standard 7-20mm)

• Upgrade: motor to 1.5kW for drilling of solid wood

• Dowel hopper feed with separate stand for dowel diameter 11,11mm and dowel length 45mm

− Includes: Mirror at the hopperfeed, for control of dowel amount

• Upgrade of standard clamping cylinders - 8 pieces clamping cylinders slanted in STRONGER VERSION with Ø 70 mm (instead of standard Ø 50 mm), for higher clamping force

• Center fence with a width of 80mm, instead of standard 20mm, so small strips can be clamped to center fence

• Upgrade - 8 clamping cylinders – 90 degrees

• Upgrade to stronger clamping beam



Included Options (continued):

• Continuous front stop, manual height adjustable from 0 till 7 mm, splitted in the center (instead of standard aluminum excenter stops)

• Clamp cylinders with STROKE 50 mm incl. pre- and mainpressure-system (For workpiece thickness from 5 - 40 mm without setup time)

• Safety package with 2-hand-start for 4-Field-Operation


Special Option for NC Controlled Angle Adjustment - Included:

• NC controlled angle adjustment 0-45° for drilling/gluing and dowel inserting aggregate, including: Y-Axis NC-controlled,

with ball screw Retractable close-range glue nozzle for 6 bar glue system


PRICE NEW: $120,320.00


Current Price $90,000 and accepting all reasonable offers.


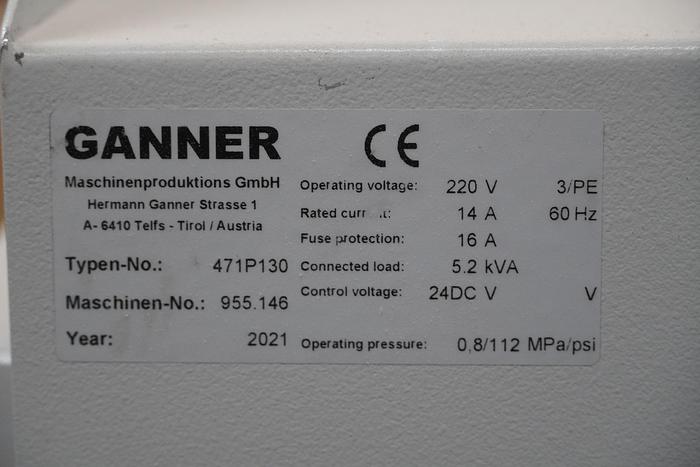

Specifications

ManufacturerGannomat
Modelindex logic pro
Year2021
ConditionUsed
