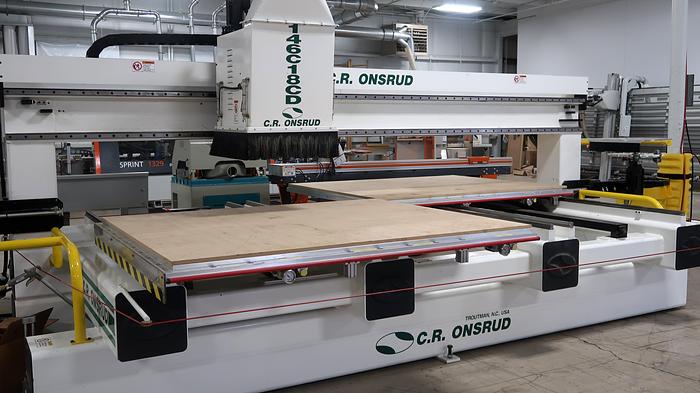

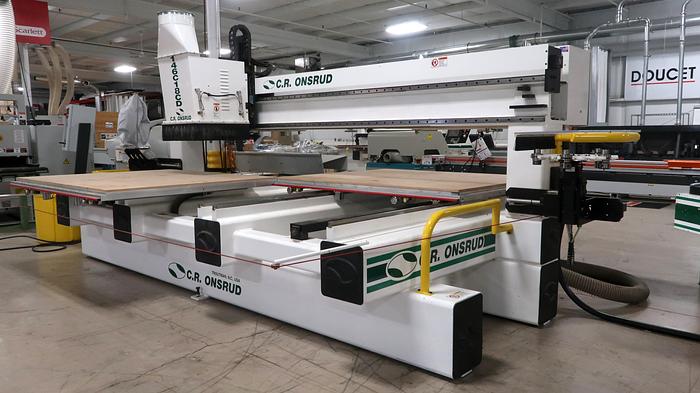

2007 C.R Onsrud 146C18CD

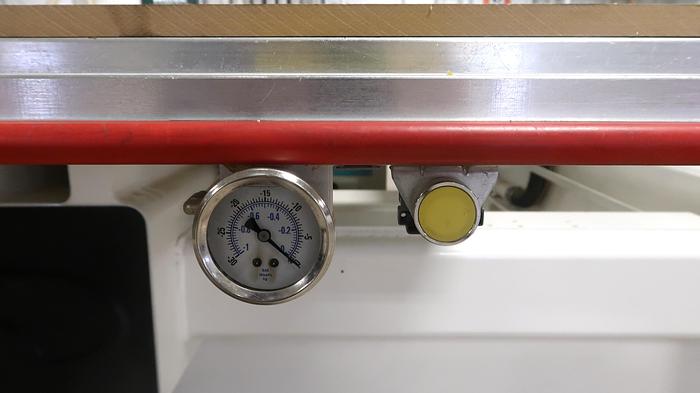

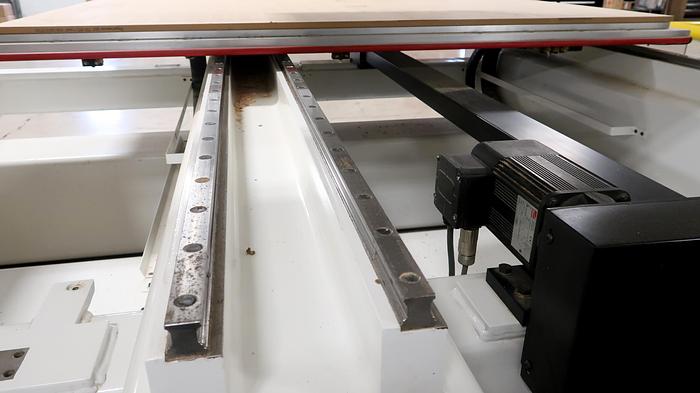

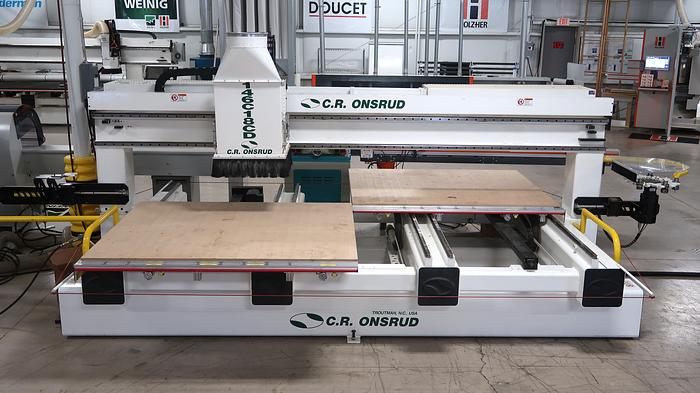

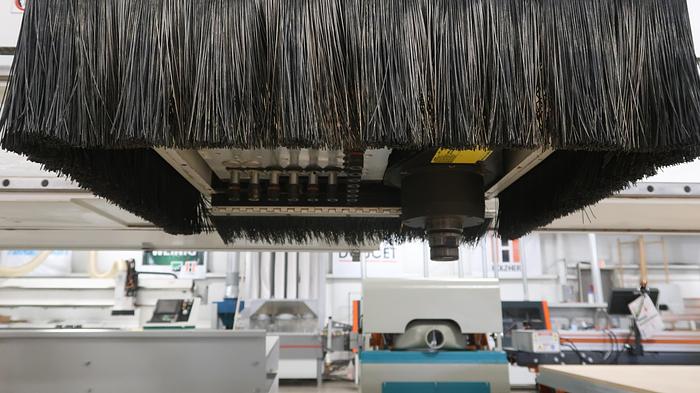

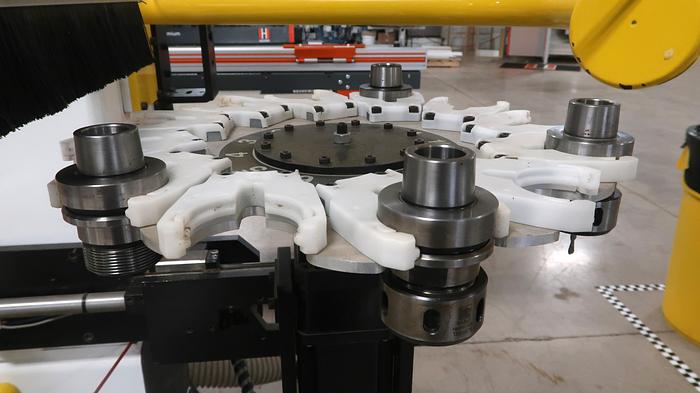

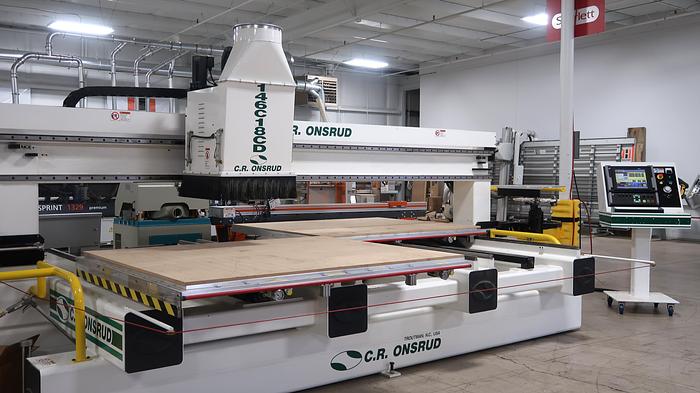

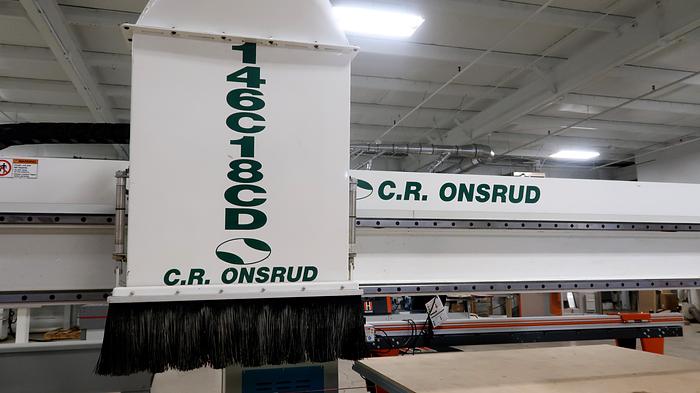

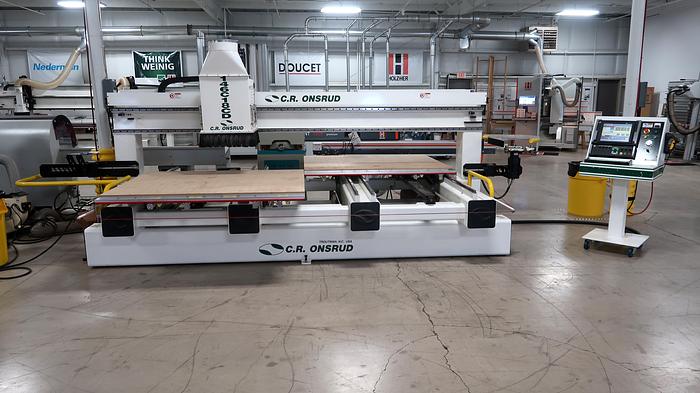

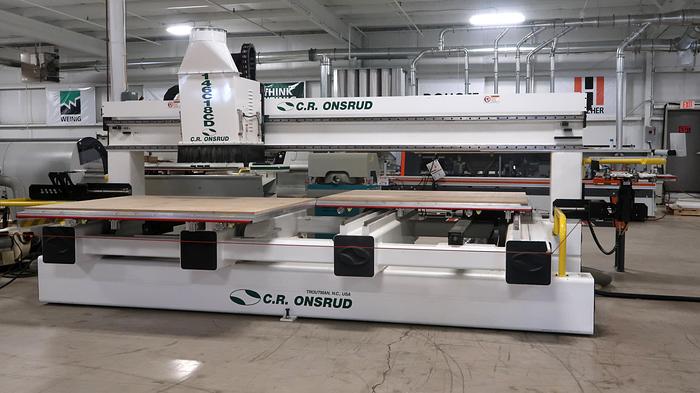

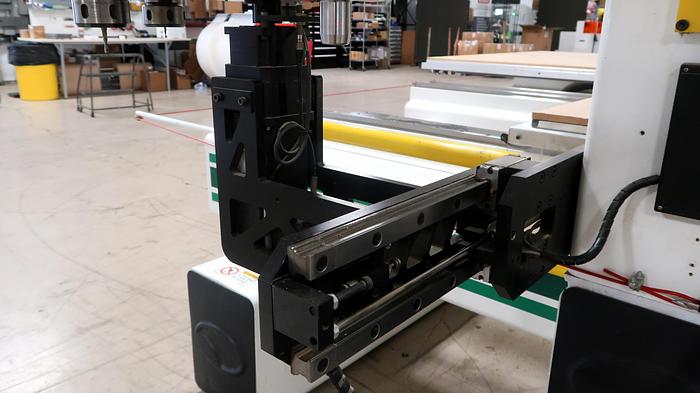

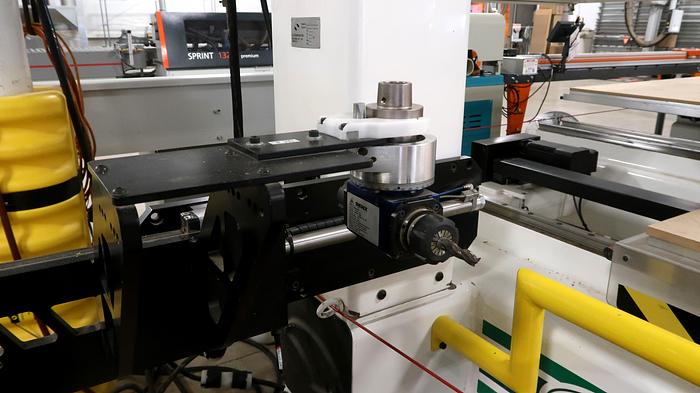

2007 C.R. ONSRUD MODEL 146C18CD “Super Duty” CNC ROUTER (61″X146” axis travel) – with: Thick Cast-Iron Fixed Bridge & Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 3600″ per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 10′ x 17′ footprint, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, 4-Pole 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, 12 TOOL – AUTOMATIC TOOL CHANGER. TWIN ALUMINUM TABLES function as an independent 61″ x 97” & an independent 61” x 49″ table. Each table has low vacuum sensing safety shut-off with override capability. Twin Tables can also operate in tandem as a single 61″ x 146″ table, with full table coverage. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems. All tables include pressure sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable. OSAI 10/510i Machine Controller System Upgrade With Integrated PC Interface – OSAI Numerical Control with OSAI “Win-NBI” PC Interface, High-Res touch screen, network capability, plus adds OSAI Digital Drives & Servos. Provided with 4-port network hub (requires 460V out isolation transformer) HSK-63 Spindle Taper & Tool Changer Adapter High Speed – High Production – Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled. The design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. C-Axis Ability for Use With Aggregates – Adds a continuous rotation, rotational C-axis to Aggregate Tool Changer & Capability (Price Includes Aggregate Anti-Rotation Spindle Adapter Ring Option) Automatic Aggregate Tool Changer & Aggregate Capability – stand-alone, single pocket, 13th position tool changer with aggregate anti-rotation spindle adapter ring to make machine fully aggregate capable – (for use with or without C-axis Ability below) N/A on machines w/2-12 pos ATC’s 9 Spindle Drilling Block Package – (Multi-Spindle Line Drills) Includes 9 independent or simultaneous firing vertical spindles arranged to drill up to 5 holes at a time in the X axis or 5 holes at a time in Y axis Onsrud / NEMI High-Precision Vacuum Grid Table – Aluminum NEMI Grid table Pneumatic Controlled Vacuum Switches – (One for each table or zone). Controlled via either touch screen or M-code on OSAI machines. Dust Transition Kit – (appropriately sized dust transition provided for connecting to your dropped-in flex hose) CR ONSRUD High-Flow Universal Vacuum Table System – Includes: oversized 4” intake manifold, high- capacity vacuum plumbing, high-flow 1” grid waffle patterns, & equipped with choice of suck-thru or dedicated spoil boards. *Vacuum Pump available to add for additional cost. Call For PRICE: James Scarlett 616-308-9800
