2014 Holzher Streamer 1057

No longer available

2014 Holzher Streamer 1057

$41,000 (USD)

Grand Rapids, MI

Description

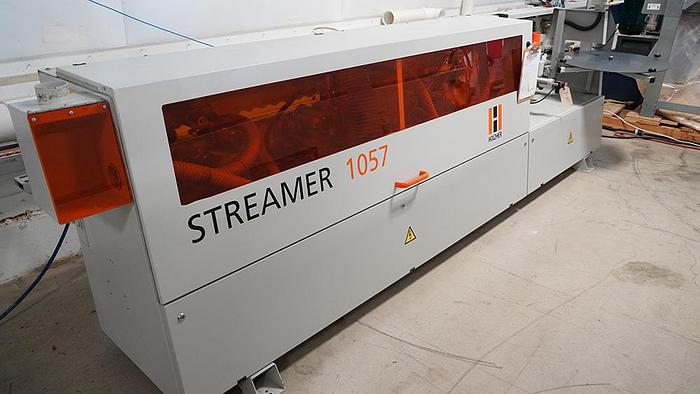

Used Holzher Edgebander - Model 1057 Streamer

Year: 2015


This machine is physically located at Scarlett Inc’s showroom in Grand Rapids, MI. Please call to arrange a visit. We are 3.5 minutes from the airport and would be happy to pick you up. Please note that the below description is from the original manufacturer's spec.


For a more detailed description, please call James to discuss if this machine will fit your needs. 616.308.9800


This used edge bander manufactured by Holz-Her features advanced technology with a CLOSED APPLICATION SYSTEM in which the glue is enclosed in an air-tight chamber and cannot oxidize, discolor, burn, or become contaminated with wood dust. This allows for optimum glue adhesion. Additionally, the glue is applied to panel by a patented GLUE JET NOZZLE for panels 6-60 mm thick, with precise control of all functions including beginning and end.

Basic Machine Specifications:

  • Pre-Milling (FG201) with diamond tooling
  • The magazine for coil and strips (1903)
  • GluJet-S with hybrid technology (GJ-201)
  • Pressure Section (1912-3)
  • 2 Motor End Trimming (1918P)
  • Top and Bottom Trimming (FR201)
  • Profile Scraping (1929) • Buffing (1940)

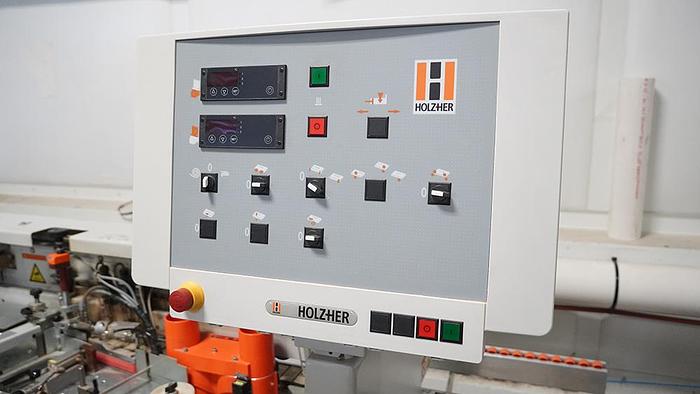

  • Manual control panel
  • Conveyor speed 10 m/min.
  • Edge thickness 0.4 - 6 mm.
  • Panel thickness 6 - 60 mm.
  • One (1) centrally located hand wheel for raising and lowering of the top pressure beam.
  • Fixed workpiece support at 380 mm
  • Manual central lubrication of the transport chain
  • Machine Size Requirement: 4425 mm / 174 in. 1410 mm / 56 in. 1610 mm / 63 in. 0.4 – 6 mm / .02 - .24 in. 65 mm / 2.5 in. Min. 350 mm (13.78 in) - Unlimited Min. 65 mm / 2.56 in 6 - 60mm / .23 – 2.36 in. 10 m/min / 32.81 ft/min
  • Electronic Control System Pre-Milling SystemI (FG201)
  • Patented ProLock clamping system for rapid tool changes
  • Two powerful motors 200 Hz 12 000 rpm
  • 2 diamond cutters Ø70x48x30mm
  • 1x 1 2 Kw cutting counter-clockwise
  • 1x 0 8 Kw cutting clockwise
  • Manual adjustment for cutter head position
  • Max. stock removal: Max. 3 mm milling on panels 6 -22 mm Max. 2 mm milling on panels 22-40 mm Max. 1 mm milling on panels 40-45 mm
  • Edgefeed Magazine (1903)
  • Fully automatic feed of coils and strips
  • Utilizes motion detector to ensure accuracy
  • Trouble-free positioning of edge material.
  • Exclusive “TRACTOR-BELT” feed system to ensure accurate trouble-free feeding of edge material and optimum operator safety.
  • Magazine table on rollers for smooth feeding of coiled material.
  • Automatic guillotine for coiled material up to 3.0 mm. Version 15.6
  • Easily set glue temperature with dual controls
  • Simple off/on control switches for all units
  • Magazine selector switch for coiled or strip edgebanding
  • Prominently positioned for easy access
  • GluingStation – GluJet-S with hybrid technology (GJ-201)
  • Fastest heat-up time in the industry 2 - 3 min.
  • Fastest & easiest glue color change 5-10 min.
  • Can utilize and process all glue types as standard (EVA, PUR, PO)
  • Equipped with HOLZ-HER'S exclusive patented "CARTRIDGE" glue system.


Specifications

ManufacturerHolzher
ModelStreamer 1057
Year2014
ConditionUsed
