2021 Weinig profimat 50

This machine is new with 0 Hours.

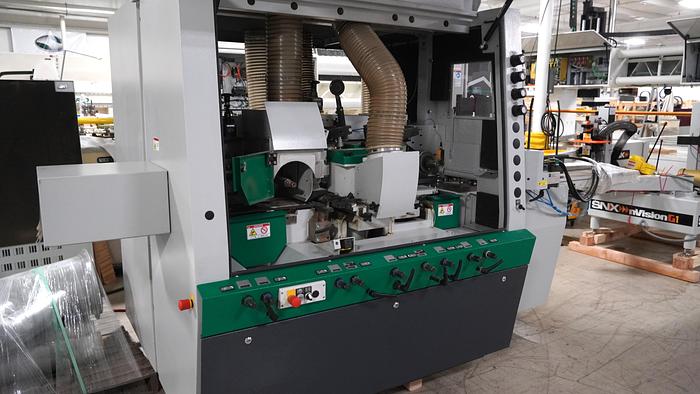

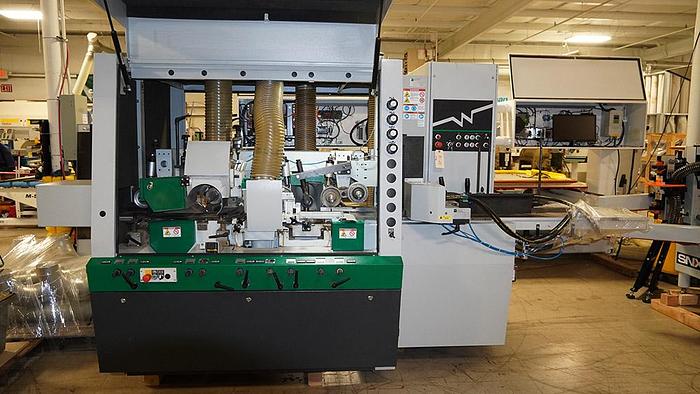

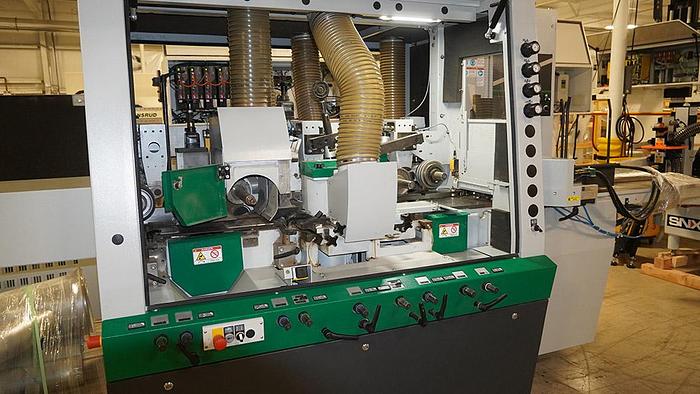

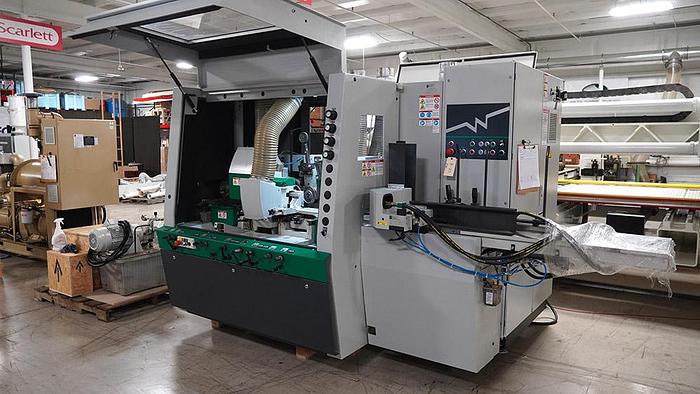

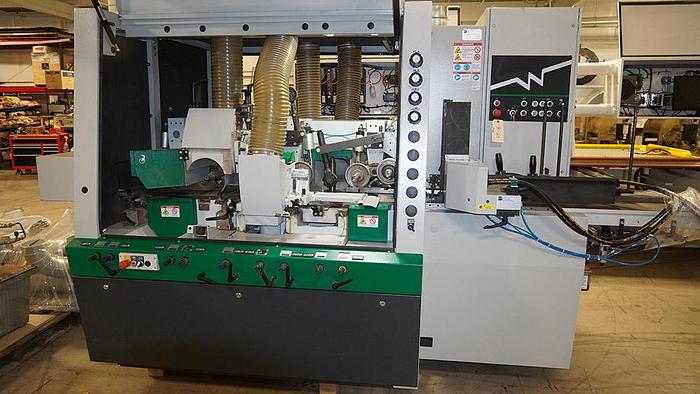

Weinig Profimat 50 Moulder 2021

Thanks to its compact, robust design and the omission of unnecessary features, the Profimat is surprisingly durable and requires little maintenance. And if you have big things to accomplish, the Profimat is available with an optional working width of 260 mm. The standard width is 230 mm.

SMOOTH AND PRECISE – IN A SMALL SPACE

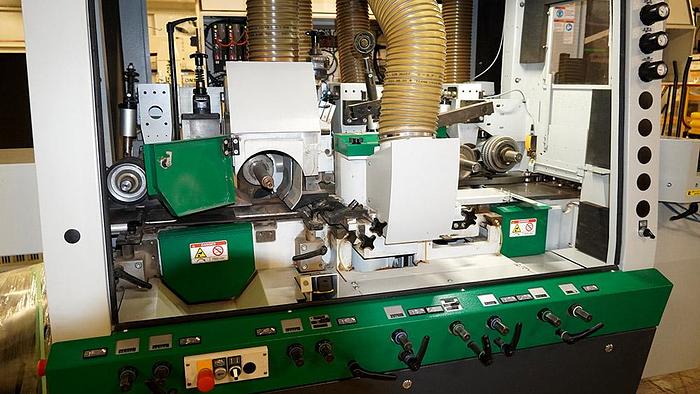

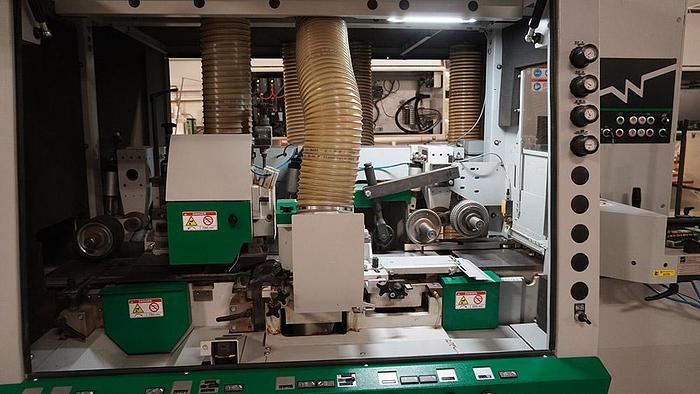

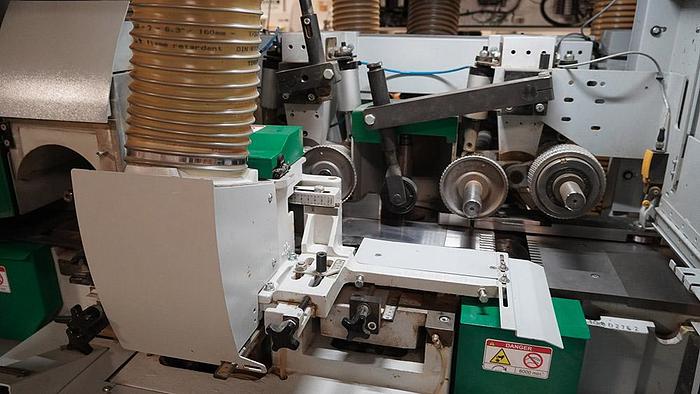

With its robust cast iron machine base and spindles in proven WEINIG quality, the Profimat ensures a high surface quality of all workpieces.

Yet the new Profimat does not require more space than comparable predecessor models, thanks to its compact design.

MAXIMUM COMFORT, SAFETY AND EFFICIENCY,

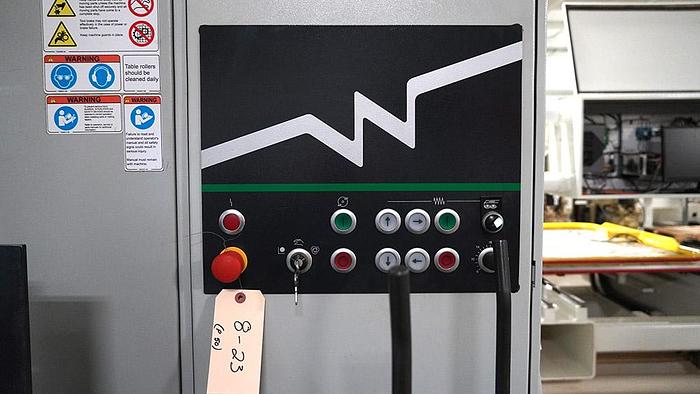

The intuitive operability of the Profimat ensures short setup times, high user safety, pleasant operating comfort and consistently safe working. The Profimat is surprisingly energy-saving which may be supported by subsidies or grants.

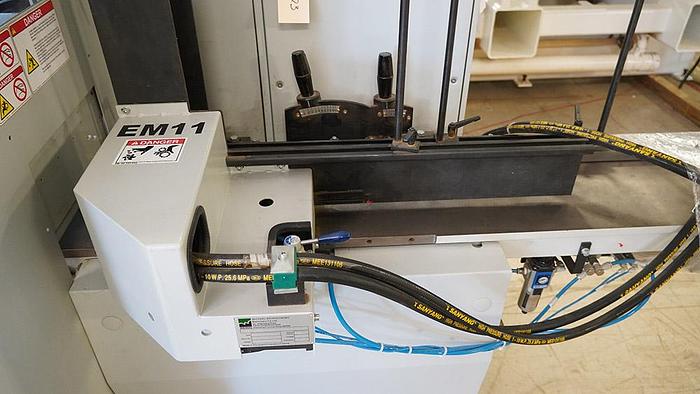

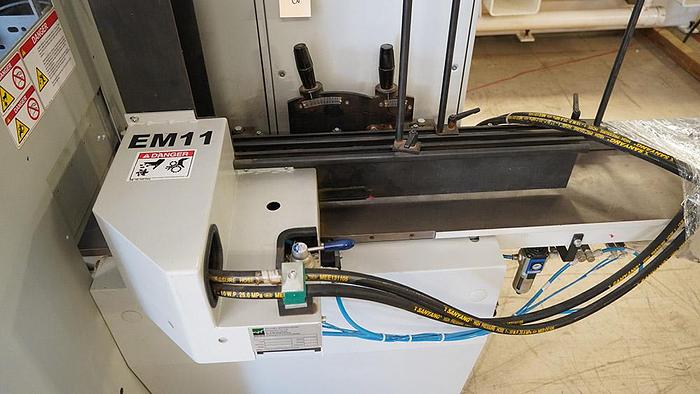

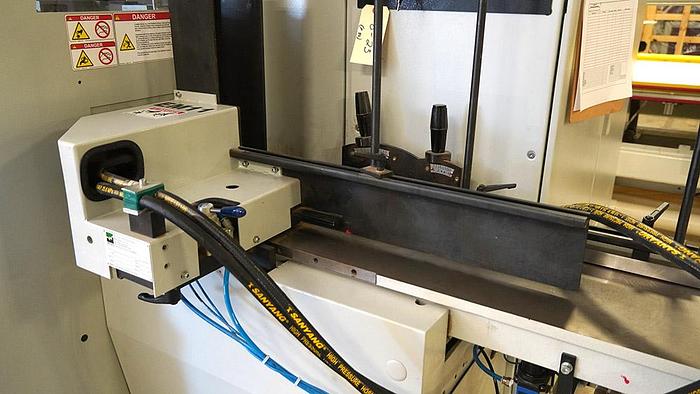

• EM11 STOCK FEEDER
• Universal hopper feed that can be mounted to all moulders.
• 3/4" to 9-1/2" Max. width, 0.38" to 5" max. material height, 10" min. length.
• Oil free air operated drive unit, positive sensing sequencing actuator, variable speed range 0 to 60 FPM.
• Includes: All air logic controls and air filters (no power, 80-120 PSI compressed air required).
• Easy to install and mount with mount bracket for WEINIG series moulder.

Technical data

• feed: 5-30 m/min
• rotation speed: 7,000 rpm
• Spindle patterns:
• U-R-L-O-U
• U-R-L-O-U
• working width: 20-230 mm
• working height: 10-160 mm
• spindle diameter: 40 mm

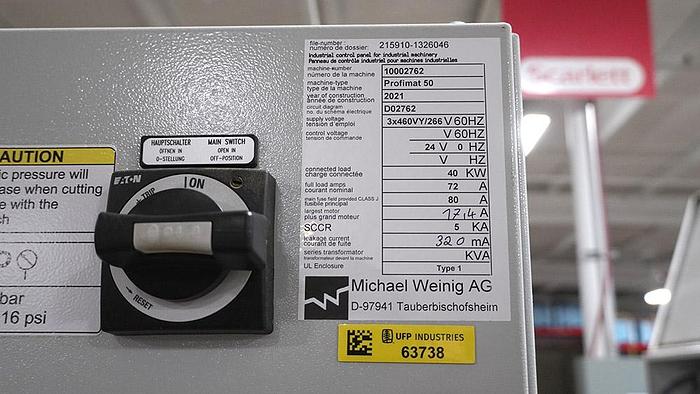

• operating voltage: 400 V, 50 Hz
• dimension (LxWxH): 3,820 x 1,954 x 1,900 mm
• EM11 stock feeder

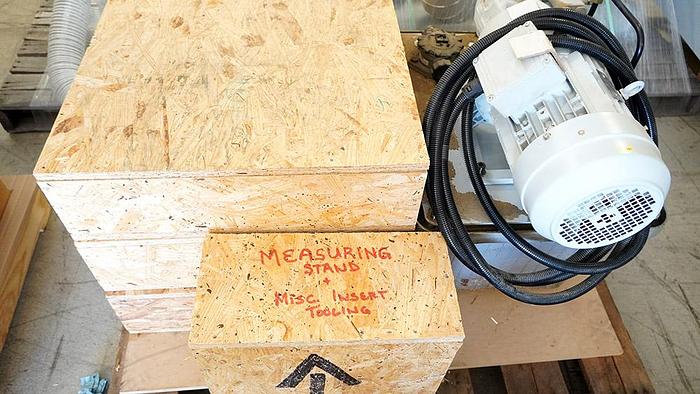

• Measuring stand
• misc tooling

$69,900
