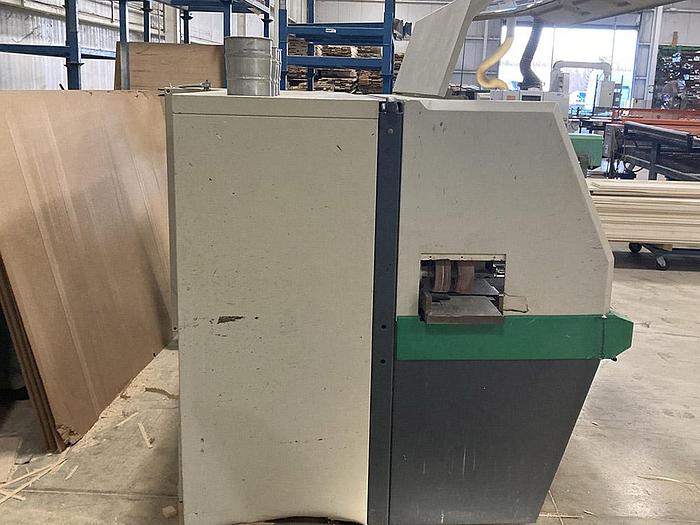

1999 Weinig PROFIMAT 23E Moulder

WENIG PROFIMAT 23E Feed Through Moulder

5-Head (B-R-L-T-B), working cap. 9-1/16" x 4-11/16".

Specifications:

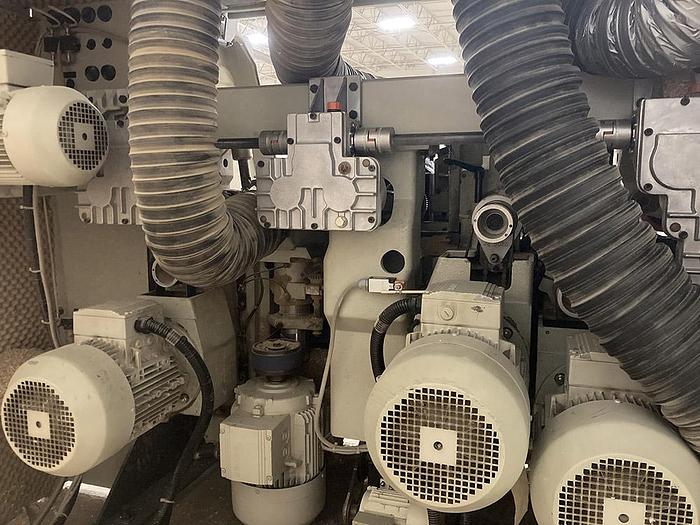

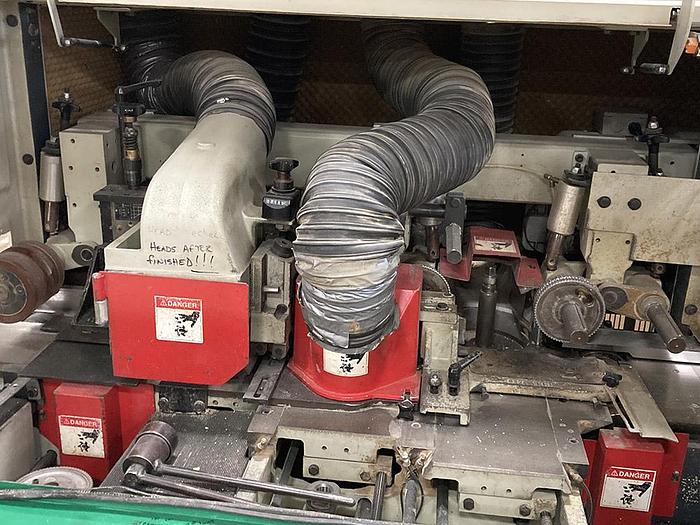

-- Spindle Sequence: Bottom 10 HP, Right & Left by 15 HP, Top 15 HP and Bottom 10 HP motor.

-- Spindles: 1-1/2" diameter. with cutterhead speed of 6000 RPM.

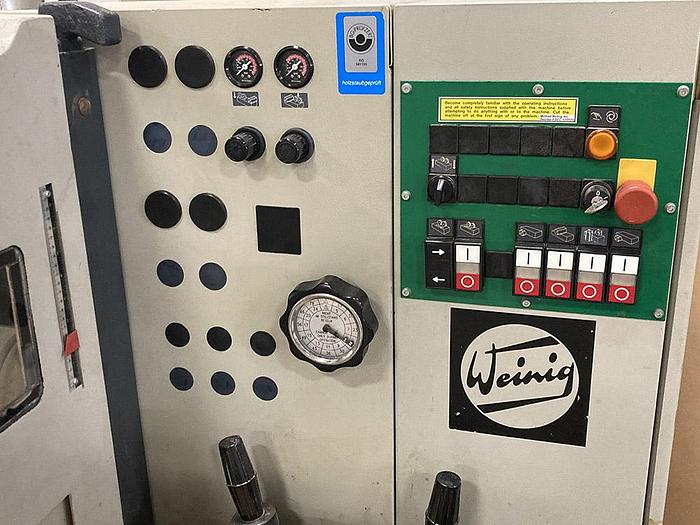

-- Digital Readouts: "DigiSet" digital readouts for chipbreaker and pressure element at top spindle

-- FPM: Variable feed speed from 17 - 78 FPM, powered by a 4 HP motor

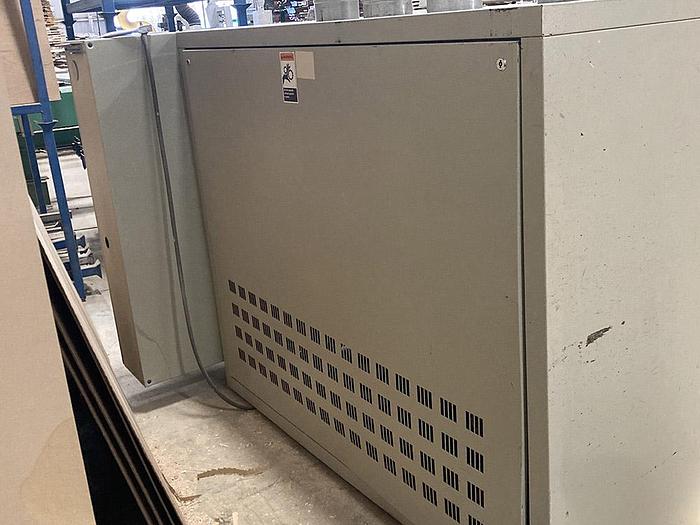

-- Safety: Full enclosure sound proof booth

-- Receding chipbreaker & pressure element at top spindle

-- Rollers: Side pressure opposite right spindle, spring loaded with 2 rollers and driven outfeed roller in bed.

-- Infeed straightening table 2 meter (6'6")

-- Features central lubrication system via manual table lubrication pump.

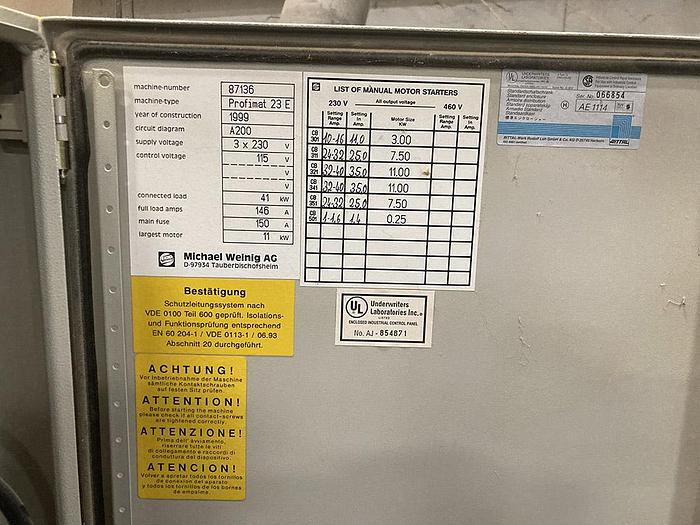

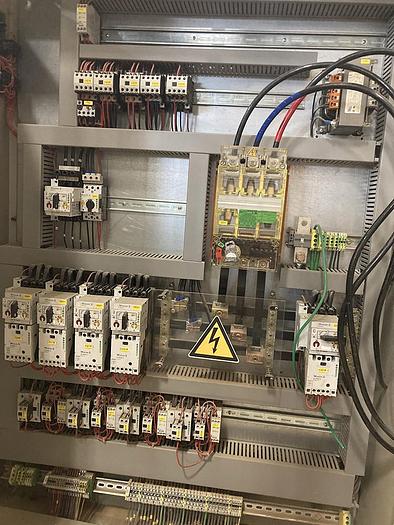

-- Machine is wired for 460 Voltage / 3 Phase Power using 79 Full Load Amps.
