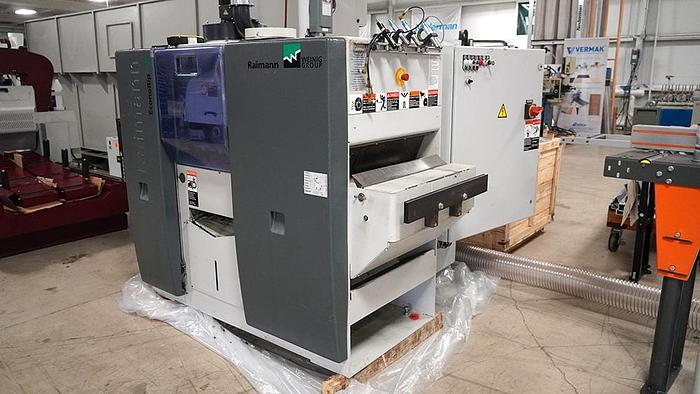

2009 Weinig KM310 EconoRip

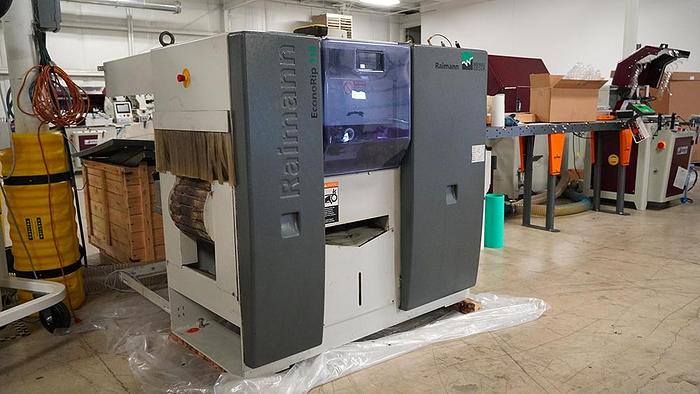

2009 WEINIG RAIMANN ECONORIP 310 GANG RIP SAW

Max. cutting width 310mm/12 7/32”

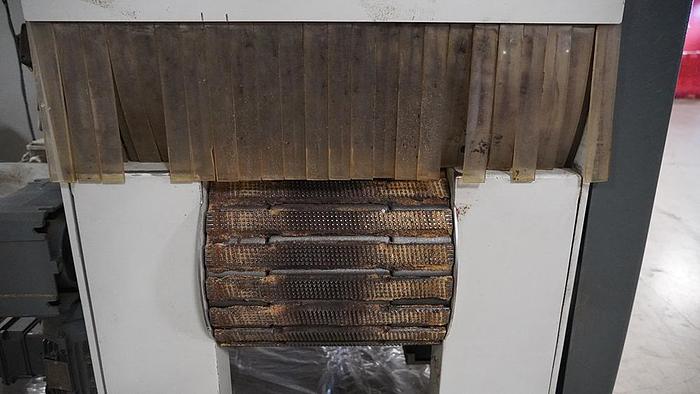

Chain width 340mm/13 25/64”

Max. throat width 650mm/25 19/32″

Max. cutting height with Quickfix clamping device 110mm/4 11/32”

Min. material length 500mm/19 11/16”

Max. feed speed 35m/min 115ft per min

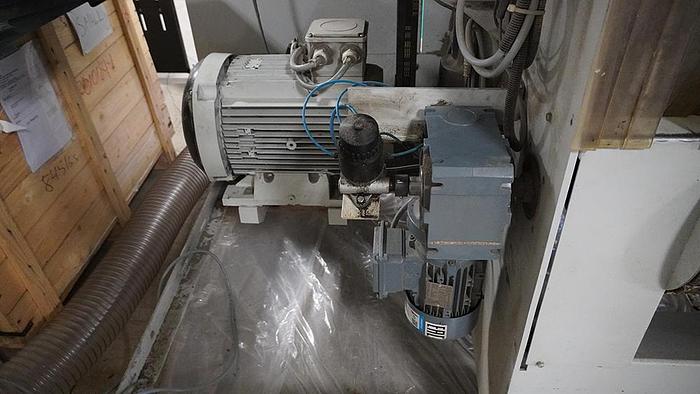

Motor capacity, standard (option) 22kw/30hp

Saw blade diameter, min./max. 300/11 13/16” 350mm/13 25/32”

Machine weight 1850kg/4079lbs

Machine dimensions – length x width x height 1.75 X 1.75 X 1.5m

Working height 850mm/ 33 15/32”

Diameter of dust port 250mm 9 27/32”

Required suction volume 5300 m³/h

Quickfix Spindle

Motorized adjustment – saw arbor height

Motorized adjustment – pressure unit height

Infeed fence

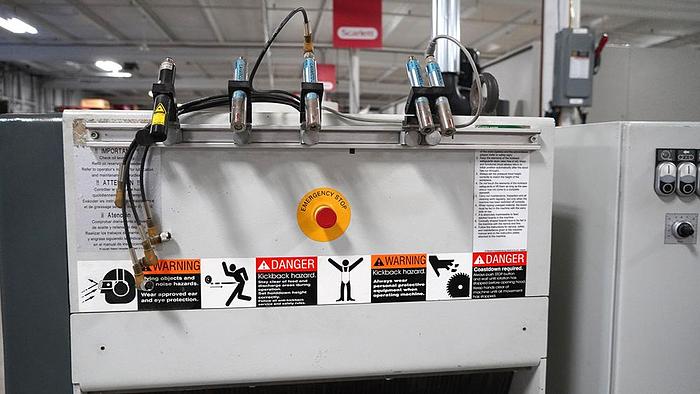

5 Lasers for indicating saw blade position
