2006 C.R. ONSRUD 146C18D

2006 C.R. ONSRUD 146C18D

Contact us for price

Location:Grand Rapids, MI

orCall 616-822-1379

Description

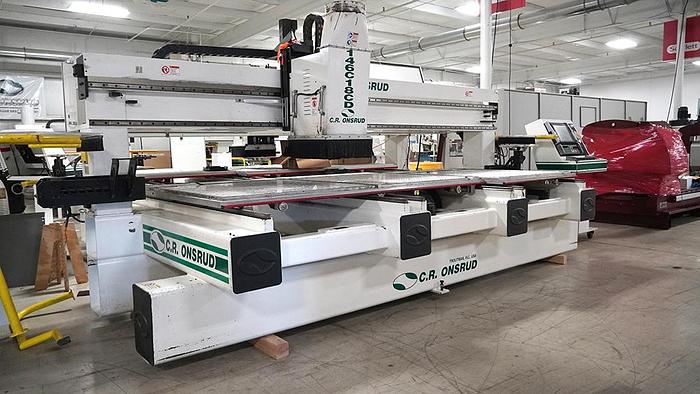

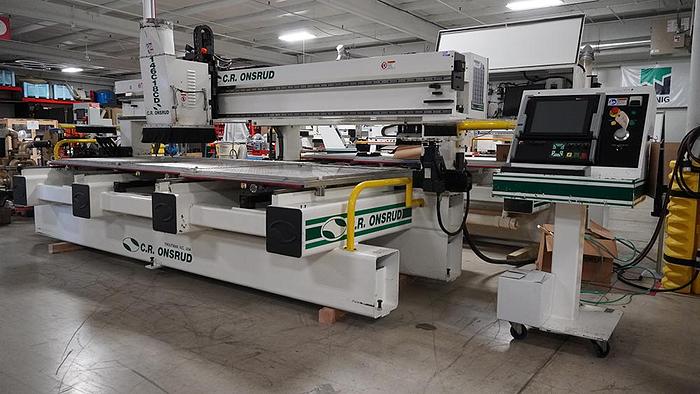

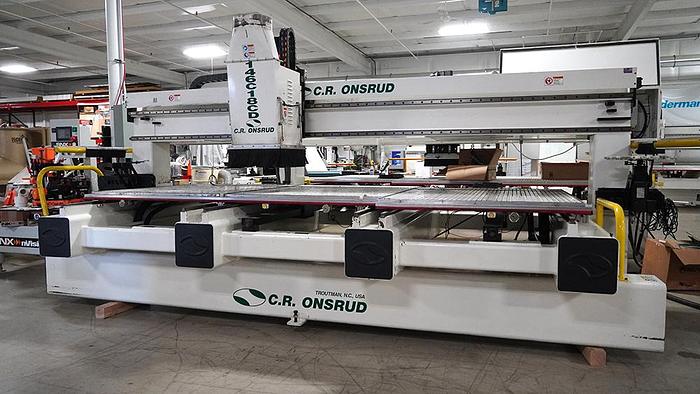

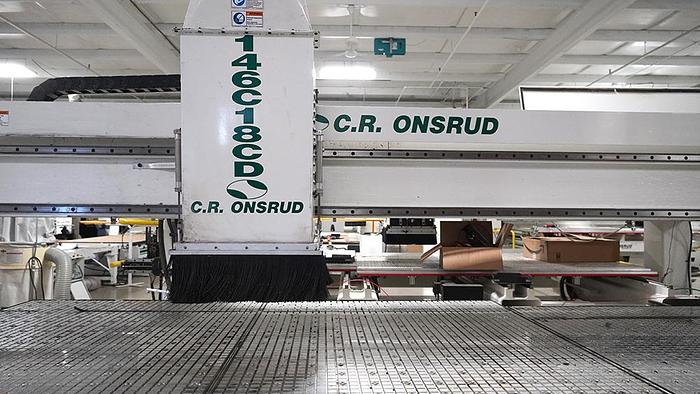

2006 C.R. ONSRUD MODEL 146C18D “Super Duty” CNC ROUTER – 5’ x 8’ 5' x 4' plus combined 5' x 12' Table


(61″X146” axis travel) – with: Thick Cast-Iron Fixed Bridge & Cast Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 3600″ per minute machining speed, full 3-D capability, 14 inches under bridge clearance , 10′ x 17′ footprint, precision ball-screw drives for ALL axes, precision linear guideways, centralized lubrication system, 4-Pole 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability,

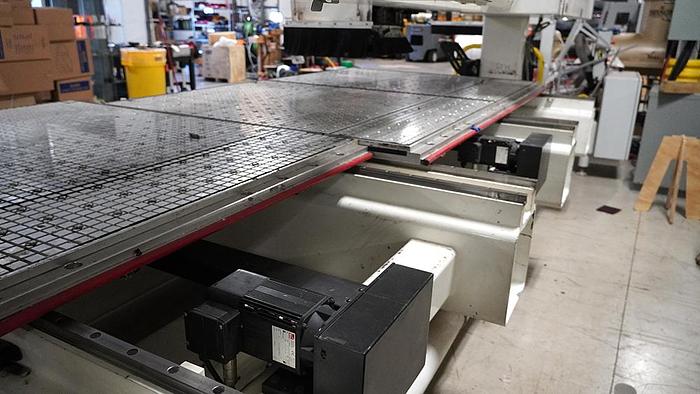

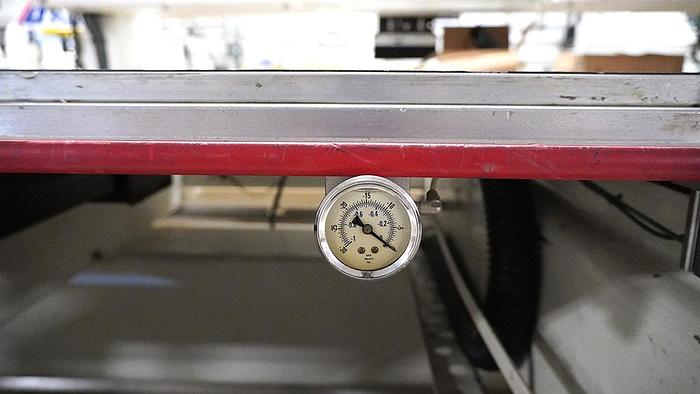

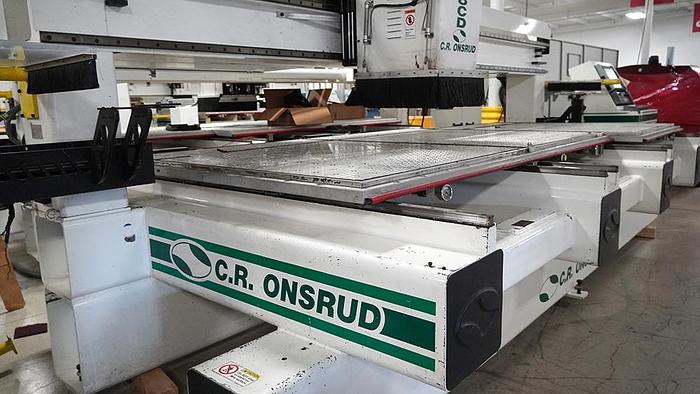

12 TOOL – AUTOMATIC TOOL CHANGER.  TWIN ALUMINUM TABLES function as an independent 61″ x 97” & an independent 61” x 49″ table. Each table has a low vacuum sensing safety shut-off with override capability. Twin Tables can also operate in tandem as a single 61″ x 146″ table, with full table coverage. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems.

All tables include pressure-sensitive safety-stop / emergency-stop bars along the front & rear, & the machine is surrounded by a 360-degree emergency-stop cable.

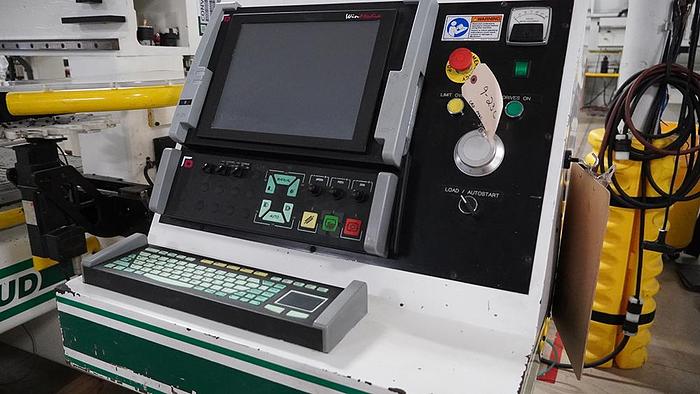

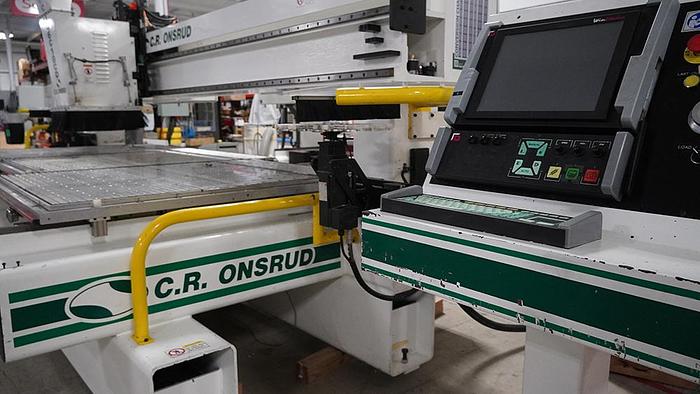

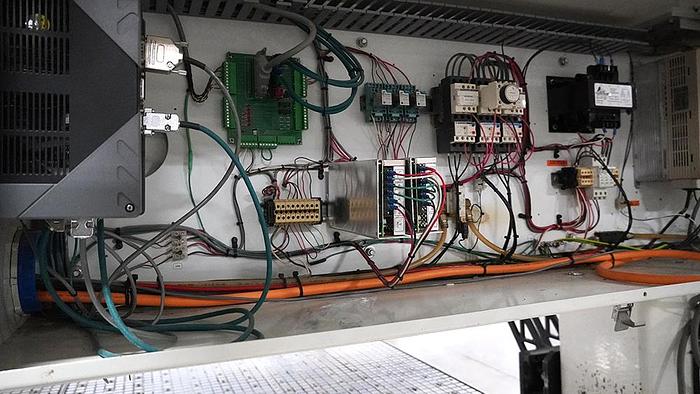

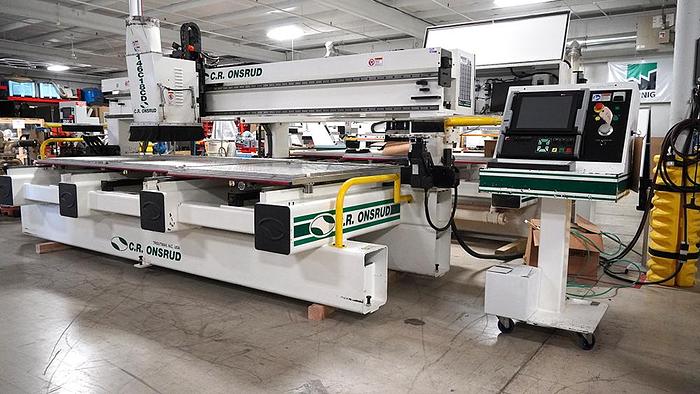

OSAI 10/510i Machine Controller System Upgrade With Integrated PC Interface – OSAI Numerical Control with OSAI “Win-NBI” PC Interface, High-Res touch screen, network capability, plus adds OSAI Digital Drives & Servos. Provided with 4-port network hub (requires 460V out isolation transformer)

HSK-63 Spindle Taper & Tool Changer Adapter

High Speed – High Production – Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy

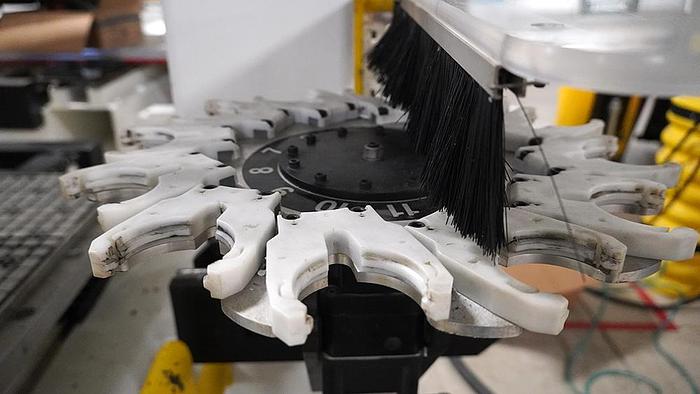

12 Tool – Dynamic Automatic Rotary Tool Changer – Plus stand alone aggregate station for the 13th position tool park position.

Automatic Aggregate Tool Changer & Aggregate Capability – stand-alone, single pocket, 13th position tool changer with an aggregate anti-rotation spindle adapter ring to make the machine fully aggregate capable – (for use with or without C-axis Ability below) N/A on machines w/2-12 pos ATC’s

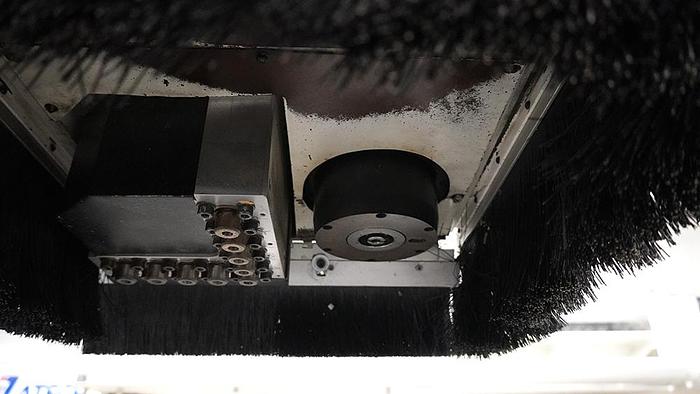

9 Spindle Drilling Block Package – (Multi-Spindle Line Drills) Includes 9 independent or simultaneous firing vertical spindles arranged to drill up to 5 holes at a time in the X-axis or 5 holes at a time in Y-axis

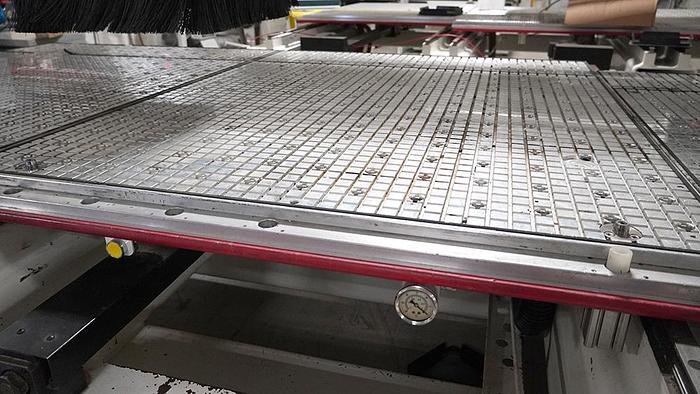

Onsrud / NEMI High-Precision Vacuum Grid Table – Aluminum NEMI Grid table

Pneumatic Controlled Vacuum Switches – (One for each table or zone).  Controlled via either a touch screen or M-code on OSAI machines. Dust Transition Kit – (appropriately sized dust transition provided for connecting to your dropped-in flex hose)

Specifications

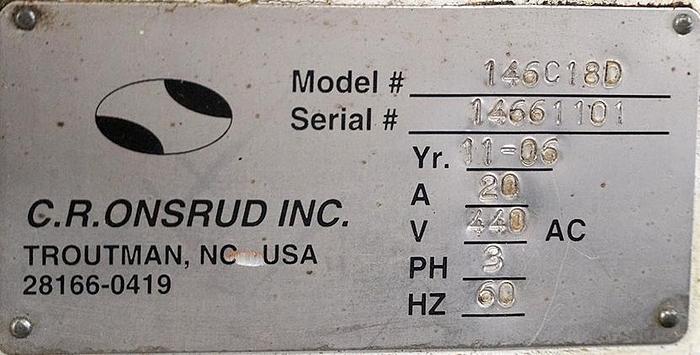

ManufacturerC.R. ONSRUD
Model146C18D
Year2006
ConditionUsed
