2007 C.R. ONSRUD 98HD18

2007 C.R. ONSRUD 98HD18

$59,900 (USD)

Grand Rapids, MI

orCall 616-822-1379

Description

Description

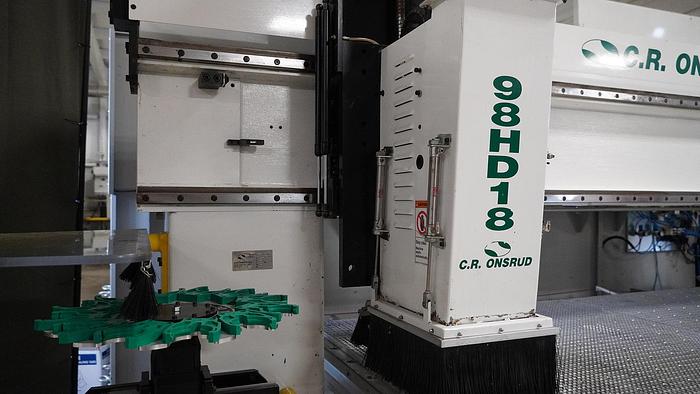

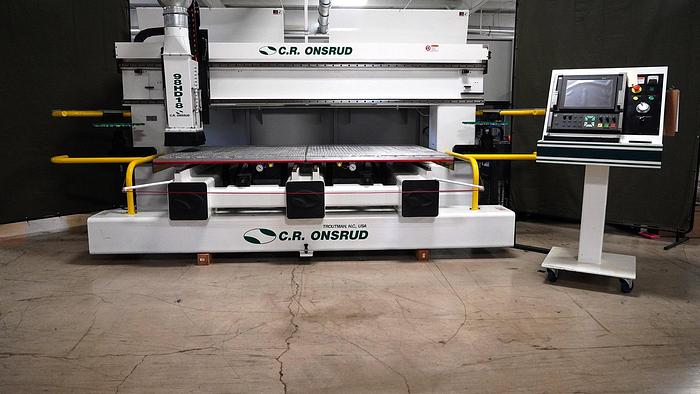

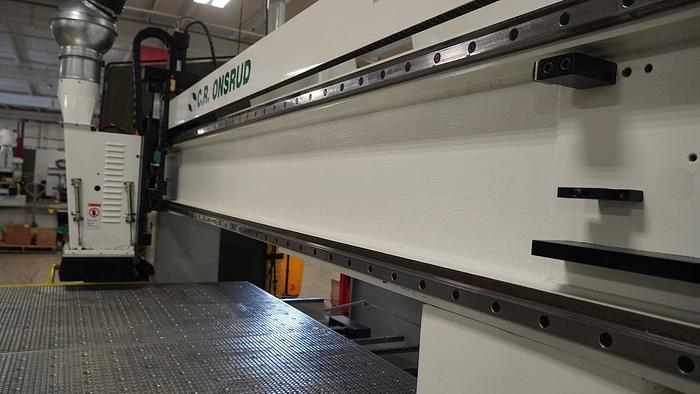

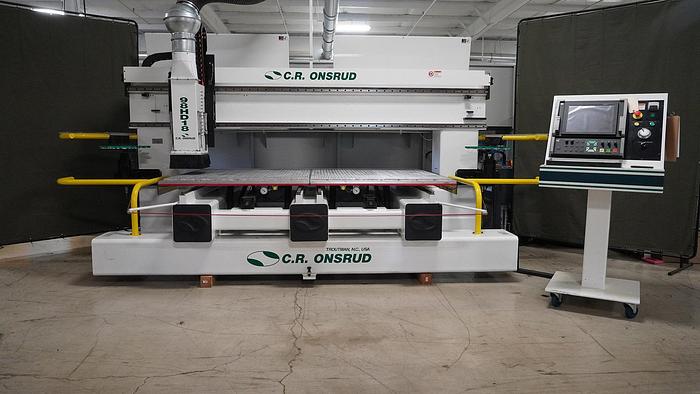

2007 C.R. ONSRUD MODEL 98HD18 “Extreme Duty Series” CNC ROUTER (61″X98” axis travel) – with: Oversized Extra Thick Cast-Iron Fixed Bridge & Oversized Extra Thick Cast

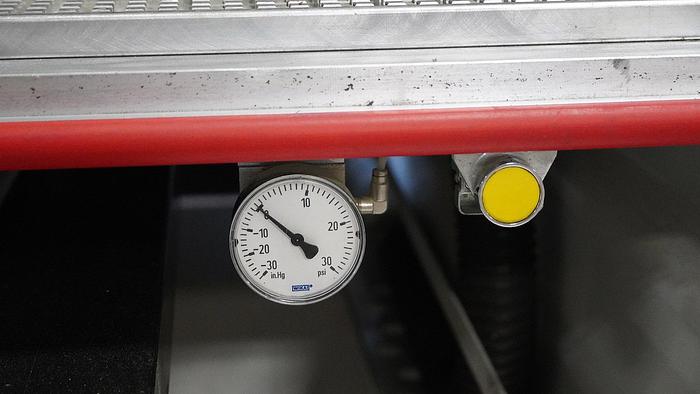

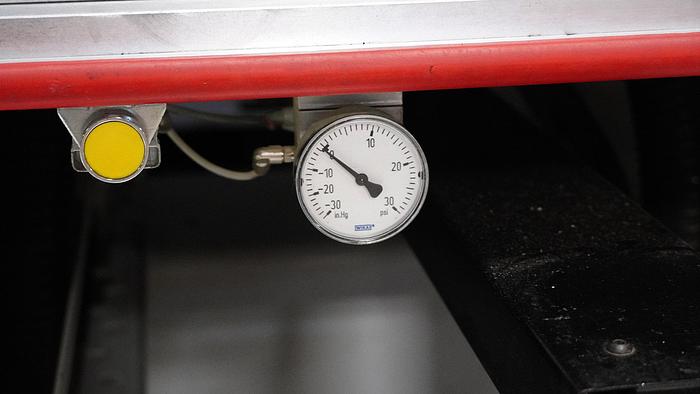

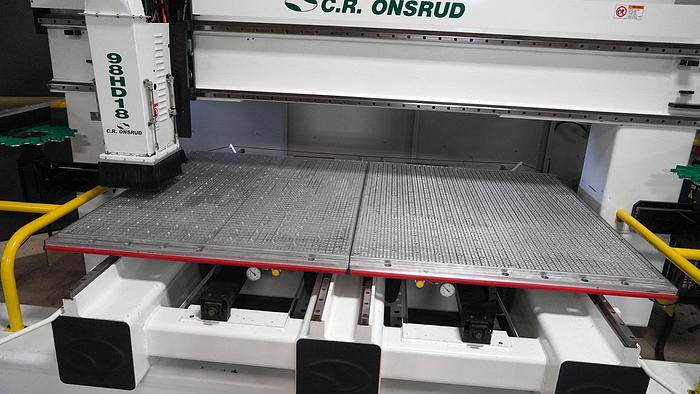

Iron Vertical Supports, Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base; Fixed Bridge, Twin Moving Table Design with 4000″ per minute machining speed, full 3-D capability, 14 inches under bridge clearance & 11 inches of Z axis stroke, 10′ x 15′ footprint, precision ball-screw drives for ALL axes, precision linear guide ways, centralized lubrication system, OSAI Series 10/510i controller, 4-Pole 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability. Twin aluminum tables – function as independent 61” x 49” tables. Each table has low vacuum sensing safety shut-off with override capability. Twin Tables can also operate in tandem as a single 61″ x 98″ table, with full table coverage. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck-through or dedicated spoil boards, and is easily modified for the use of pod systems. All tables include pressure sensitive safety-stop / emergency-stop bars along the front & rear, & machine is surrounded by a 360 degree emergency-stop cable.

Includes:

– HSK-63 Spindle Taper & Tool Changer Adapter

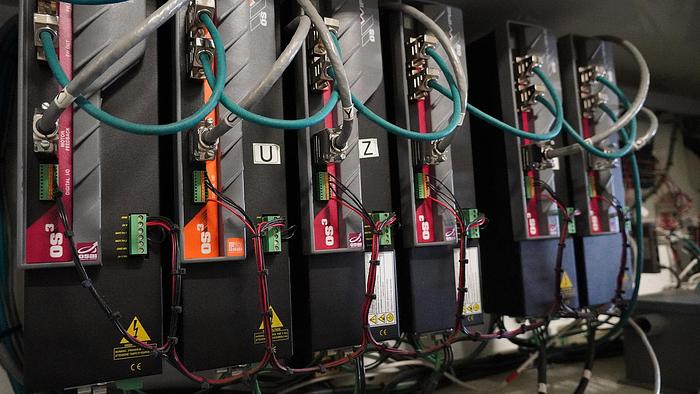

– High Speed – High Production – Digital Brushless AC Servos Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy

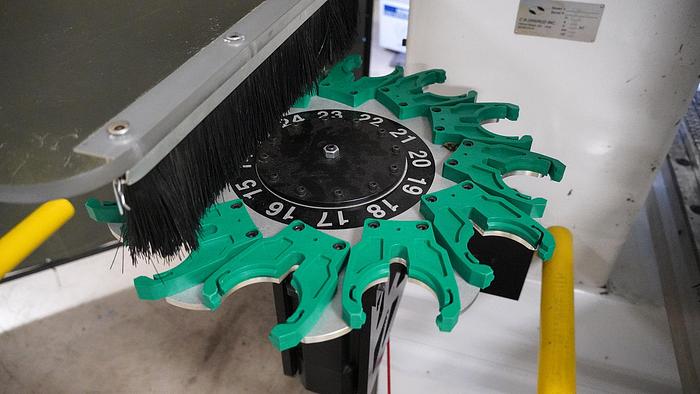

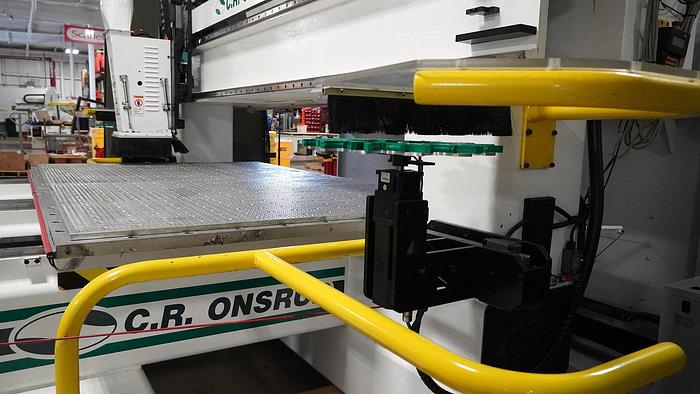

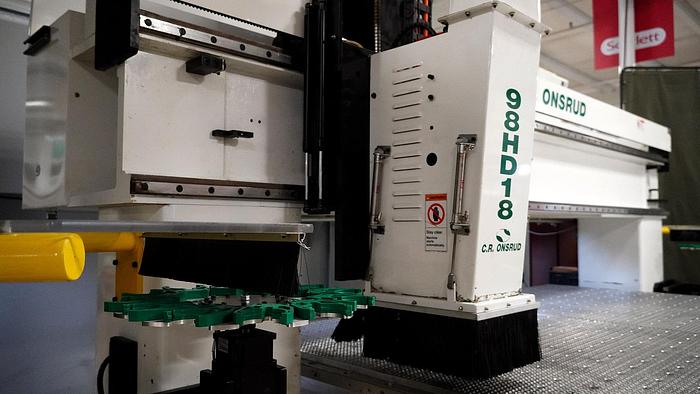

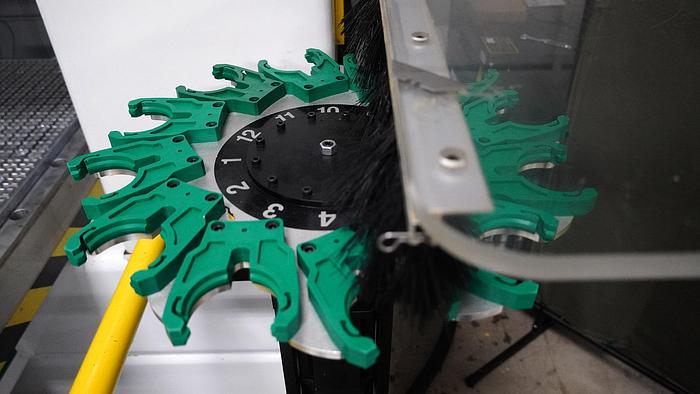

– 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. –

Additional 12 Tool – Dynamic Automatic Rotary Tool Changer

– Aggregate Tool Changer

– Pneumatic Controlled Vacuum Switches – (One for each table or zone). Controlled via either touch screen or M-code on OSAI machines.

– Two (2) Additional vacuum zones – Total of 4 zones, 2 per table

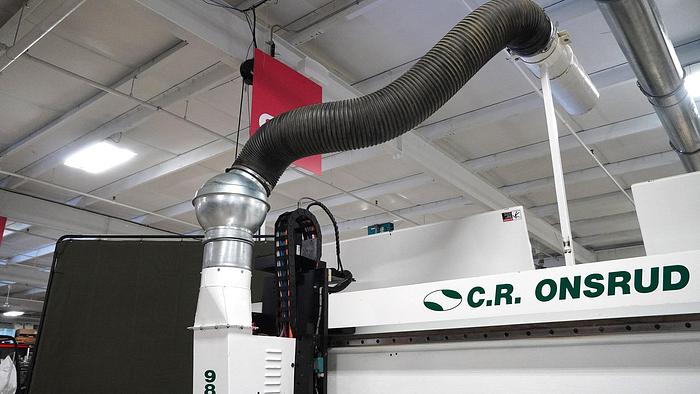

– Dust Transition Kit – (appropriately sized dust transition provided for connecting to your dropped-in flex hose) 8” transition for router head only.

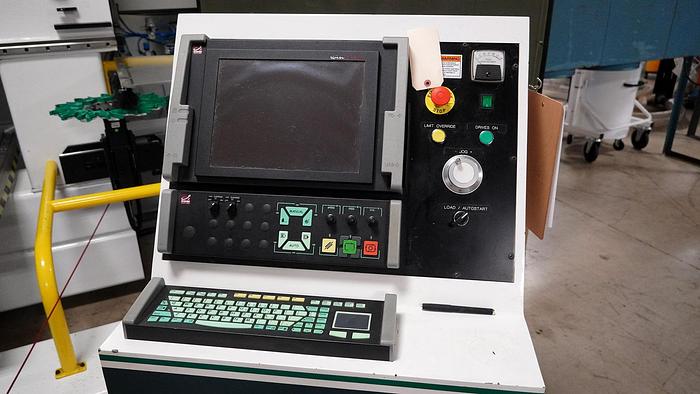

– OSAI 10/510i Machine Controller System Integrated PC Interface – OSAI Numerical Control with OSAI “Win-NBI” PC Interface, High-Res touch screen, network capability, plus adds OSAI Digital Drives & Servos. Provided with 4-port network hub (requires 460V out isolation transformer INCLUDED). Includes HSM (High Speed Machining) Functionality


Specifications

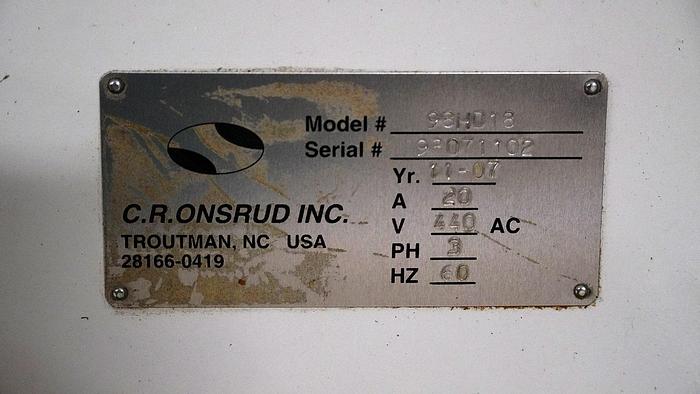

ManufacturerC.R. ONSRUD
Model98HD18
Year2007
ConditionUsed
