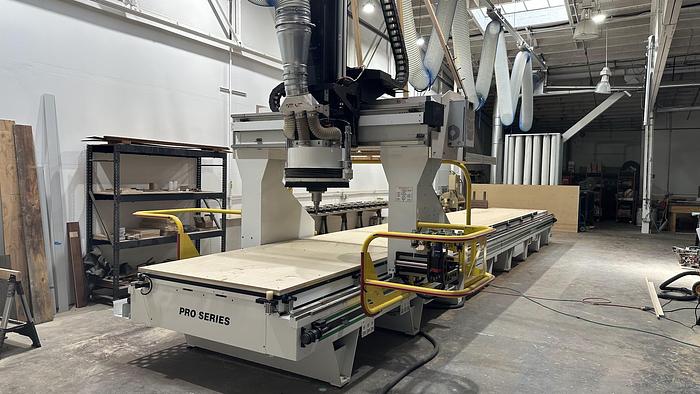

2022 C.R. ONSRUD F396G24 Five Axis CNC Router

2022 C.R. ONSRUD F396G24 Five Axis CNC Router

Contact us for price

Grand Rapids, MI

orCall 616-822-1379

Description

C.R.Onsrud Five Axis CNC Router - Model F396G24


396 – 5’ x 33′ – Work Envelope


28-inches of Z stroke – Z-stroke of the ram is 28in.

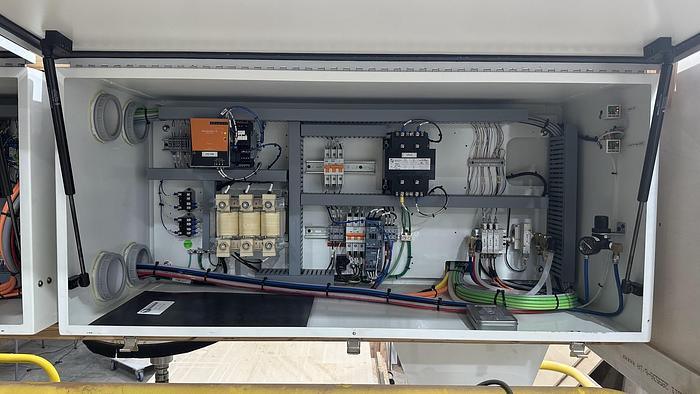

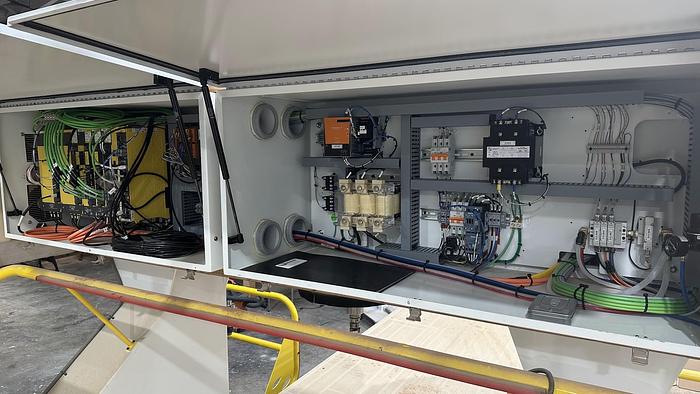

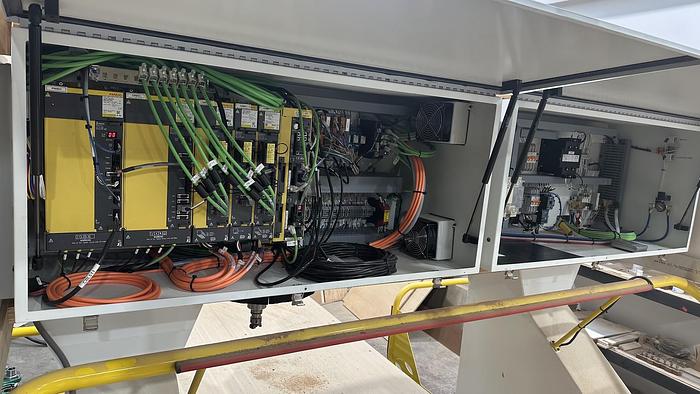

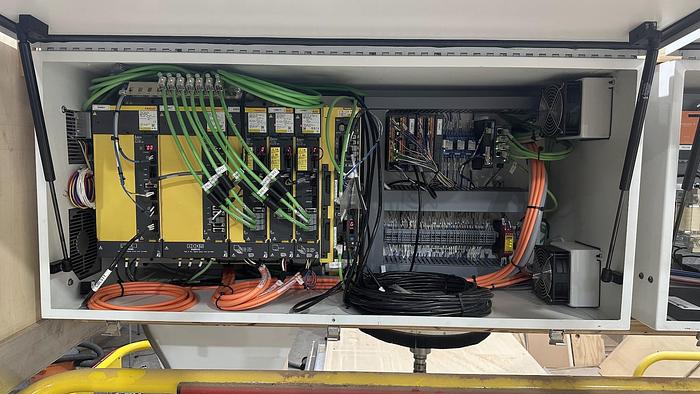

FANUC 31i-B5 Machine Controller System Option With Integrated PC Interface – Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High Res touch screen. Fanuc 31i-B5 is not a PC with a control card but is a dedicated Industrial PLC designed to control CNC motion, for maximum reliability and performance.

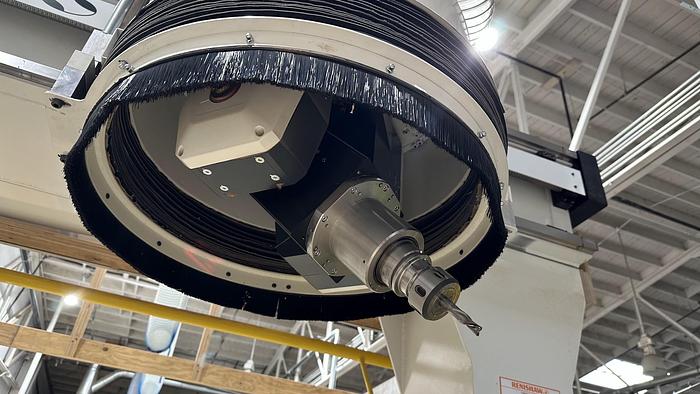

5-Axis – 24 HP Spindle – 4-Pole, 18Kw, 24HP – 24,000 RPM Double-Armature, 5-Axis Long Nose Spindle w/HSK-63F Spindle Taper, fully programmable & reversible, variable speed, liquid-cooled, quick-change spindle, capable of routing & drilling, programmable feed rates w/override capability.


A-Axis Rotation +/- 120 degrees, C-Axis Rotation + 300 / – 115 degrees.


Chiller for Liquid Cooled Spindle Option – Adds a liquid cooling system & chiller in place of the standard fan & compressed air spindle cooling system.

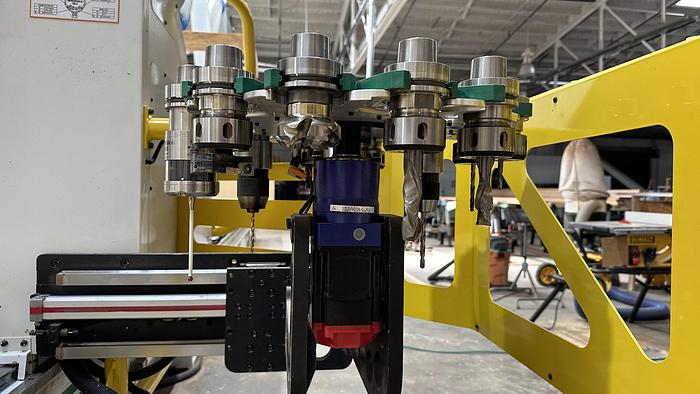

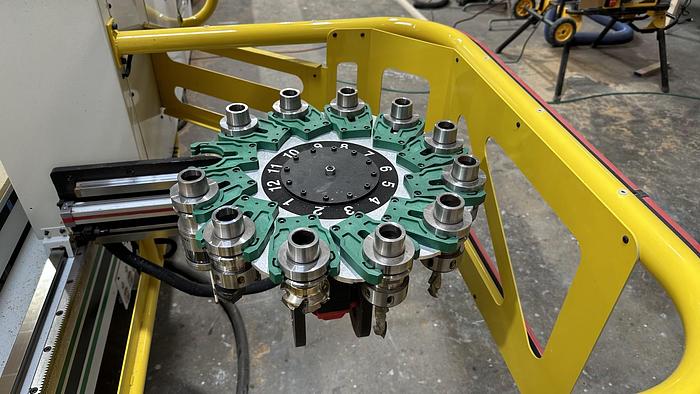

12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled tool changers. Design eliminates misfires & quickly changes between 12 different tools.

CR ONSRUD Phenolic High-Flow Universal Vacuum Table System – Includes: oversized 4” intake with (8) - High Flow Vacuum Zones – Pneumatic Ball Valve, Actuated via Push Button or PLC Controlled

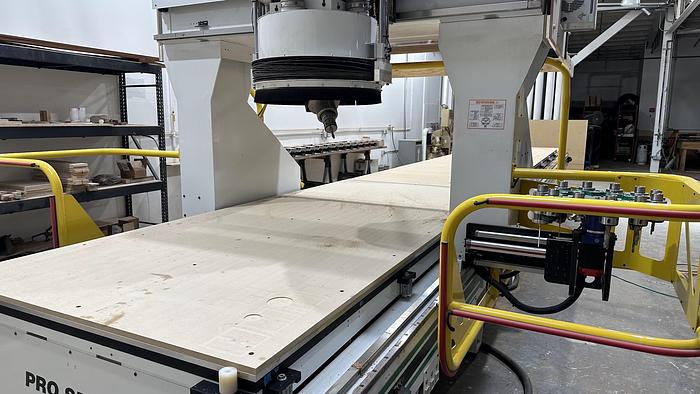

5’x33′ – Phenolic Vacuum Grid Table – Enables the conversion from total flow-through vacuum hold-down to pods, pins, fixtures, etc. to an industry standard 30mm center distance grid system. Includes removable spoilboard that fastens to grid table for use during nested-based machining.

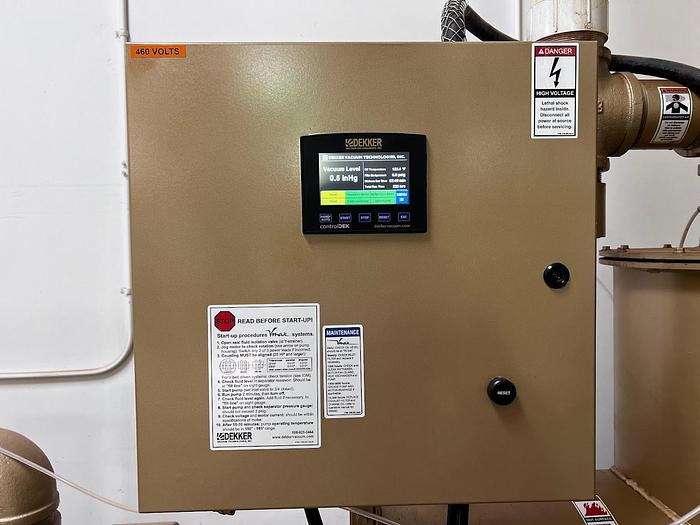

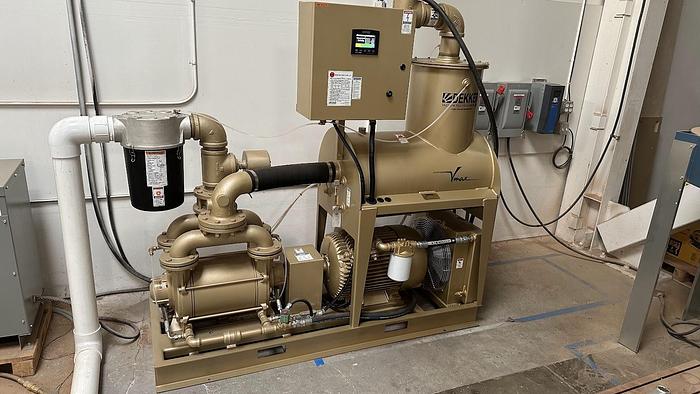

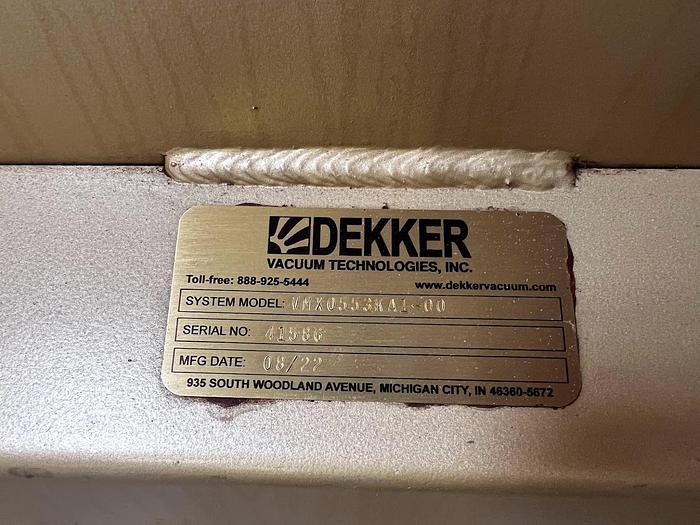

40HP Dekker V-Max Liquid Ring Vacuum Pump – 550 CFM System @ 29”/hg; 781 m3/hr @982Mb.


Specifications

ManufacturerC.R. ONSRUD
ModelF396G24 Five Axis CNC Router
Year2022
ConditionUsed
