2022 C.R. ONSRUD 289G18R w/ Roller Hold Down

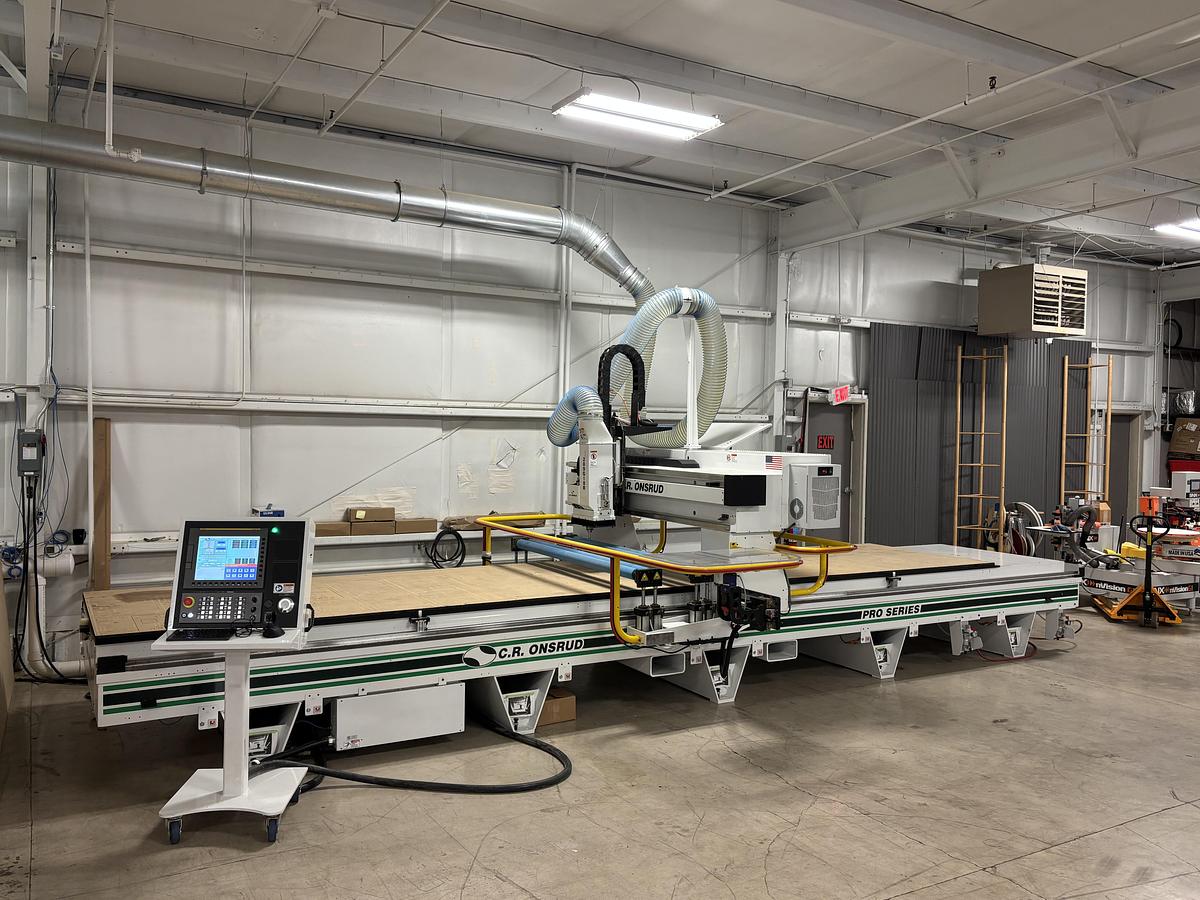

C.R ONSRUD MODEL 289G18R “Pro Series” CNC ROUTER w/ Roller Hold-Down

5’ x 24’ Table – CR ONSRUD Phenolic High-Flow Universal Vacuum Table System Flow-Through Spoil Board – LDF table top to be used as replaceable sacrificial spoil board.

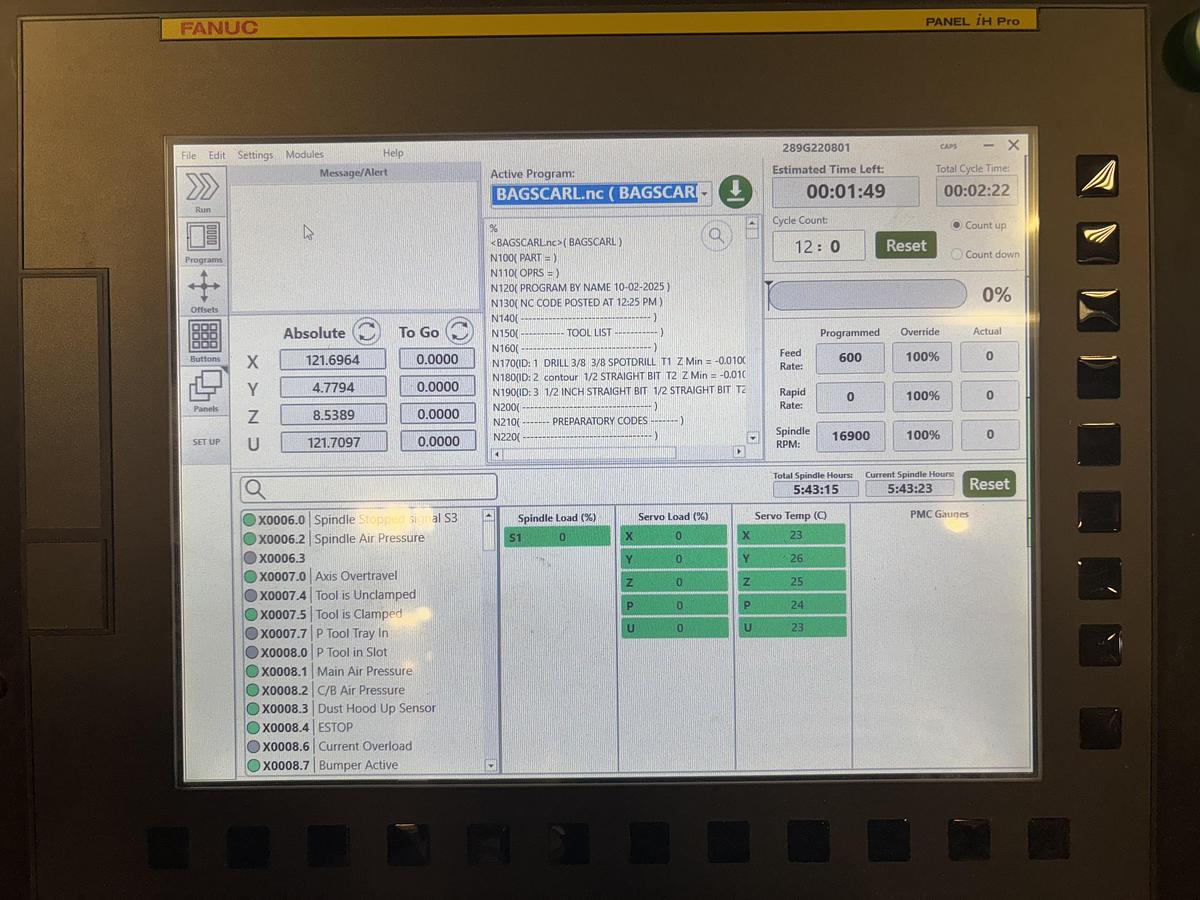

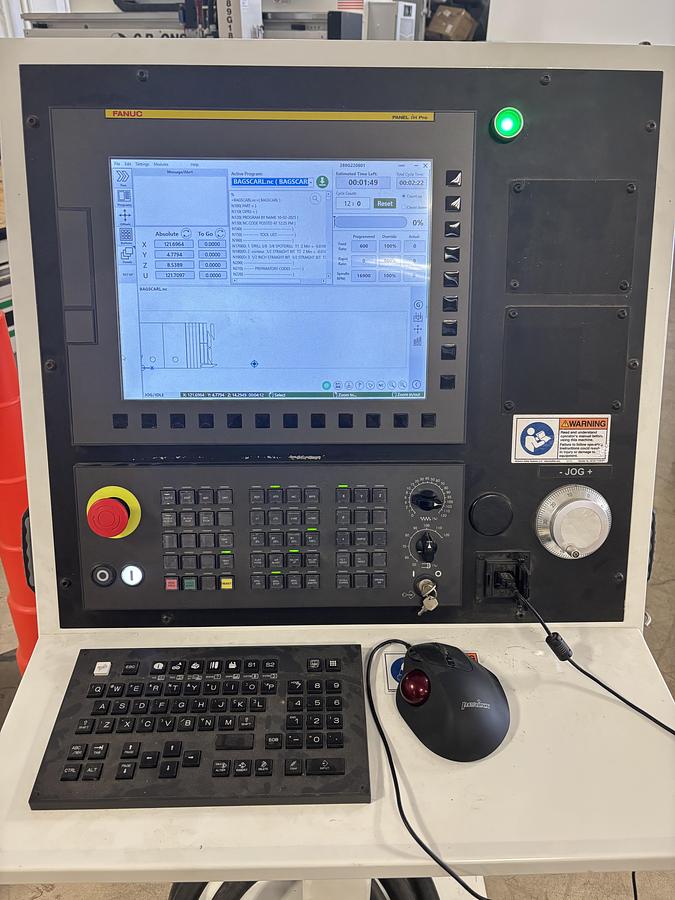

FANUC 0i Machine Controller System with Panel-i HMI - CR Onsrud HMI Software has been upgraded to the most current version!

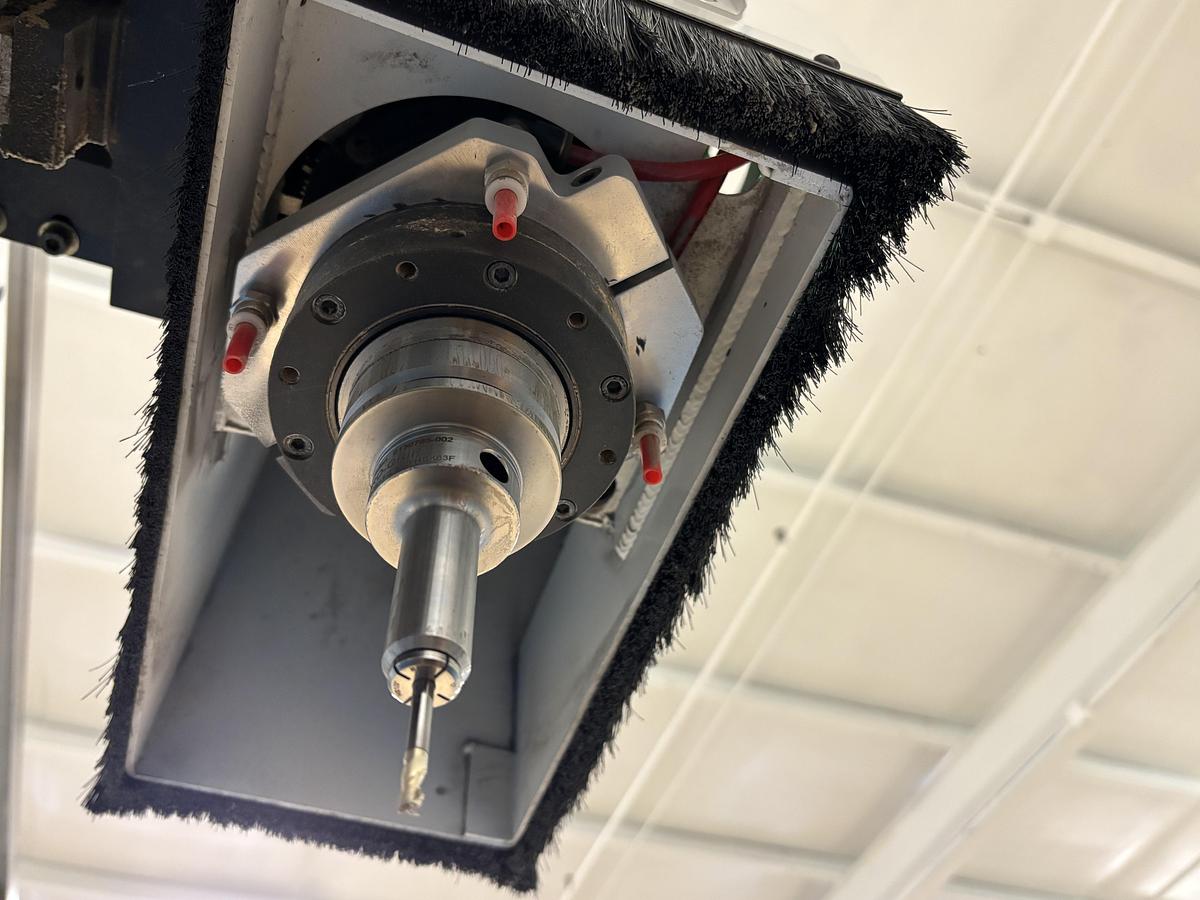

18 HP Spindle – 4-Pole, 13.5Kw, 18HP – 24,000 RPM fully programmable & reversible, variable speed, HSK 63F tool interface, quick-change spindle, capable of routing & drilling, programmable feed rates w/override capability.

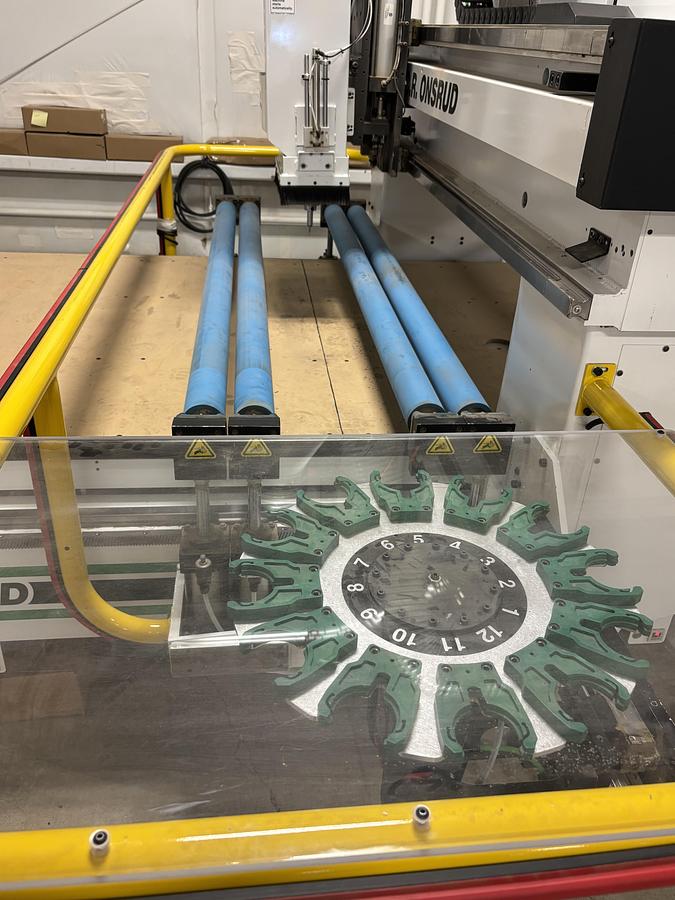

Roller Hold Down Option – 2 Rollers on each side of the cutting spindles, automatically extend & retract as rollers roll off cutting table, for holding down warped sheet stock such as low grade plywood. Each roller’s pressure can be regulated to prevent unnecessarily slamming the rollers into the table & the material.

2-Position Integrated Dust Transition System – Integrated Dust Extraction hood pulls chips away from the spindle’s nose & up a separate chamber & hood to effectively remove chips from the machining process. (8in dust transition also provided for connecting to your dropped-in flex hose)

Automatic Directional Air Blast – Blows air on tooltip to aid chip or dust evacuation. The direction air blows changes relative to the path of the machine. Can be turned on / off via M-Code.

Standard Centralized Manual Greased Lubrication Automatic Grease Lubrication System

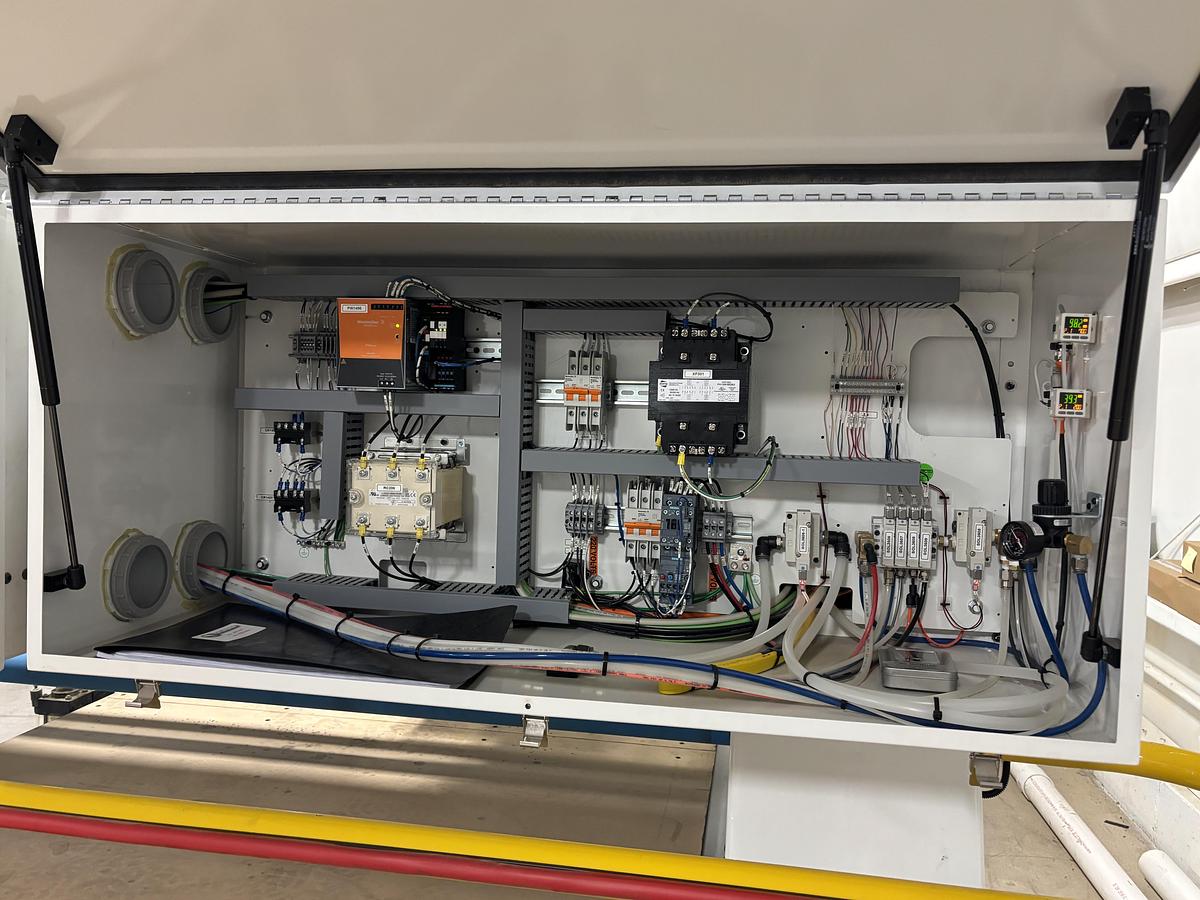

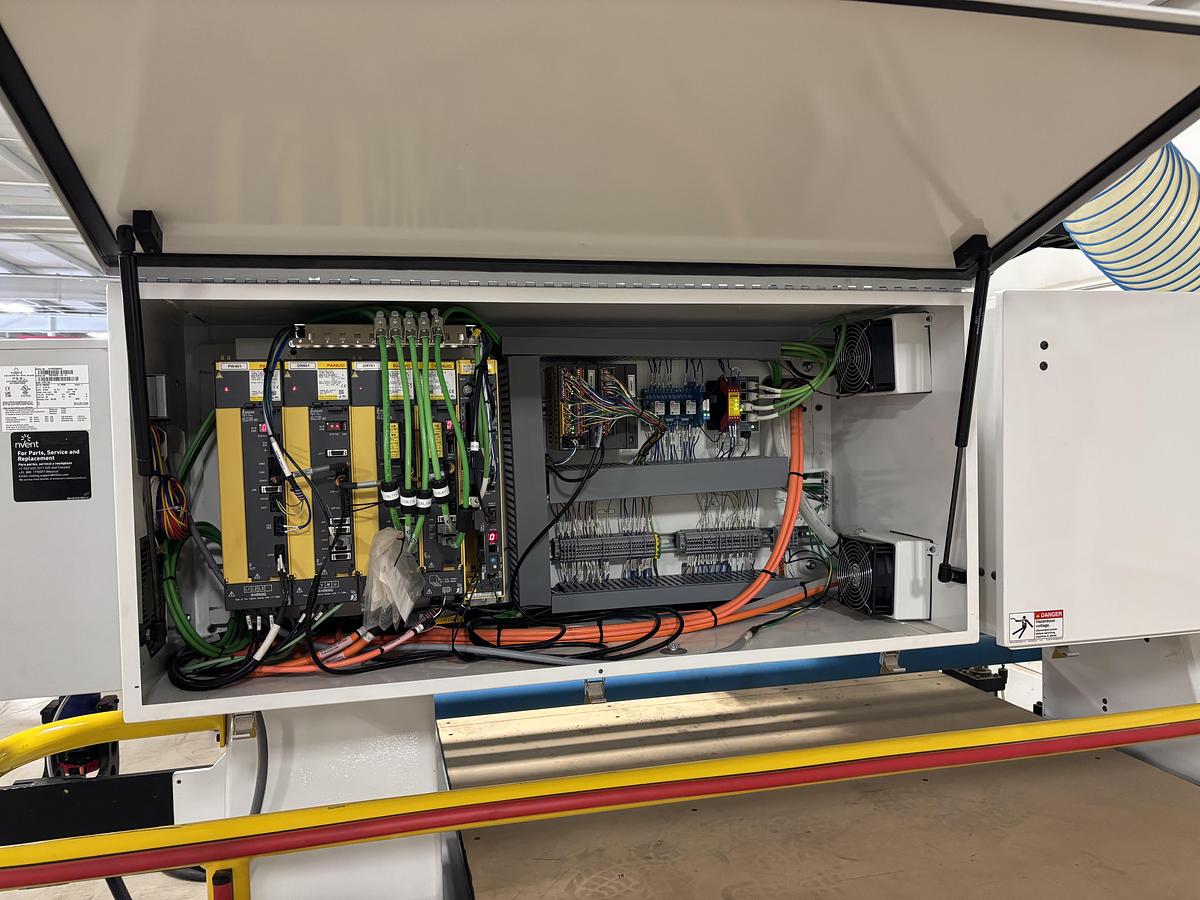

Air Conditioned Electronics Cabinets – Recommended for extreme environments & some non-temperature controlled workplaces.

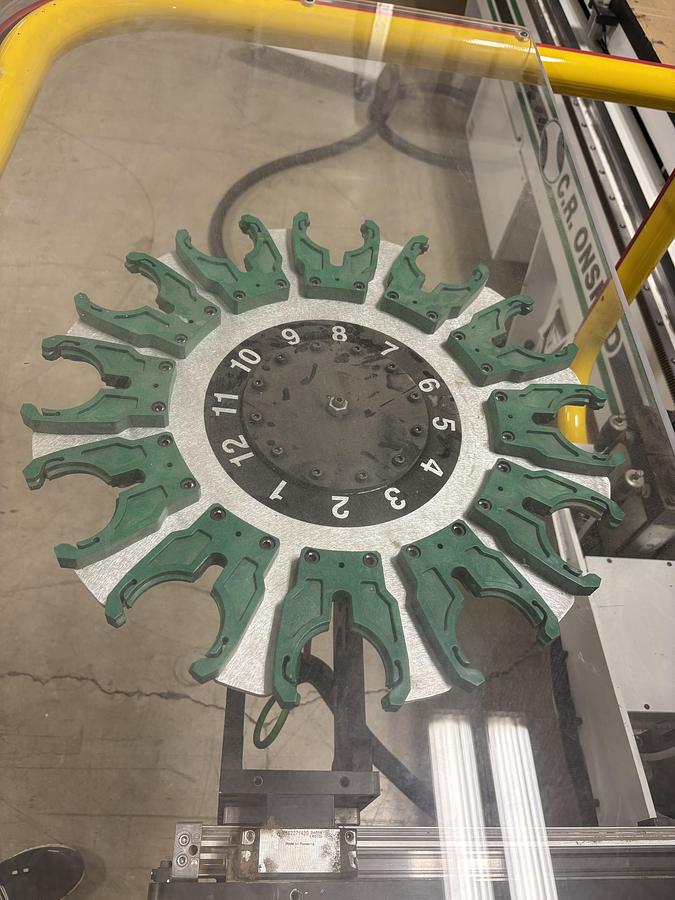

12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled. Design eliminates misfires & quickly changes between 12 different tools.

Pneumatic Controlled Pop-Up Perimeter Positioning Pins – for easier sheet placement Solenoids for Pop-Up Pin Control Tooling Measurement System Options

Auto Tool Length Touchpad Digitizer – Measures tool length and records in machine tool length tables, may not work with custom or non-standard tooling, or some custom profiles.

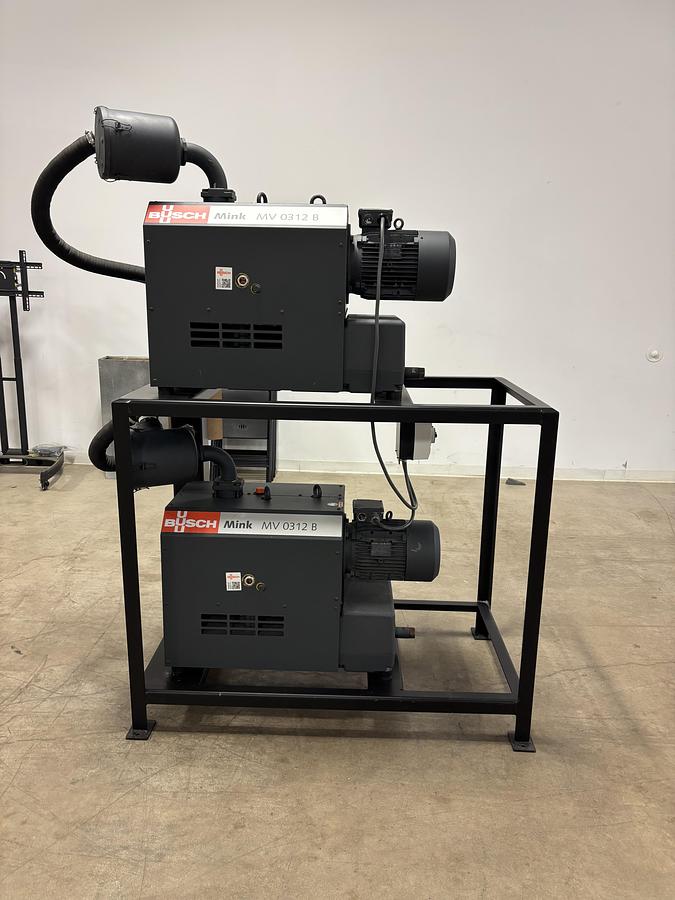

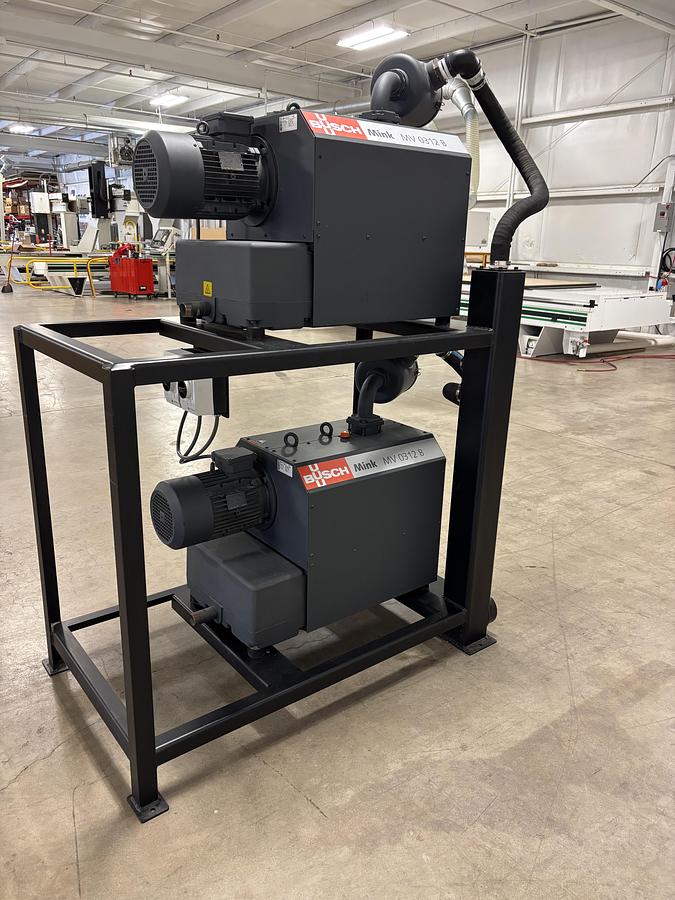

Vacuum Pumps – (2) 10 HP Busch Mink Vac Pumps – Mounted on a rack – 406 CFM total.

2022 Machine has never been run in production!
