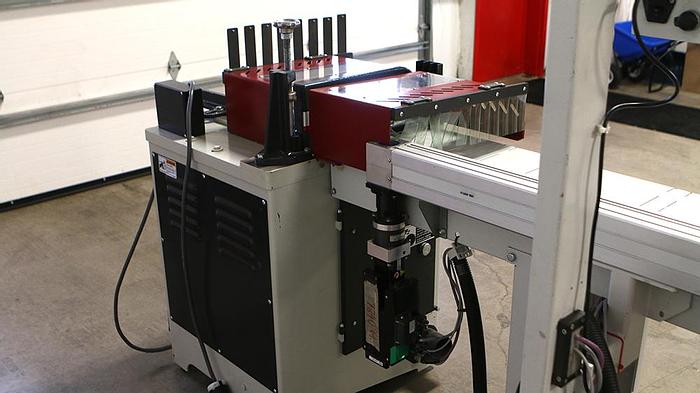

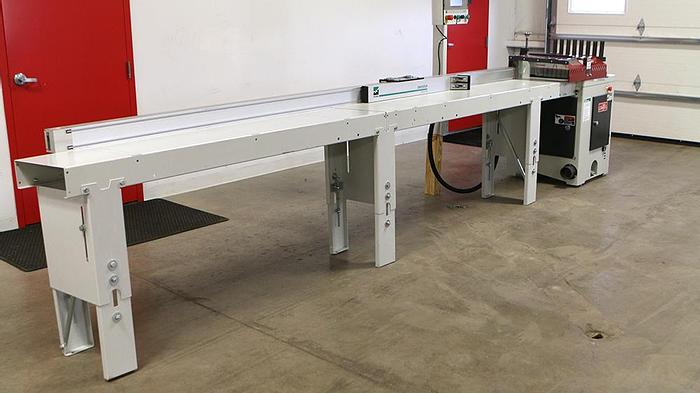

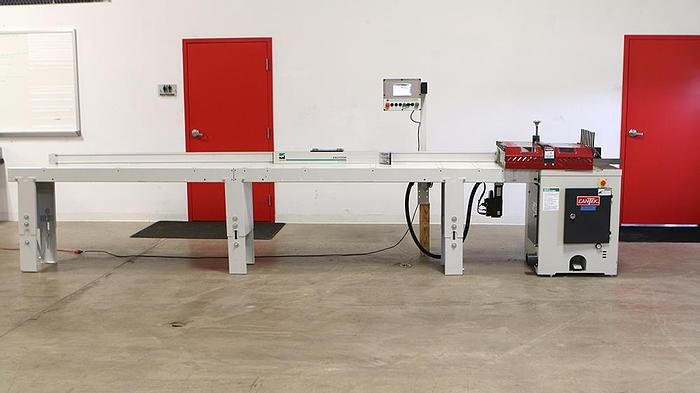

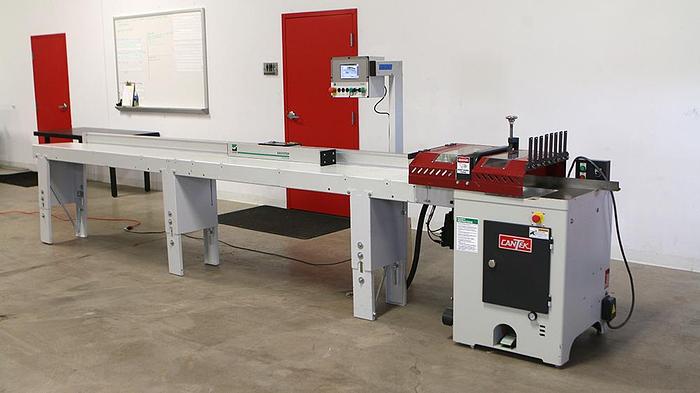

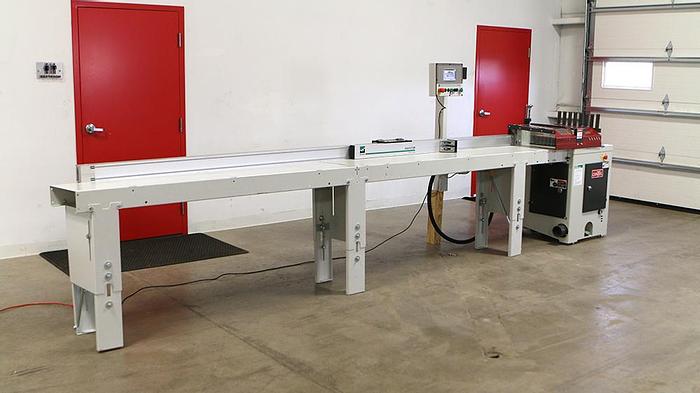

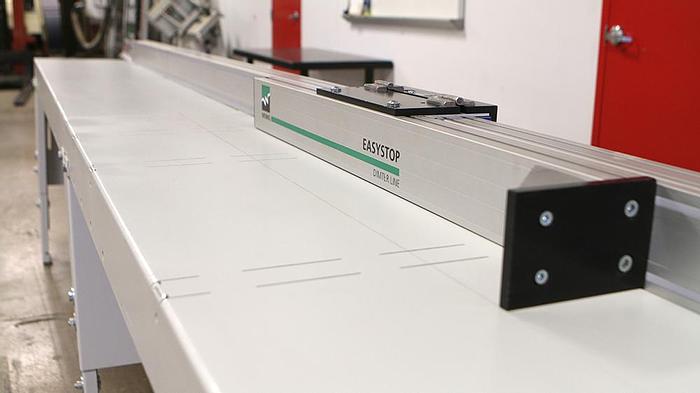

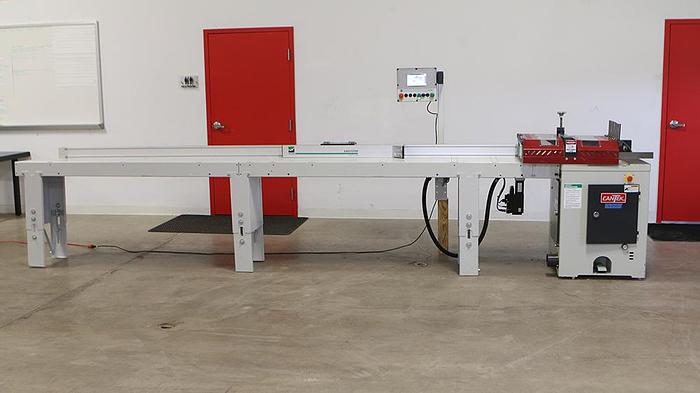

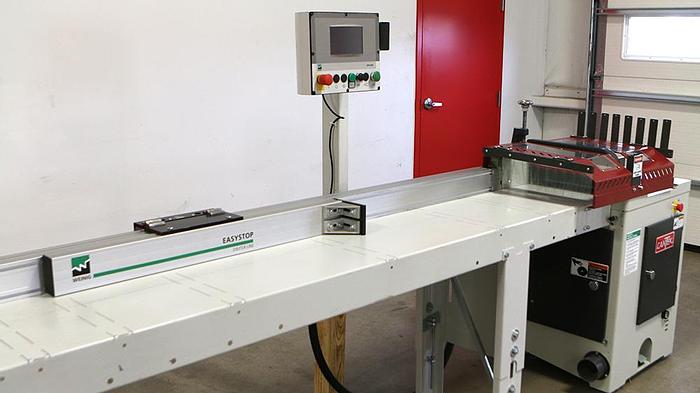

2019 Cantek PCS 18L with Weinig EasyStop

• Left Hand configuration
• Cutting off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
• Powerful 10HP main motor
• Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine
• Fast cutting rate up to 45 strokes per minute.

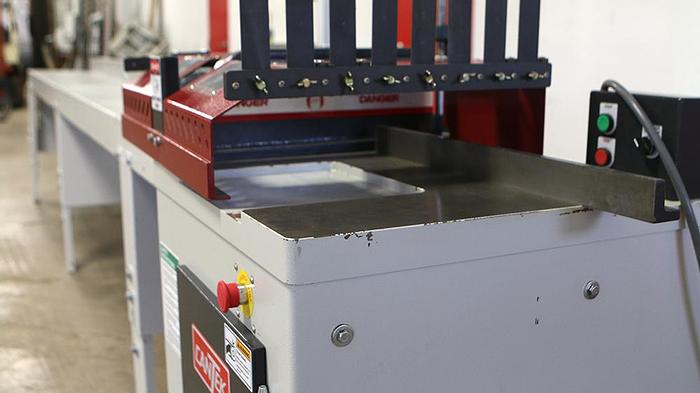

• Cast iron table surface is precision ground assuring high cutting accuracy.

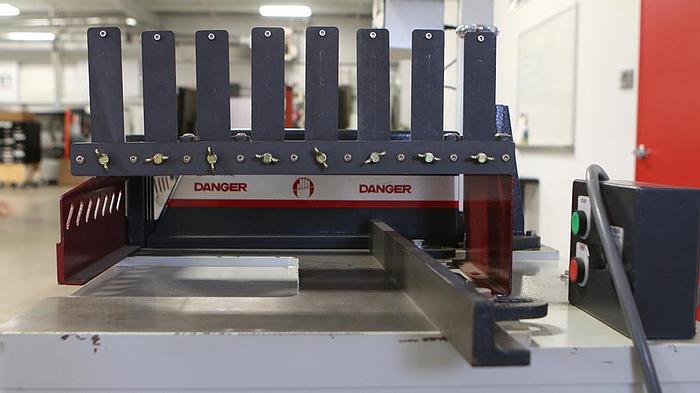

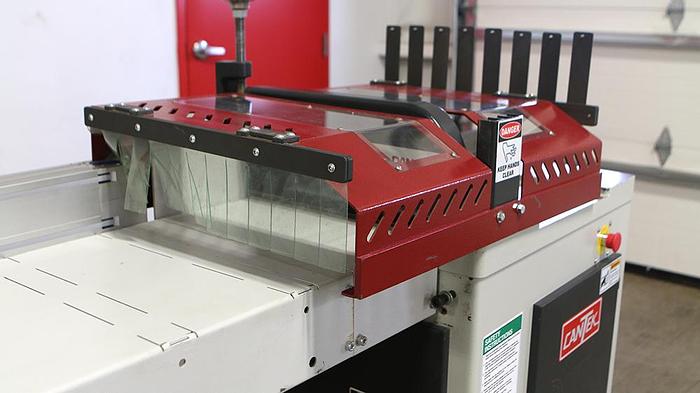

• Safety blade guard with adjustable fingers for added safety.
• Material clamp is easily adjusted for workpiece thickness variation.
• CSA magnetic switch
• Door safety limit switch with 3″ long screw

Cutting capacity (thickness x width) 2″ x 12″, 3″ x 11″, 4″ x 10″

Cycle speed 45 strokes/minCycle operation

AirSaw blade size (optional)

18″Saw arbor

diameter1″

Saw blade speed3600 RPM

Dust exhaust diameterØ4″ (100mm)Motor

10 HPTable size26” x 27 ½” (660 x 700 mm)

Net weight770 lbs. (350 kgs)

Gross weight902 lbs. (410 kgs)

Packing dimensions (L x W x H)37” x 33 ½” x 53.2” (940 x 850 x 1350mm)
