2000 Finger Jointer FJNOVS16

2000 Finger Jointer FJNOVS16

$52,000 call for details

Grand Rapids, MI

orCall 616-308-9800

Description

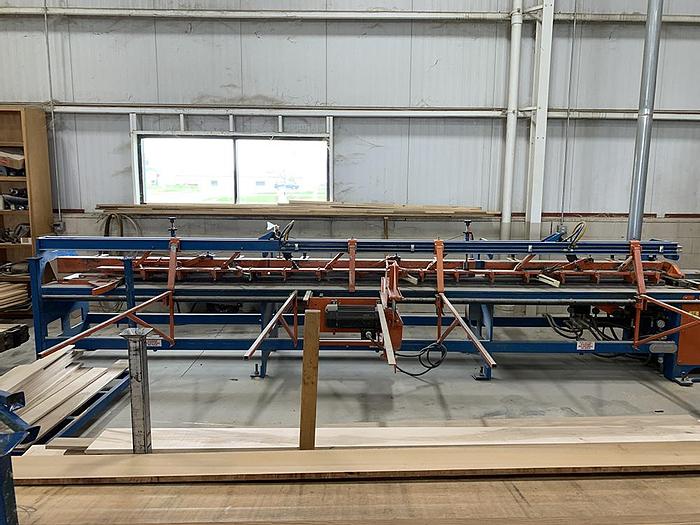

Western Pneumatic Finger Jointer FJ- is a medium production machine.


Included in this price is a Model 200 Semi-Auto knife grinder



The profile machine is designed to cut horizontal fingers in stock laying flat on the

board lug chains.



Production in-feed parameters are as follows;

Board Thickness    5/8" minimum  2" maximum

Board Width        1-1/2"minimum  6" maximum

Board Lengths         4" Minimum  28" maximum

Board Thickness Tolerance plus or minus 1/16"

Board Width Tolerance plus or minus 1/16"

Finish Board Length  16ft



Note: Material must be without crook, twist, or cup to insure proper joint quality

and assembly.



Narrow chain ( 2" ) wide links.

Dual head finger jointer.

(2) 5 hp. trim saw motors with carbide tip saw blades.

(2) 3 hp. score saws with carbide-tipped saw blades.

(2) 15 hp. cutter head motors.

Variable speed electric drive at 30 to 60 feet per minute.

Single chain with lugs on 12" centers.

60 ft. per minute on 12" centers equals 60 lugs per minute.

One Apquip glue system with 12-gallon glue tank, one applicator head, and clean-up tank.



Manual corner transfer assembly.



Medium Production Rapid Stop & Cut Assembly Section.

Air cylinder operated hold down.



Assembly Infeed conveyor with traveling fence.



Heavy duty electric assembly machine with powered top and bottom feed rolls and pressure shoe.

Powered side alignment rolls.

Variable feed speed up to 185 ft. per minute based on 16ft. cut off length.



Heavy duty cut off saw with 7-1/2 hp motor, carbide tipped saw blade.

16 ft. board press.

Hydraulic squeeze, rapid stop and cut and rack and pinion ejector.



One fully assembled, tested and operational hydraulic power unit complete, motors,

pumps, reservoir, oil cooler and filtration.



Motor Control Center with Programmable Logic Controller.

480V, 60 Hz, 3 phase 146 Full Amp Load

Specifications

ManufacturerFinger Jointer
ModelFJNOVS16
Year2000
ConditionUsed
